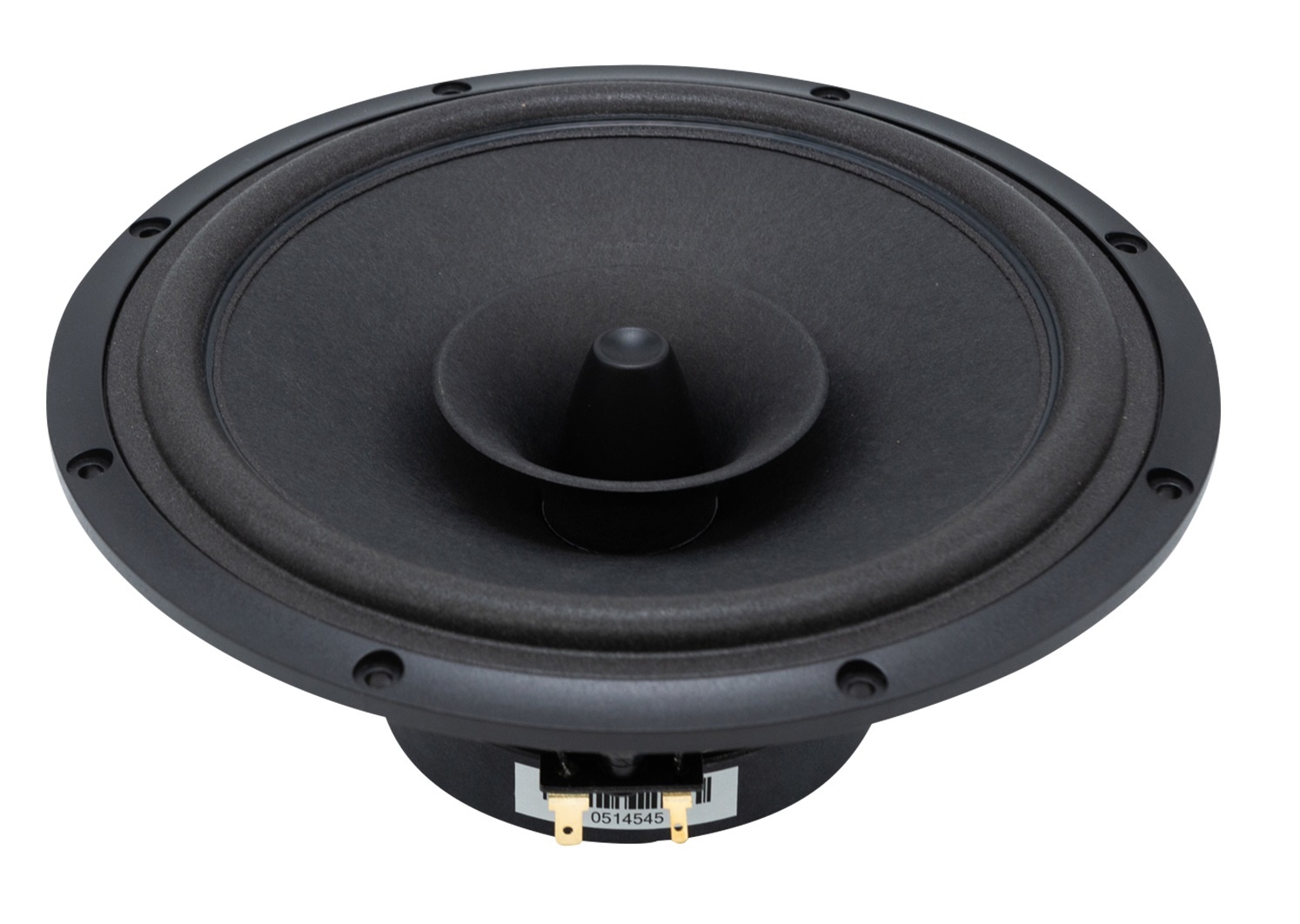

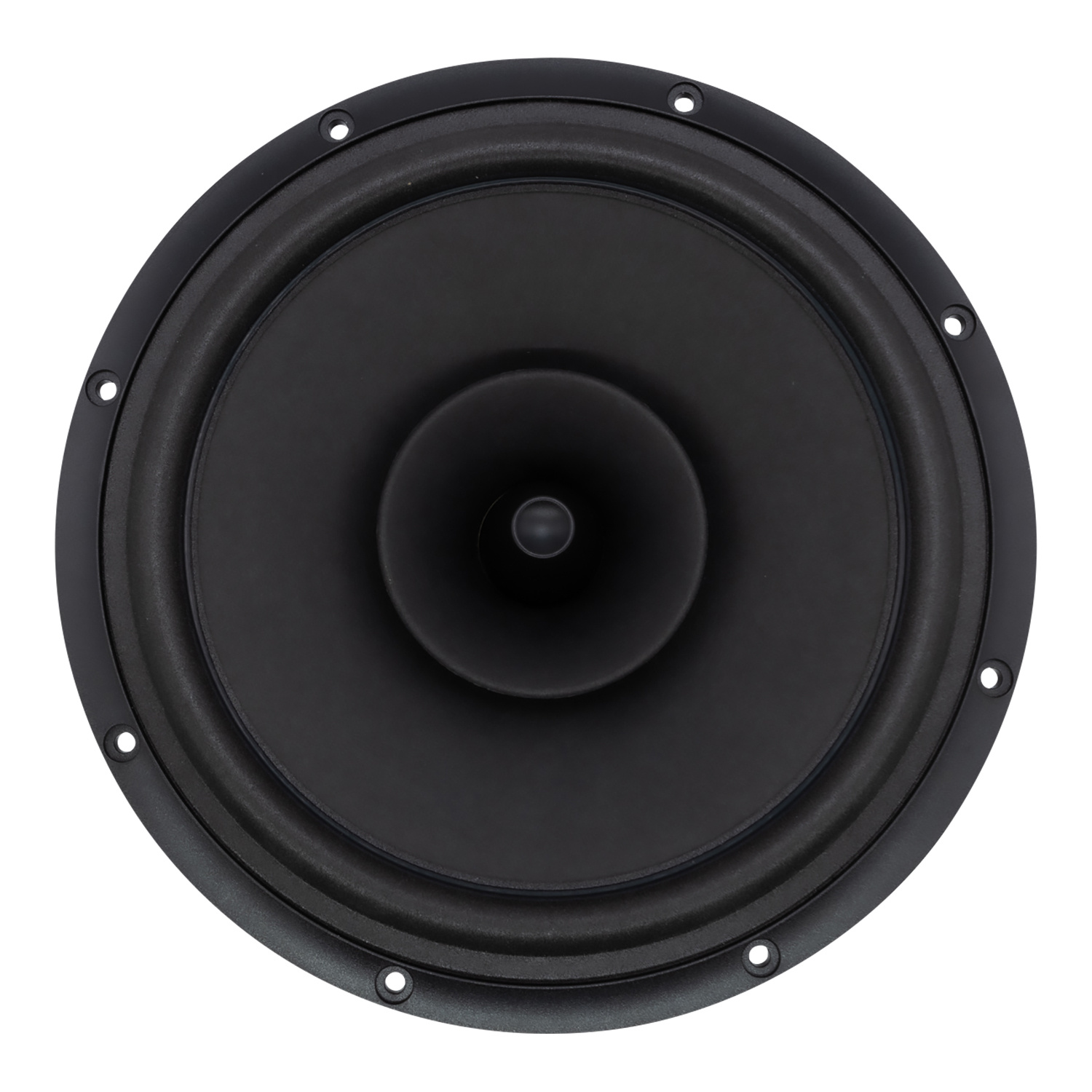

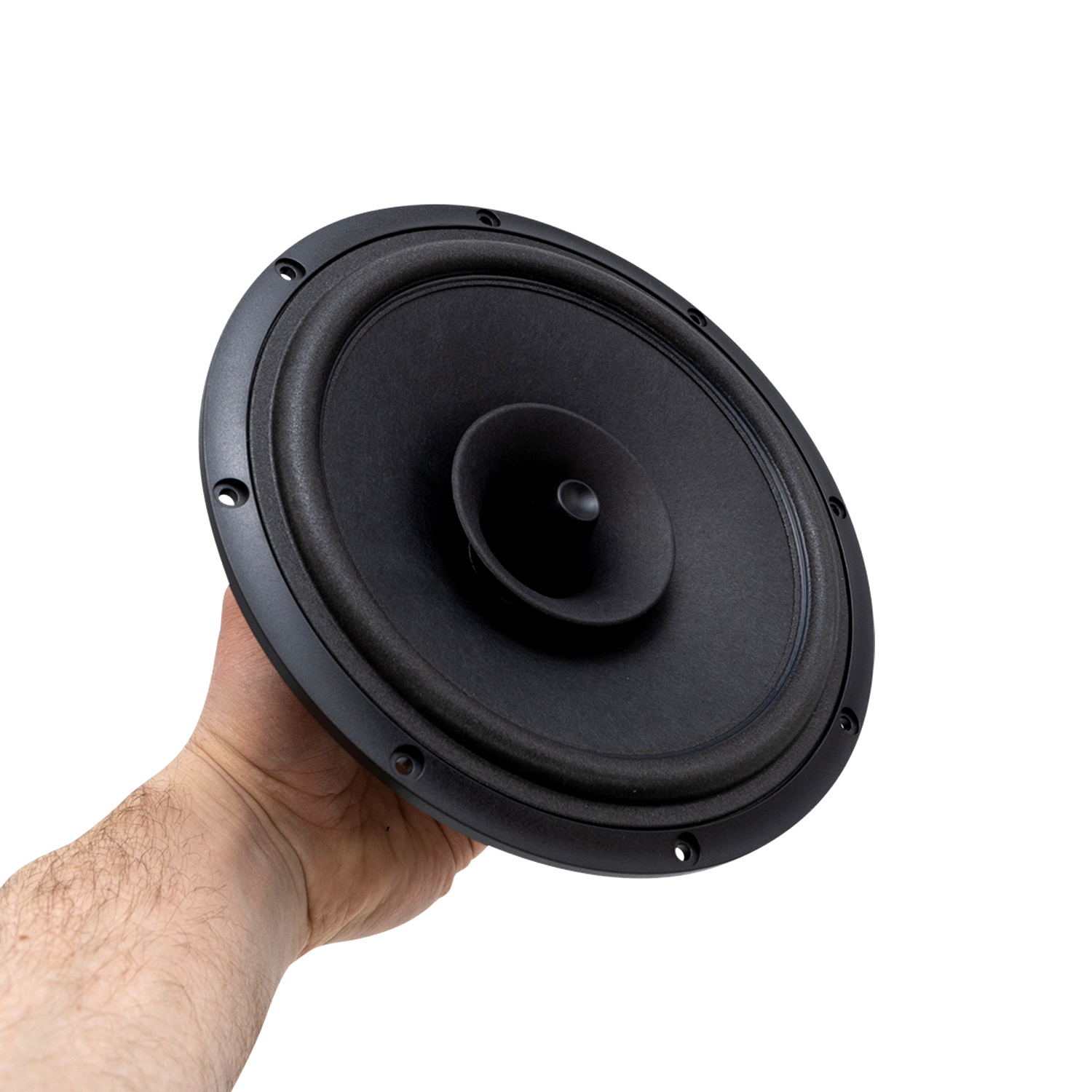

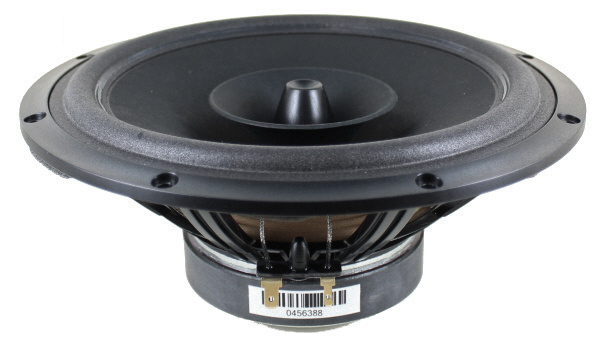

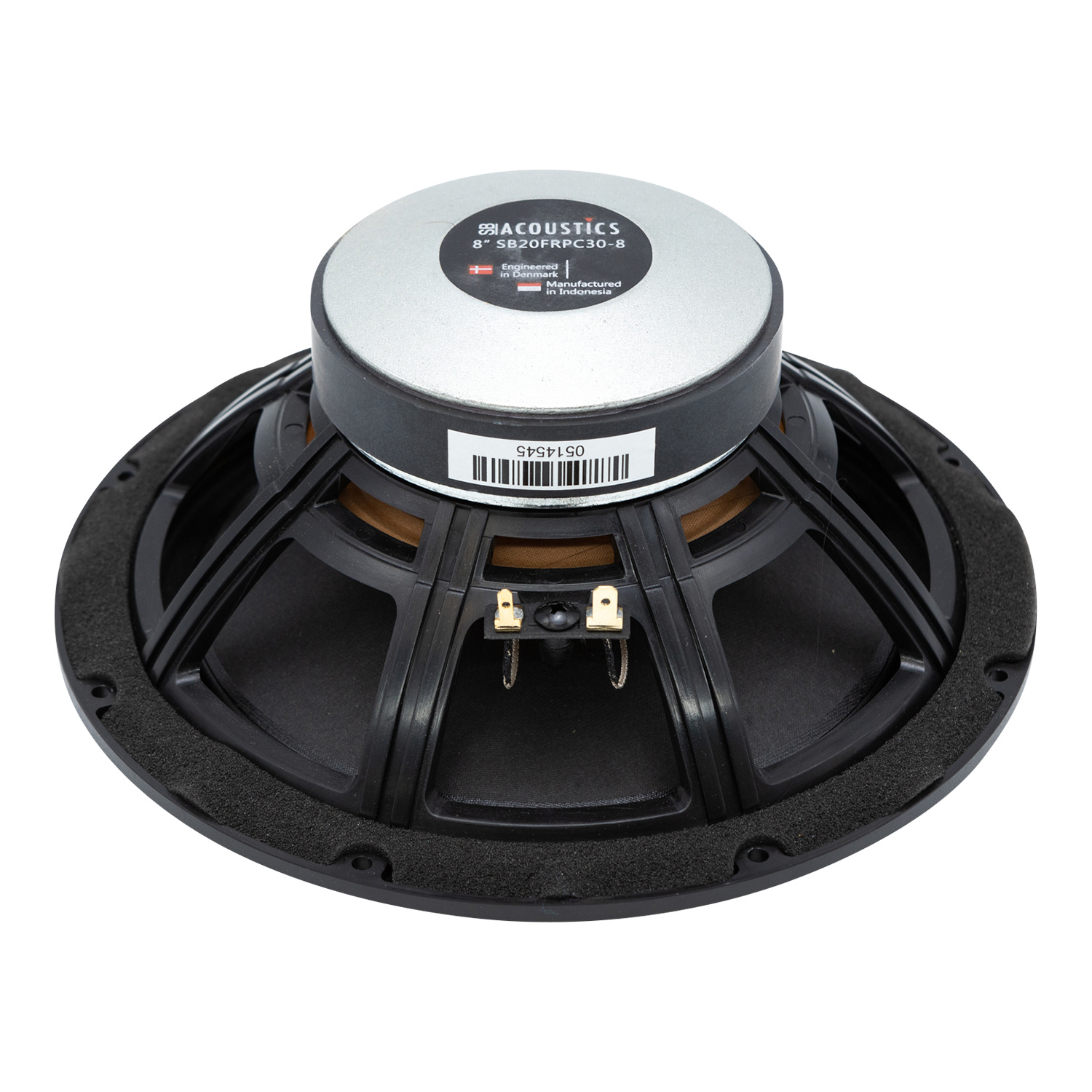

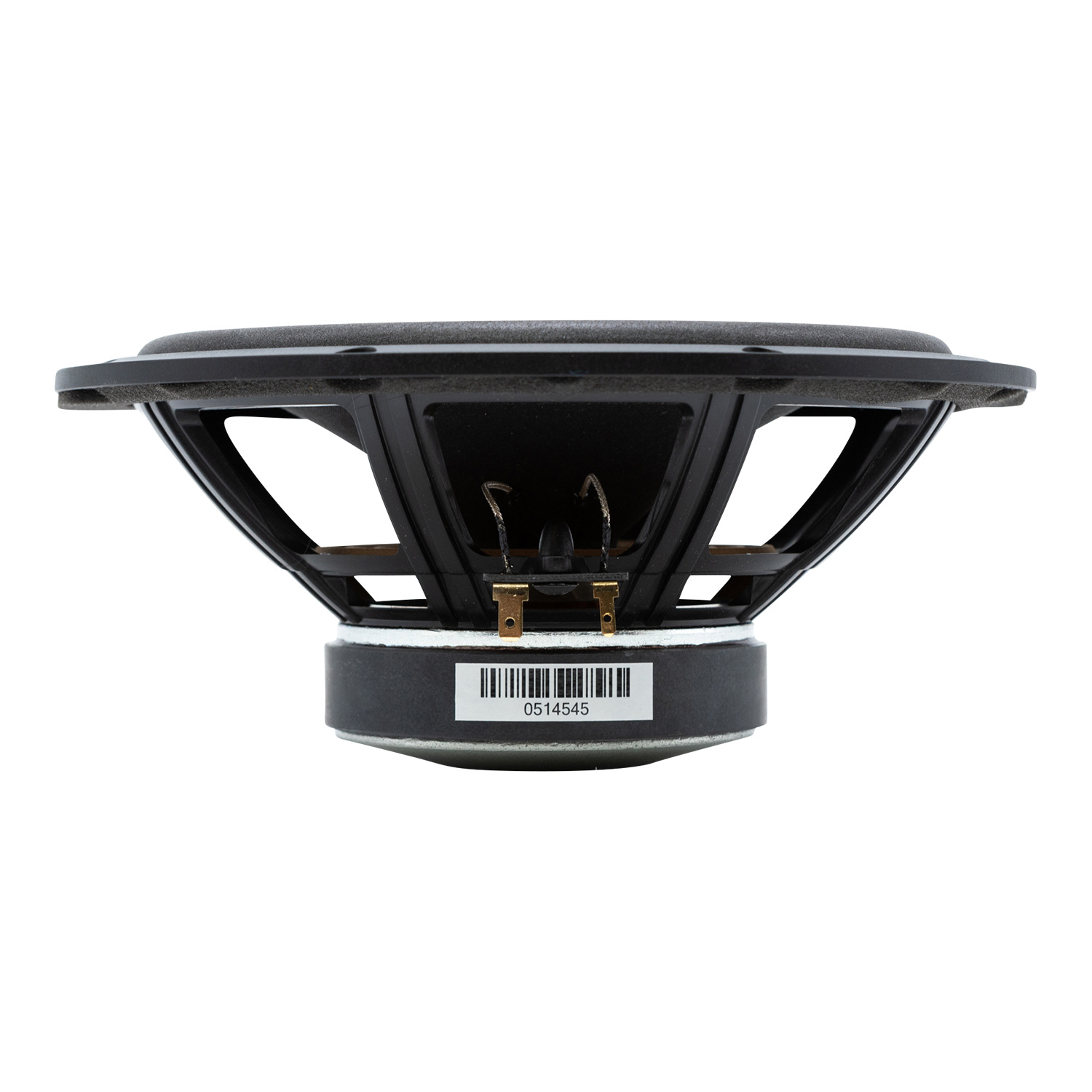

SB Acoustics SB20FRPC30-8 8" Paper Cone Full-range driver

€52,45

10+ Op voorraad

Toevoegen aan winkelwagen

SB Acoustics SB20FRPC30-8 8" Paper Cone Full-range driver

17 reviews

Merk: SB Acoustics

Toon alle Full-range woofer

8" | 8 Ω NEW

SB20FRPC30-8 8" Paper Cone Full-range driver

€ 52,⁴⁵ 10+ Op voorraad

Gratis verzending vanaf € 99
Nu besteld, dinsdag bezorgd
Ten minste twee jaar garantie
45 dagen bedenktijd voor retourneren

Klantbeoordeling:

Vergelijk

Zakelijke offerteaanvraag

Productomschrijving SB Acoustics SB20FRPC30-8 Full-range Woofer

Highlights

Proprietary cone material with natural fibers made in-house
Light weight foam surround
Optimized whizzer cone for smooth high frequency extension
Phase plug for controlled radiation
Large spider for improved linearity
Optimized motor system
Vented reinforced plastic chassis
Non-conductive coil former
Extended copper sleeve on pole piece
Long life silver lead wires

Product details

SB Acoustics SB20FRPC30-8 8” Full-range Paper Cone Driver

Using a cone proprietary paper blend cone made in house this woofer delivers good midd/bass response. Which is extended by the use of a optimized “whizzer” cone. This is supplemented by the use of a phase cone to better radiate the high frequency output. The paper blend cone is made in-house to insure quality control. This makes this a good “bang for the buck” full range driver.

Specificaties

Artikelnummer: SB20FRPC30-8
EAN: 8785256842131
Woofer type: Full-range
Nominale diameter: 8''
Belastbaarheid (RMS): 50 Watts
Impedantie (Z): 8 Ohms
Gevoeligheid (SPL bij 1m / 2.83V): 92 dB
Spreekspoeldiameter: 30.5 mm
Gewicht magneet: 0.54 kg
Gelijkstroomweerstand (Re): 5.6 Ohms
Spreekspoelinductie (Le): 0.30 mH
Resonantiefrequentie (Fs): 39.4 Hz
Mechanische Q (Qms): 3.26
Elektrische Q (Qes): 0.45
Totale Q (Qts): 0.40
Bewegende massa (Mms): 14.7 g
Compliantie van de ophanging (Cms): 1.12mm/N
Equivalentvolume (Vas): 66.3 liters
Maximale excursie (Xmax): 5.65 mm
Driver's Mechanical Losses (Rms): 1.1 kg/s
Cone / Diaphragm Material: Paper
Surroundmateriaal: Foam
Spreekspoel draadmateriaal: Copper
Mand- /framemateriaal: Plastic
Magneetmateriaal: Ferrite
# Bevestigingsgaten: 8

Toon meer

Reviews

17 reviews

Schrijf een review

5 van 5

Amazing speakers. Easy to drive, very good clarity, reasonable bass extension.

Door Catalin on 28 Januari 2025

4 van 5

I don't have enough experience with other full range drivers to compare it to. But it's a great sounding driver for the price. I have it mounted in a 70l ported enclosure, and while the low bass is lacking. With some wide-band equalization (no crossover used) the sound is enjoyable and natural.

Door Fredrik on 27 Januari 2025

5 van 5

Ware genau wie beschrieben und gut verpackt. Sehr schneller Versand. So soll es sein!

Door Stephan on 5 November 2024

5 van 5

Hard to beat with that price. I installed them in wall with ported enclosure 120*63*11 for home cinema and I can't believe how quality and balanced sound they produce.

Door Αθανάσιος on 21 Oktober 2024

5 van 5

Door Jeroen on 6 Oktober 2024

5 van 5

Door Anton on 18 Juni 2024

5 van 5

Door IOANNIS on 13 April 2024

5 van 5

Een prachtig resultaat in de Fostex bk 201 hoorn. Zeer aan te raden!

Door Sander on 4 December 2023

5 van 5

Excellent budget full range speakers. my projecнt in TQWT https://m.facebook.com/groups/DIYLoudspeakerProjecPad/permalink/2171890559833436/

Door Volodymyr Karpovich on 26 Oktober 2023

5 van 5

I bought 2 items to My horn-enclosures (80 liters) Voigt-horn, and they sound perfect

Door Bjarne Volsmann on 14 Juli 2023

5 van 5

Door Tas on 5 Juli 2023

5 van 5

Really good full range driver used as a surround back channel. Still experimenting with box size but nice full sound. At the price I have no complaints.

Door Daniel on 18 Mei 2023

5 van 5

The best 8-inch full range driver I have ever had so far! (and I had quite a few already)

Door Peter on 15 Mei 2023

5 van 5

Door Valerijus on 8 Mei 2023

3 van 5

Voor de prijs is het een goede driver, maar ik had er meer van verwacht.

Door Jan on 12 April 2023

5 van 5

Excellent product, can only very highly recommend it!! Please see here the project details: https://audiosciencereview.com/forum/index.php?threads/sb20frpc30-8-based-rear-speaker-project.41687/

Door Peter Pataki on 5 Maart 2023

5 van 5

Haven't had the opportunity to really test the driver yet, but ordering and delivery was very good. I had a request about my order and it was dealt with very efficiently. Highly recommend this shop.

Door KaffiMann on 15 Juli 2022
