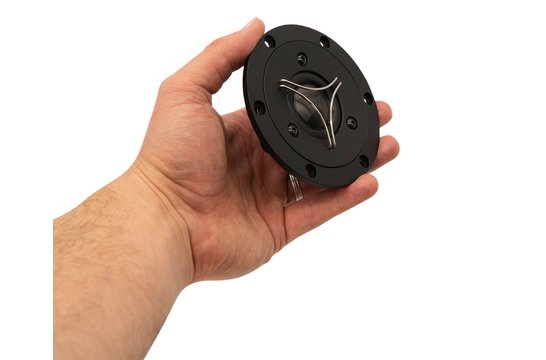

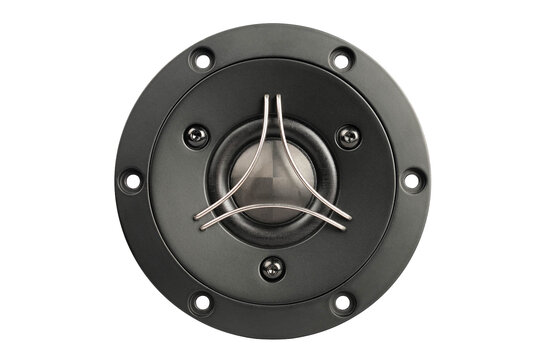

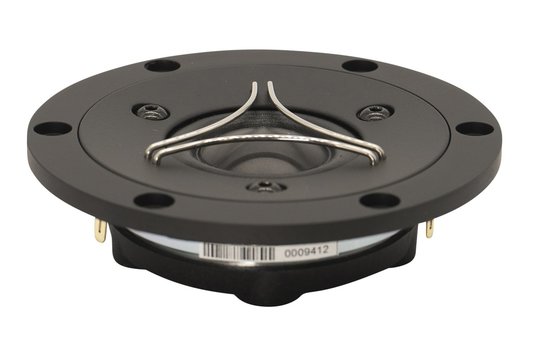

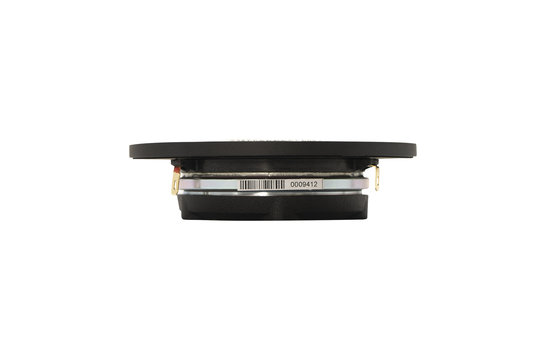

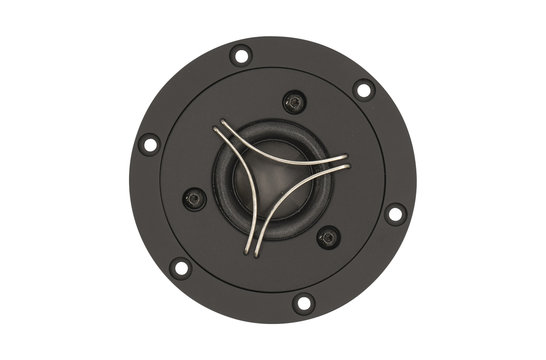

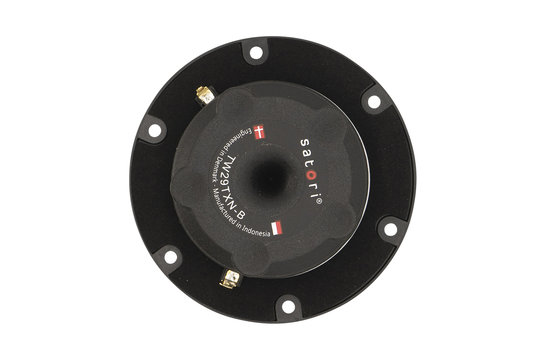

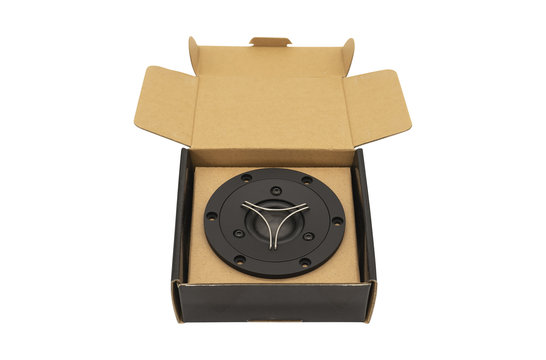

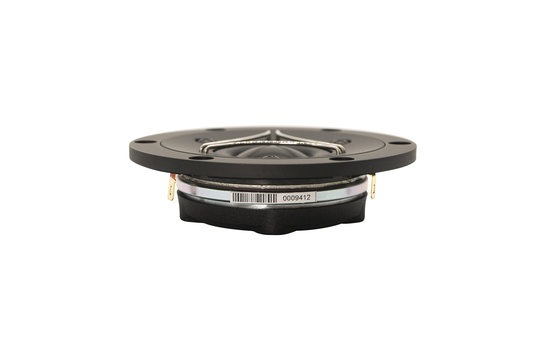

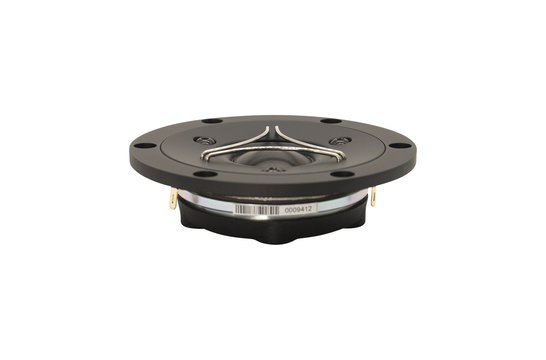

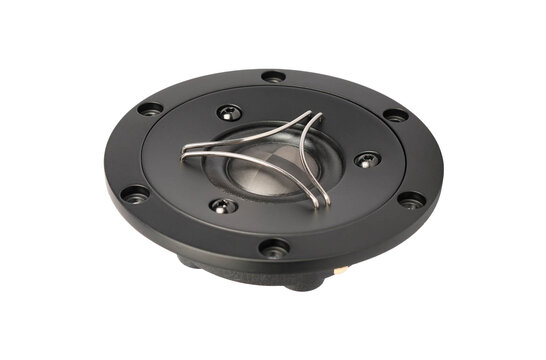

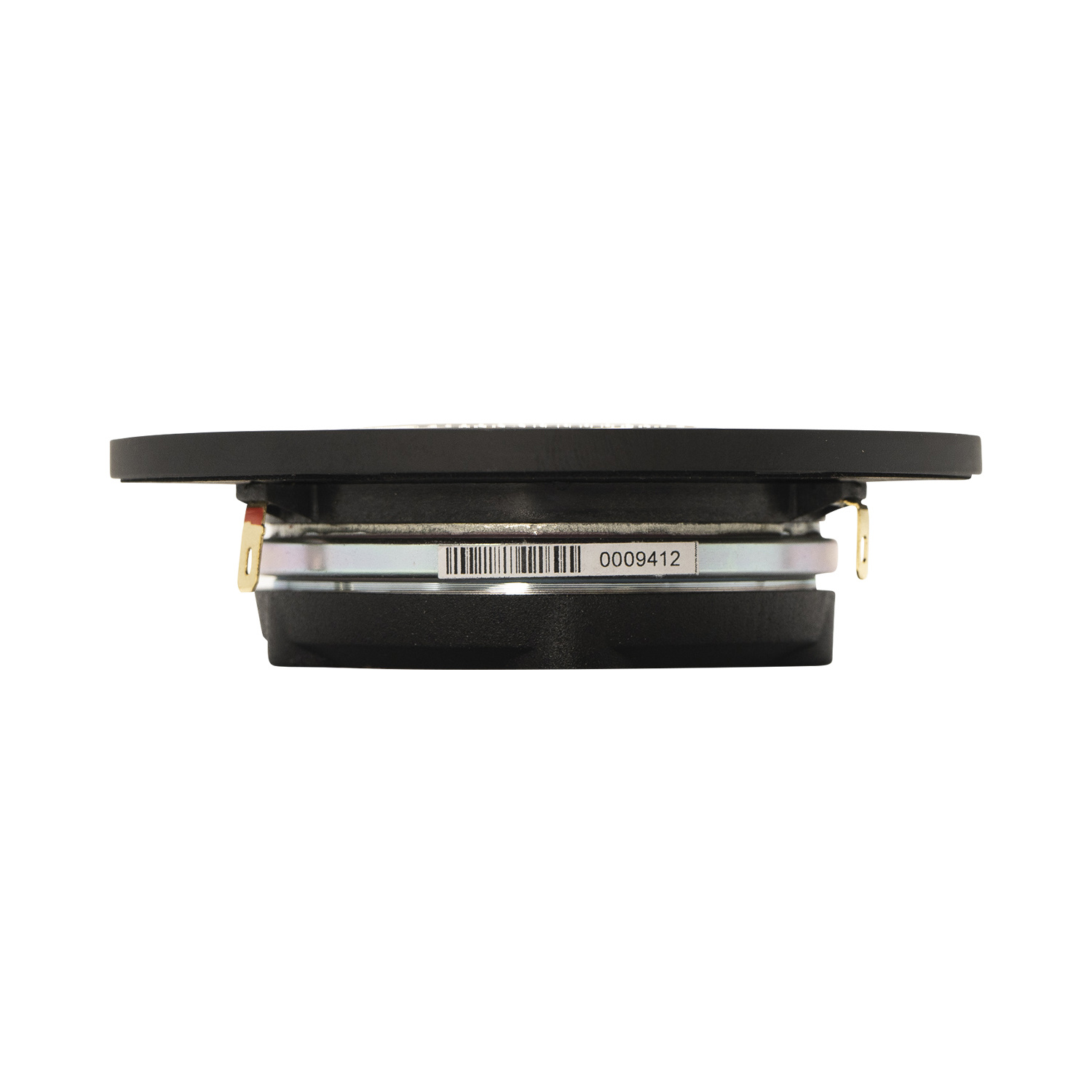

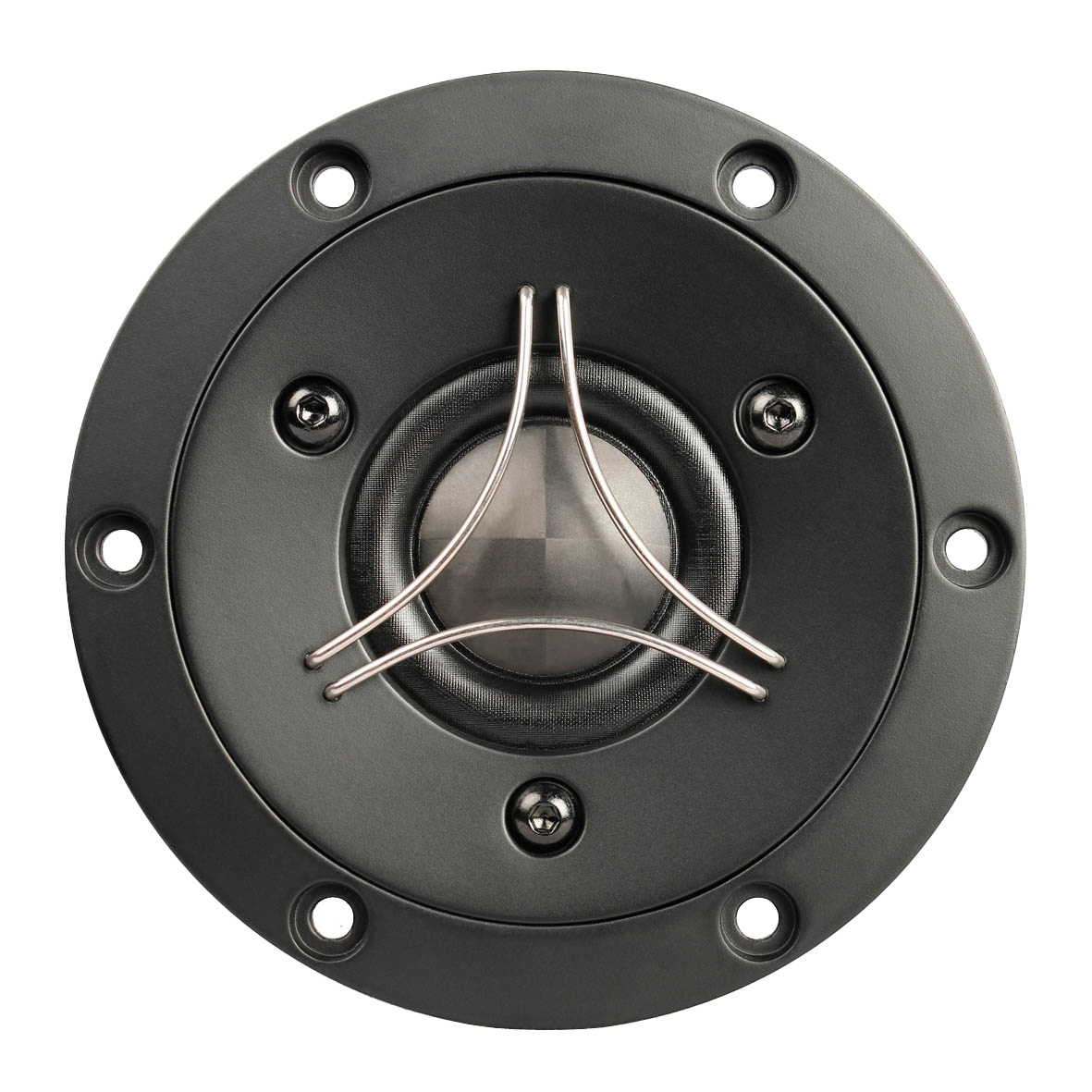

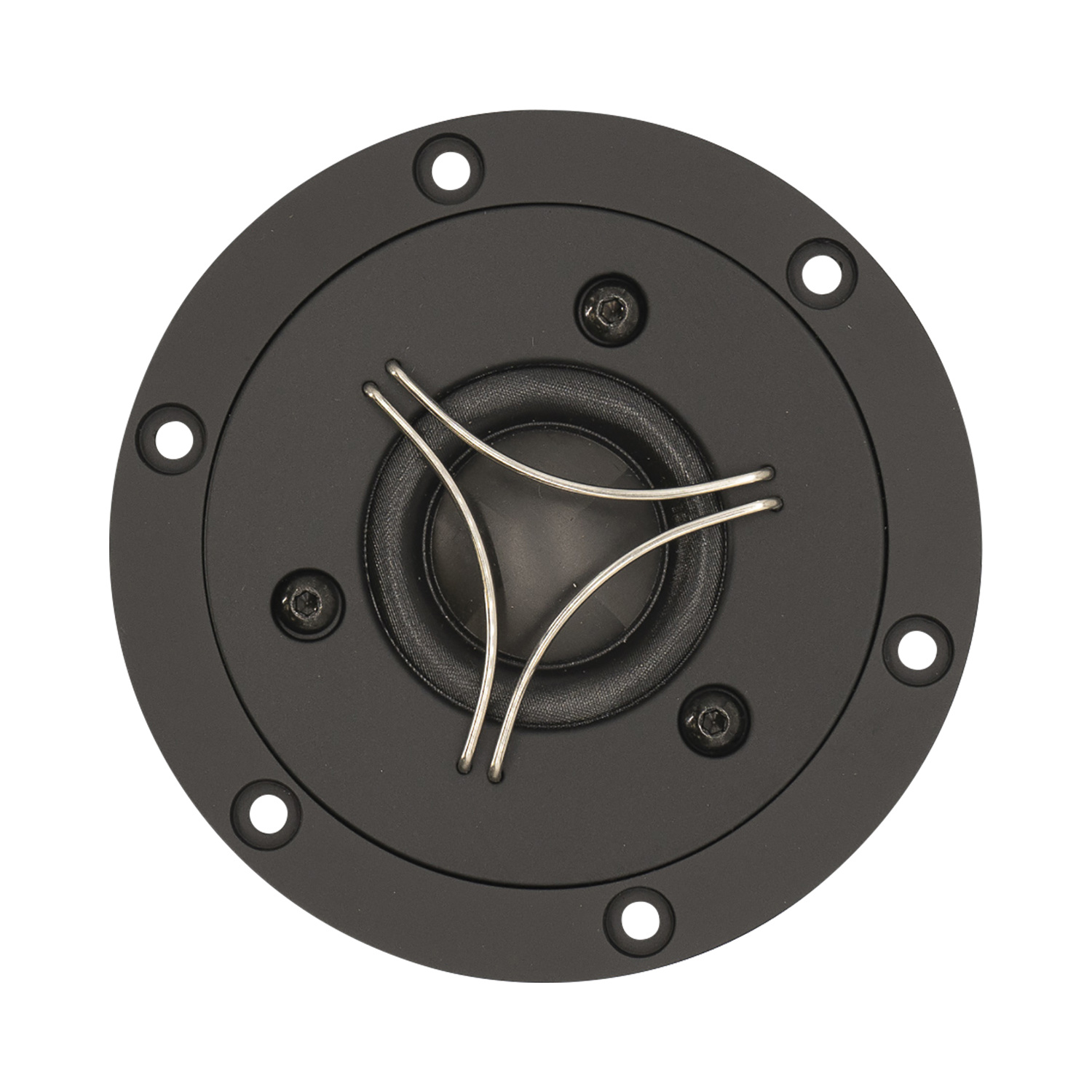

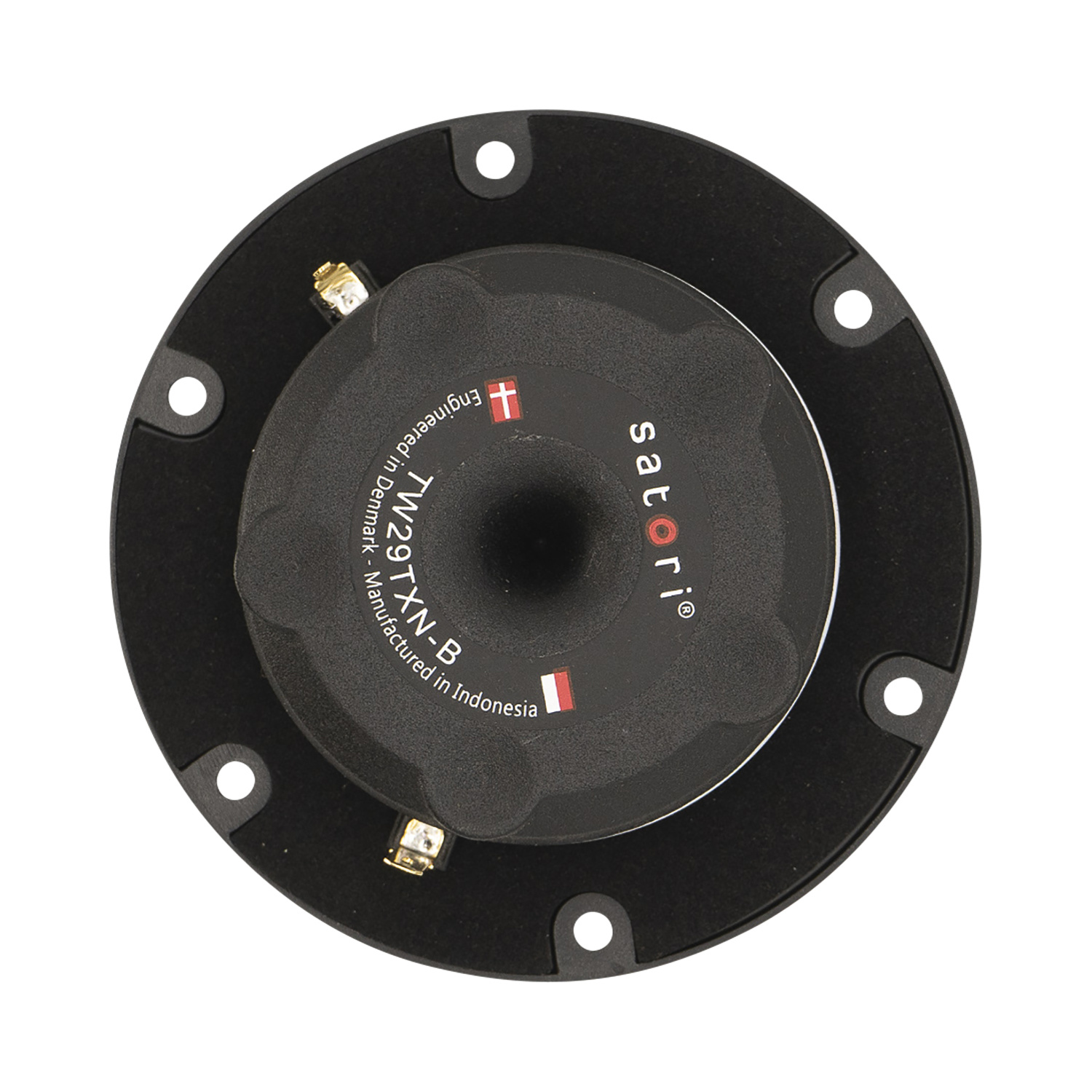

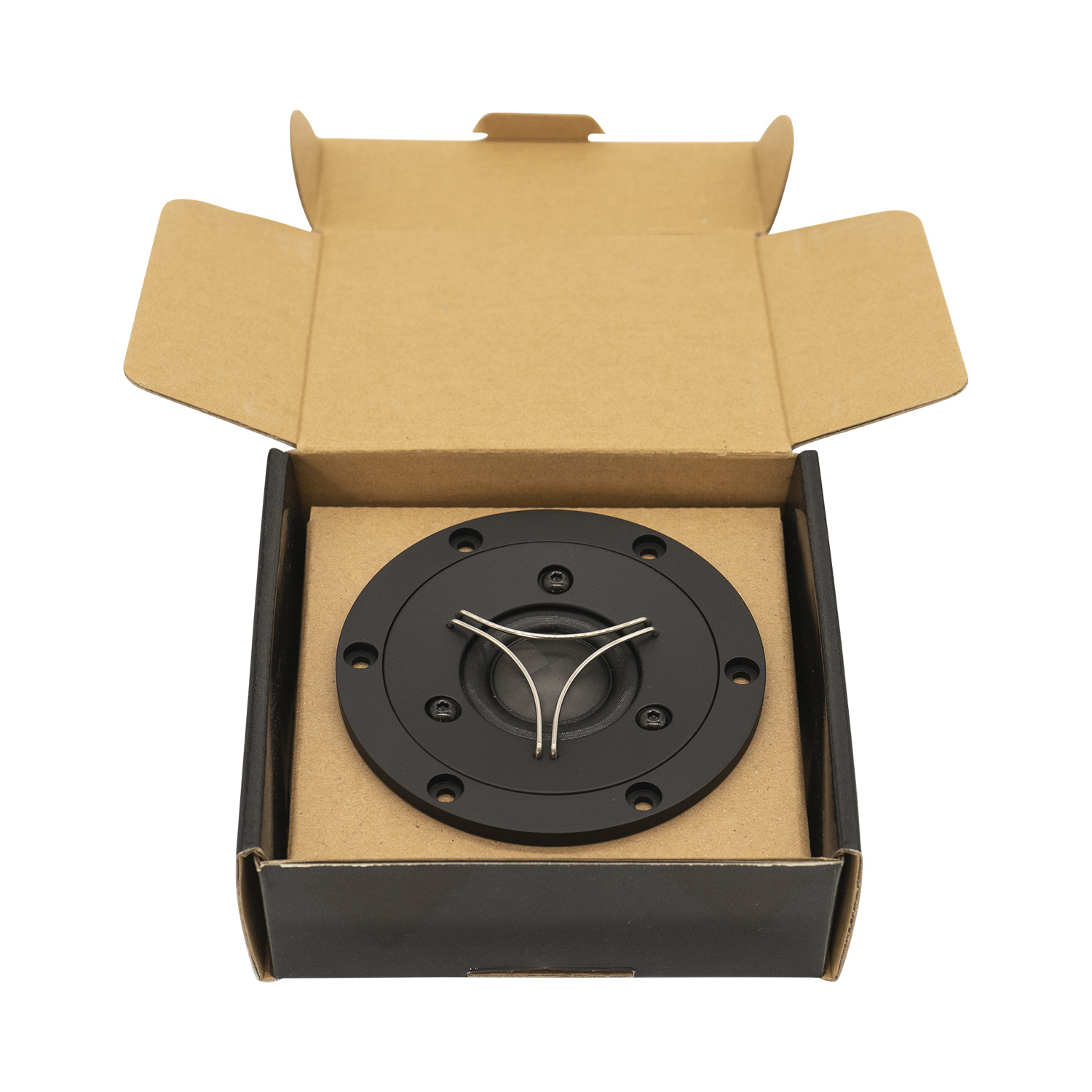

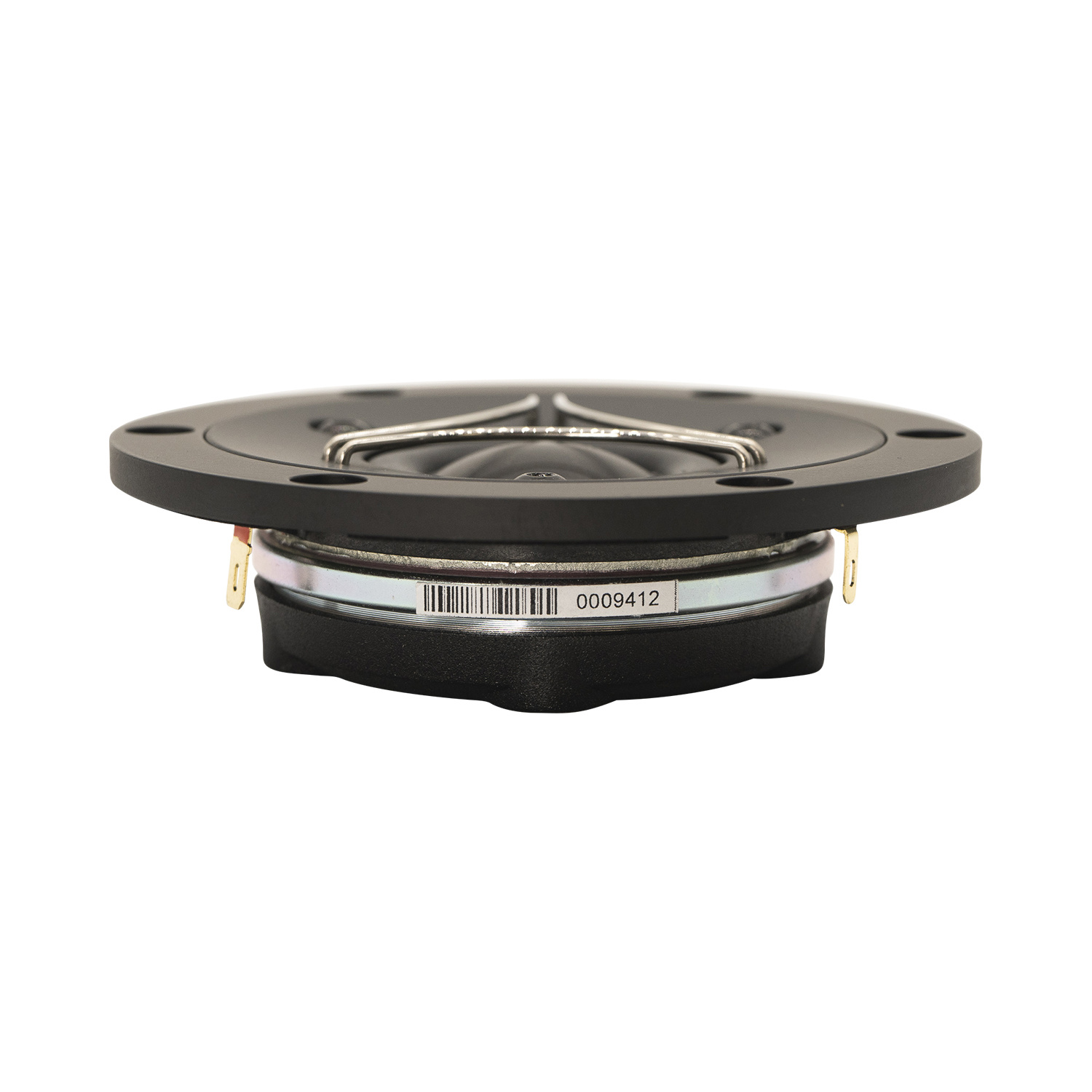

        Satori TW29TXN-B TeXtreme DomeTweeter

        SB Acoustics Satori TW29TXN-B TeXtreme DomeTweeter

        €264,95

        10+ Op voorraad

        Toevoegen aan winkelwagen

        SB Acoustics Satori TW29TXN-B TeXtreme DomeTweeter

        2 reviews
        5 van 5
        2 reviews
        5 sterren
        100%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: SB Acoustics
        Toon alle SB Acoustics tweeters
        1⅛" | 4 Ω
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        € 218,97€ 264,95 10+ Op voorraad
        • -5% Bestel 4 voor slechts € 251,70 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Voor 16u besteld, vandaag verstuurd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter
        Satori TW29TXN-B TeXtreme DomeTweeter

        Productomschrijving SB Acoustics Satori TW29TXN-B TeXtreme Dome Tweeter

        Highlights

        • Advanced TeXtreme dome
        • Two part alumimium faceplate with integrated mechanical decoupling
        • Dual balanced compression chambers for improved dynamics
        • Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
        • High saturation neodymium motor system with T-shaped pole piece for lower distortion
        • Non-reflective cast aluminium chamber with optimized damping for improved dynamics
        • Shallow flow optimized magnet structure for optimum coupling tot rear chamber
        • CCAW voice coil for low moving mass
        • Long life silver lead wires
        • Low resonance frequency for extended range



        Product details

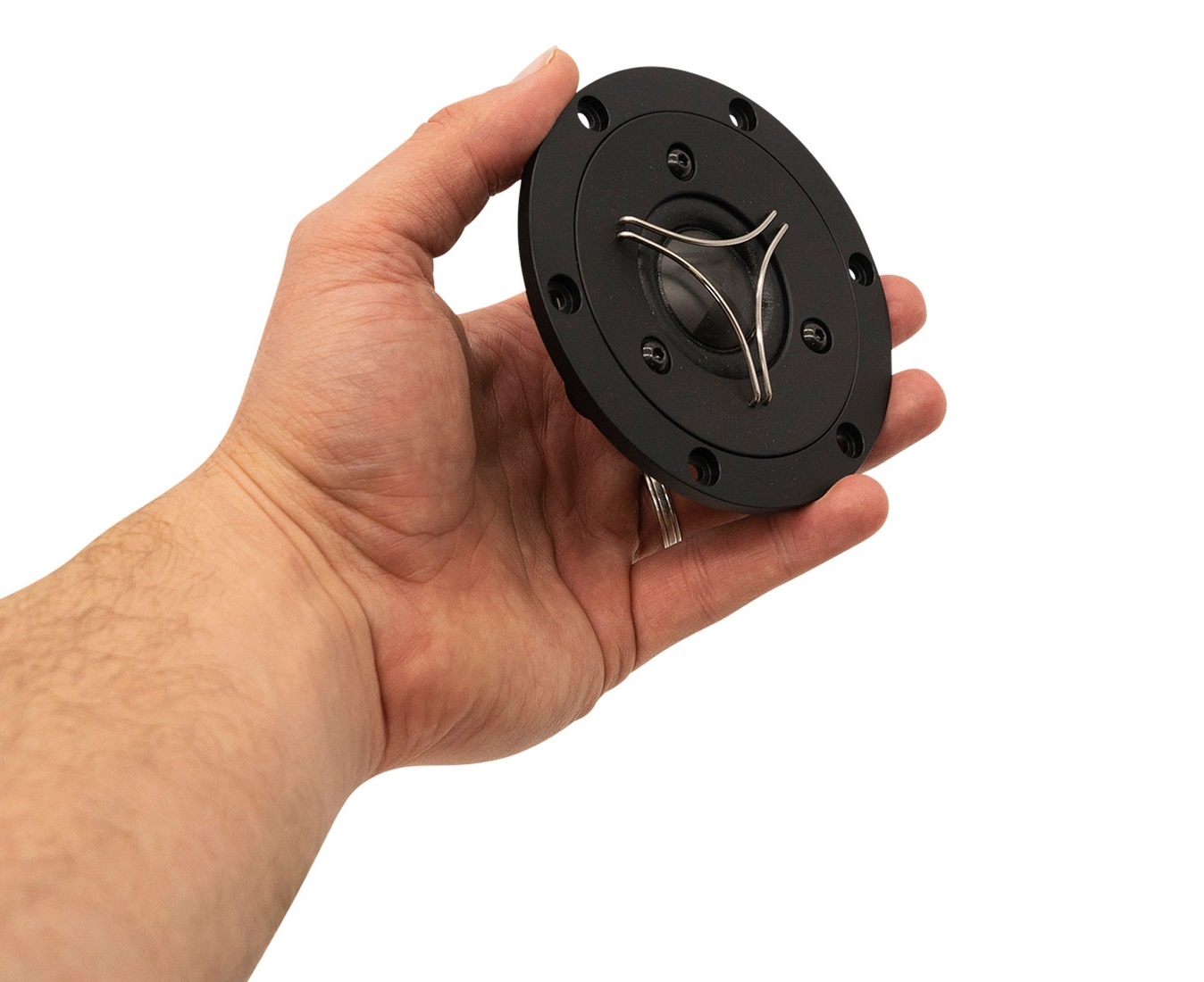

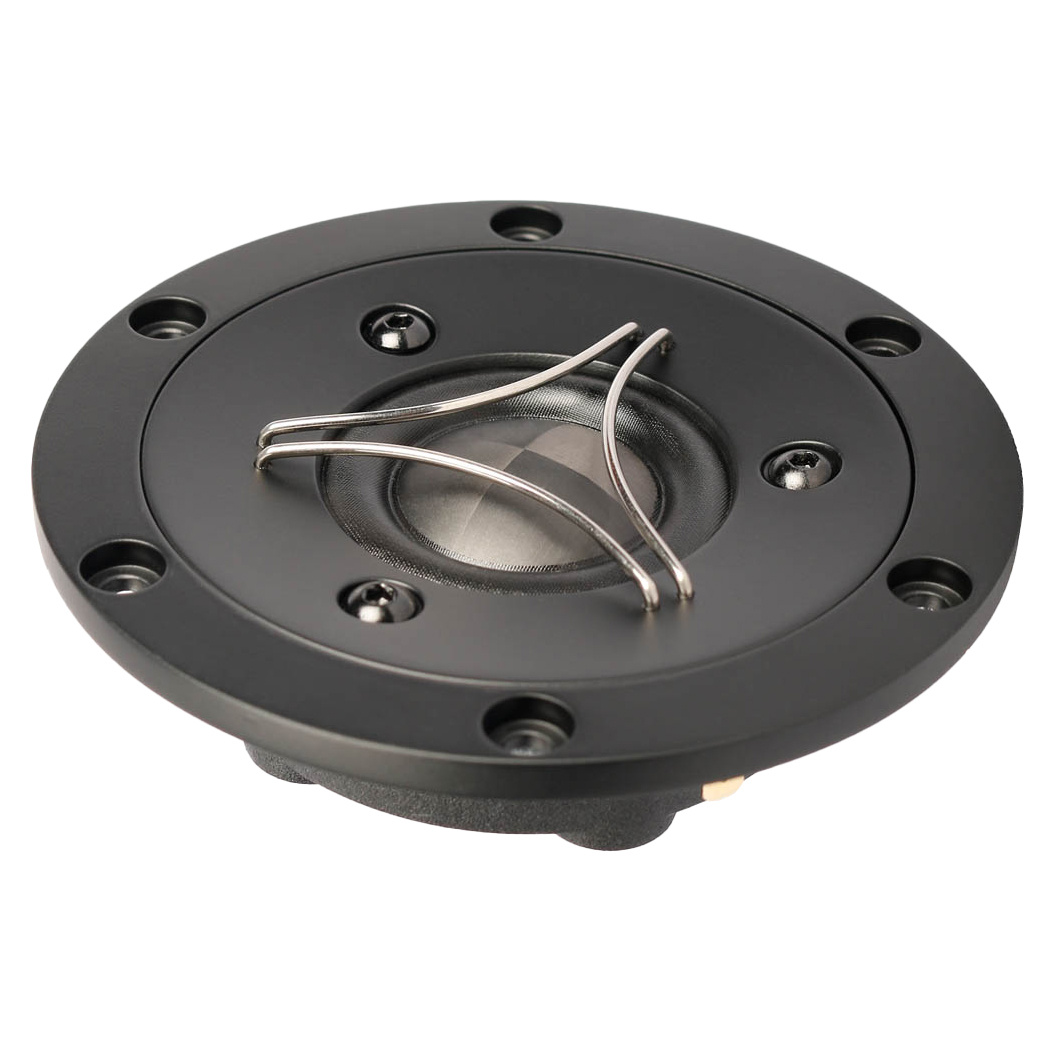

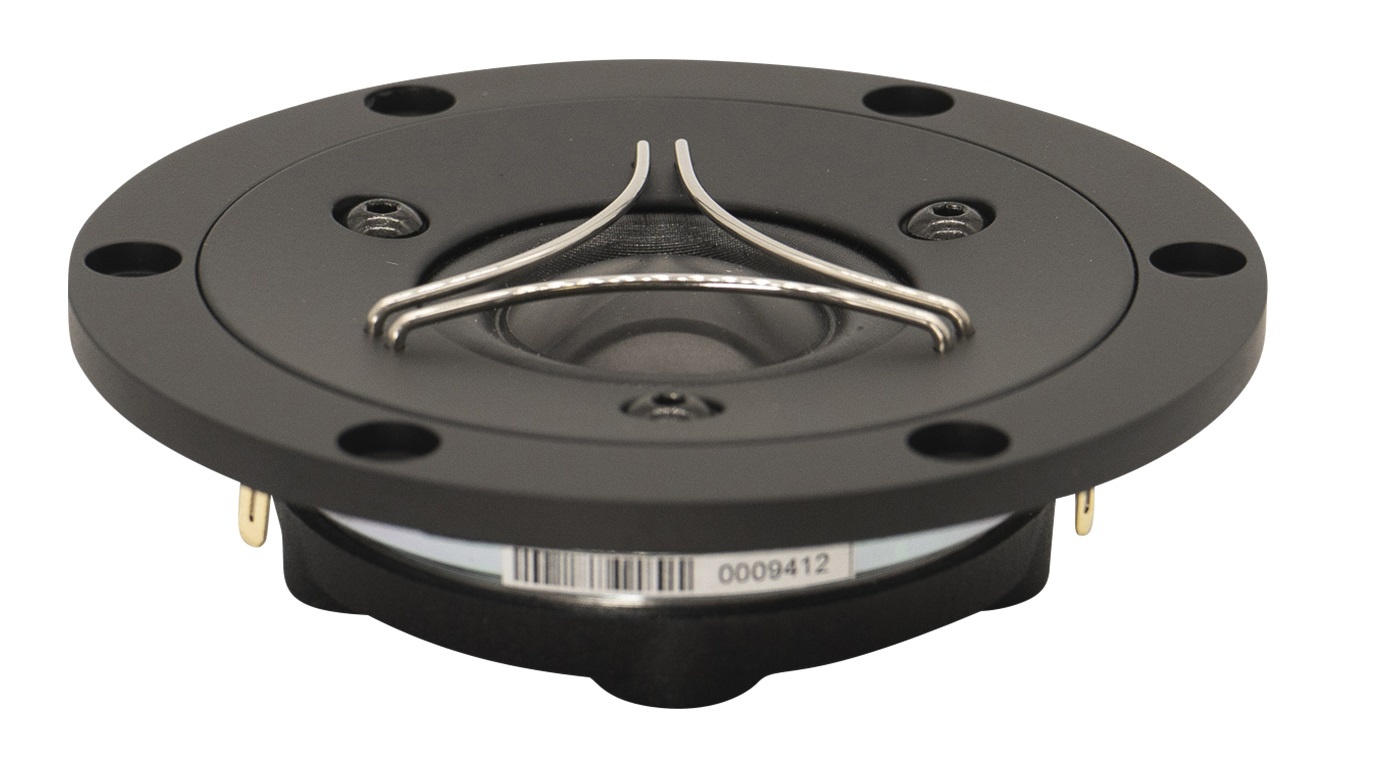

        SB Acoustics SATORI TW29TXN-B TeXtreme Dome Tweeter



        TeXtreme is a special carbon fiber material, that uses Spread Tow technology to create extremely thin laminar carbon fiber tapes. This minimizes the weight of the material without sacrificing strength. The use of TeXtreme as a dome material allows for a very stiff and lightweight dome. Combined with a copper coated aluminium wire voice coil makes this a smaller moving mass. The added benefit of the Textreme material is its strength to weight ratio. Allowing for a efficient driver that doesn’t distort easily because it maintains optimum pistonic motion for longer.



        But new fancy materials mean nothing if they are not combined with a quality design. Which SB-acoustic offers with its SATORI line of product. Creating a unique low-distortion high efficiency driver.

        Toon meer

        Specificaties

        Artikelnummer
        TW29TXN-B
        EAN
        8785256837618
        Tweeter type
        Dome
        Tweeter serie
        SATORI
        Cone / Dome Diameter
        25 mm | 1"
        Belastbaarheid (RMS)
        80 Watts
        Impedantie (Z)
        4 Ω
        Gevoeligheid (SPL bij 1m / 2.83V)
        96 dB
        Resonantiefrequentie (Fs)
        650 Hz
        Gelijstroomweerstand (Re)
        3.0 Ohms
        Mechanische Q (Qms)
        1.62
        Electromagnetic Q (Qes)
        0.65
        Totale Q (Qts)
        0.46

        Toon meer

        Reviews

        2 reviews
        Schrijf een review
        5 van 5
        I haven't had time to test them yet, but I assume they are as good as their reputation - especially the caviar cone and it's stratospherical properties. + Expectation enhancing ...

        Toon meer

        Door Aila Woudiver on 25 Februari 2022
        5 van 5
        Brilliant tweeters. Smooth, silky, transparent, detailed. All tweeters should be at least as good as this. Most are not.
        Door Master Kenjit on 19 December 2020
