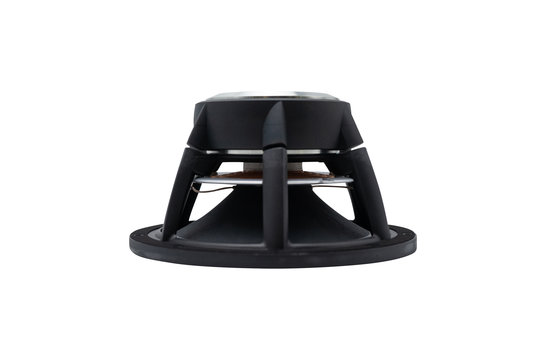

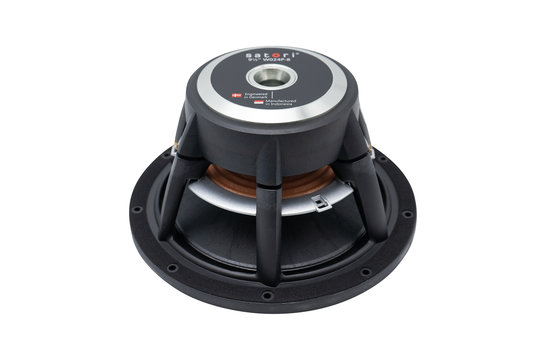

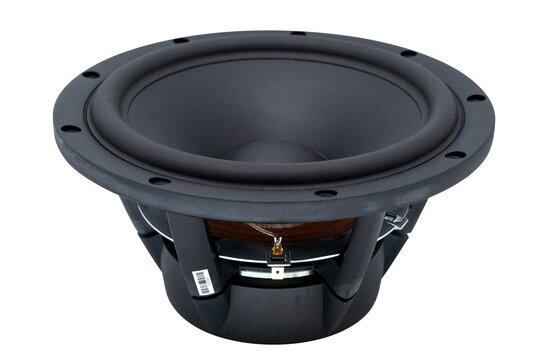

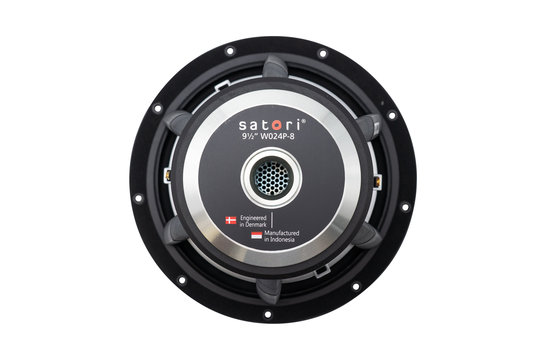

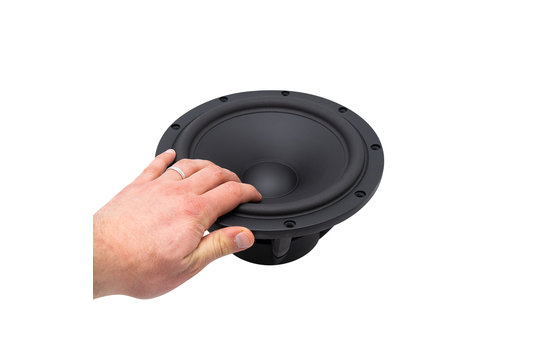

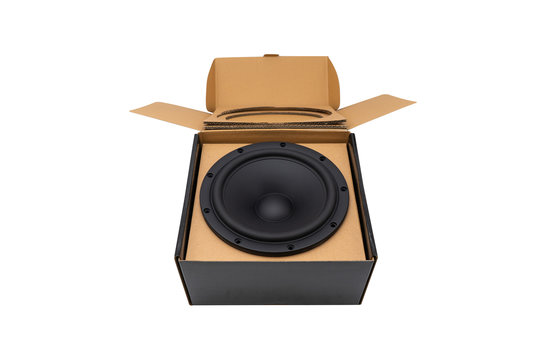

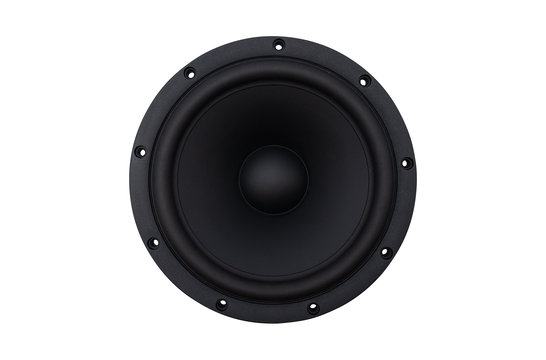

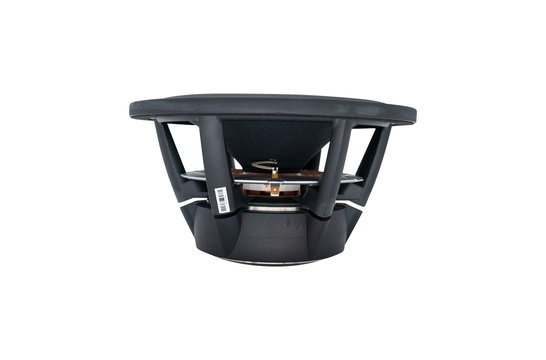

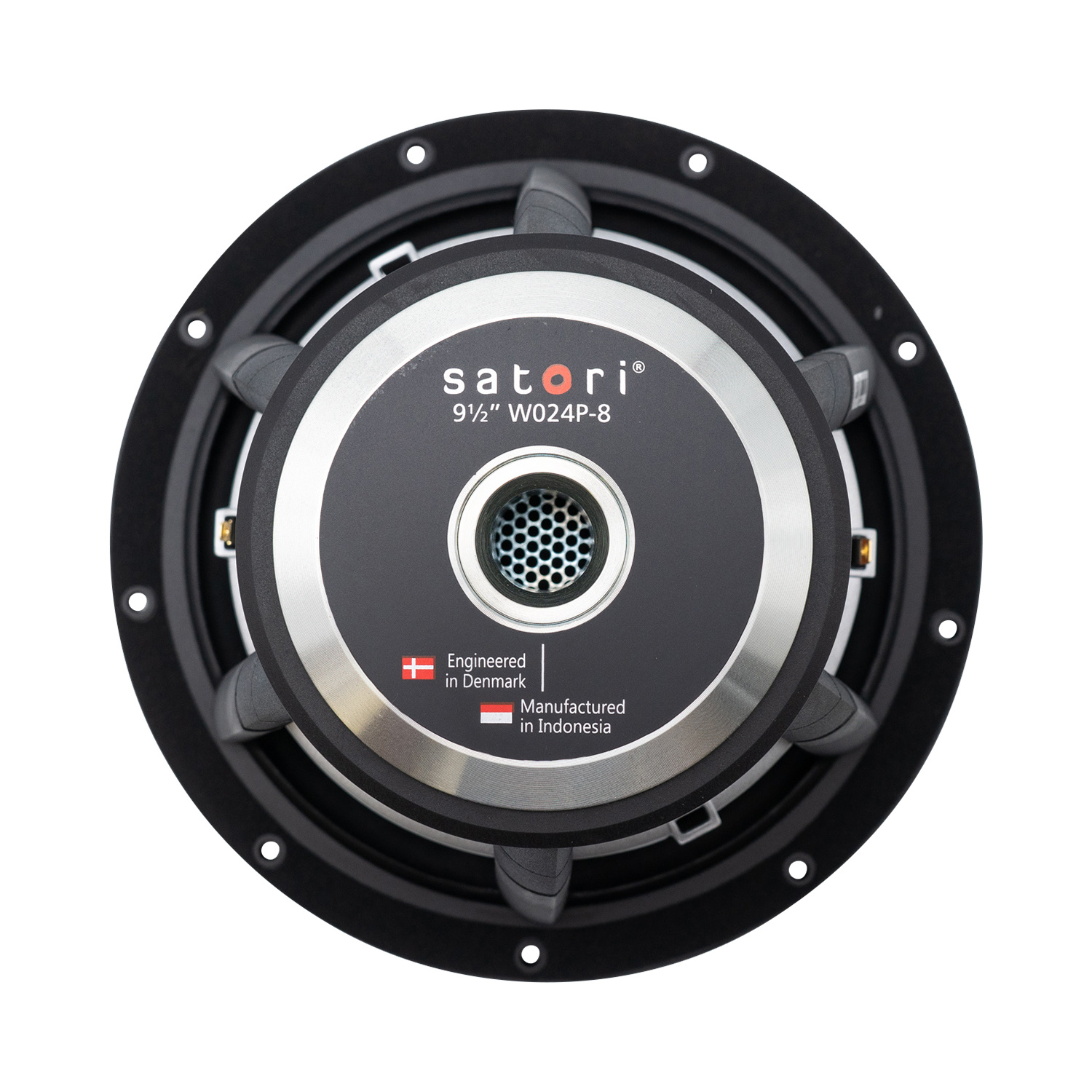

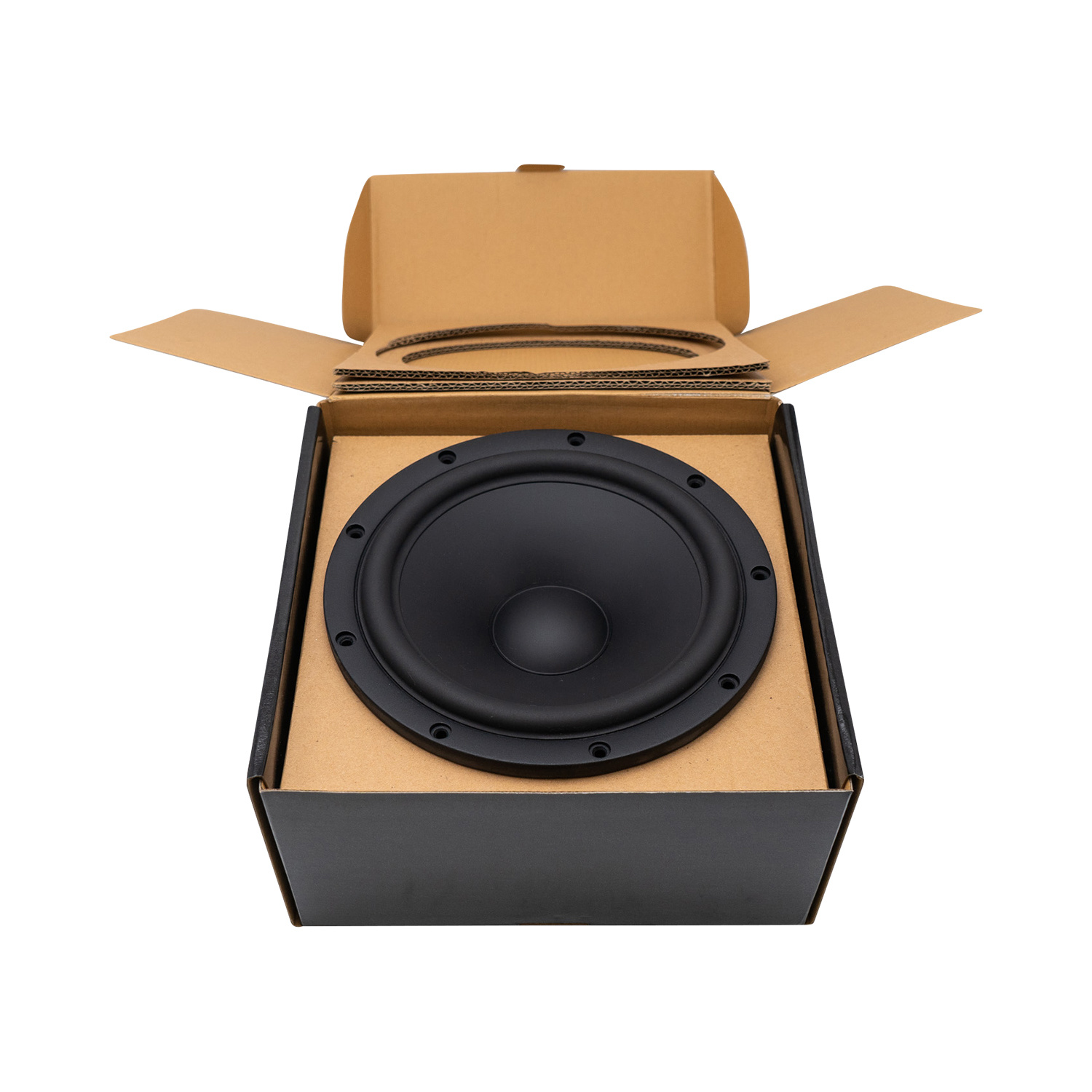

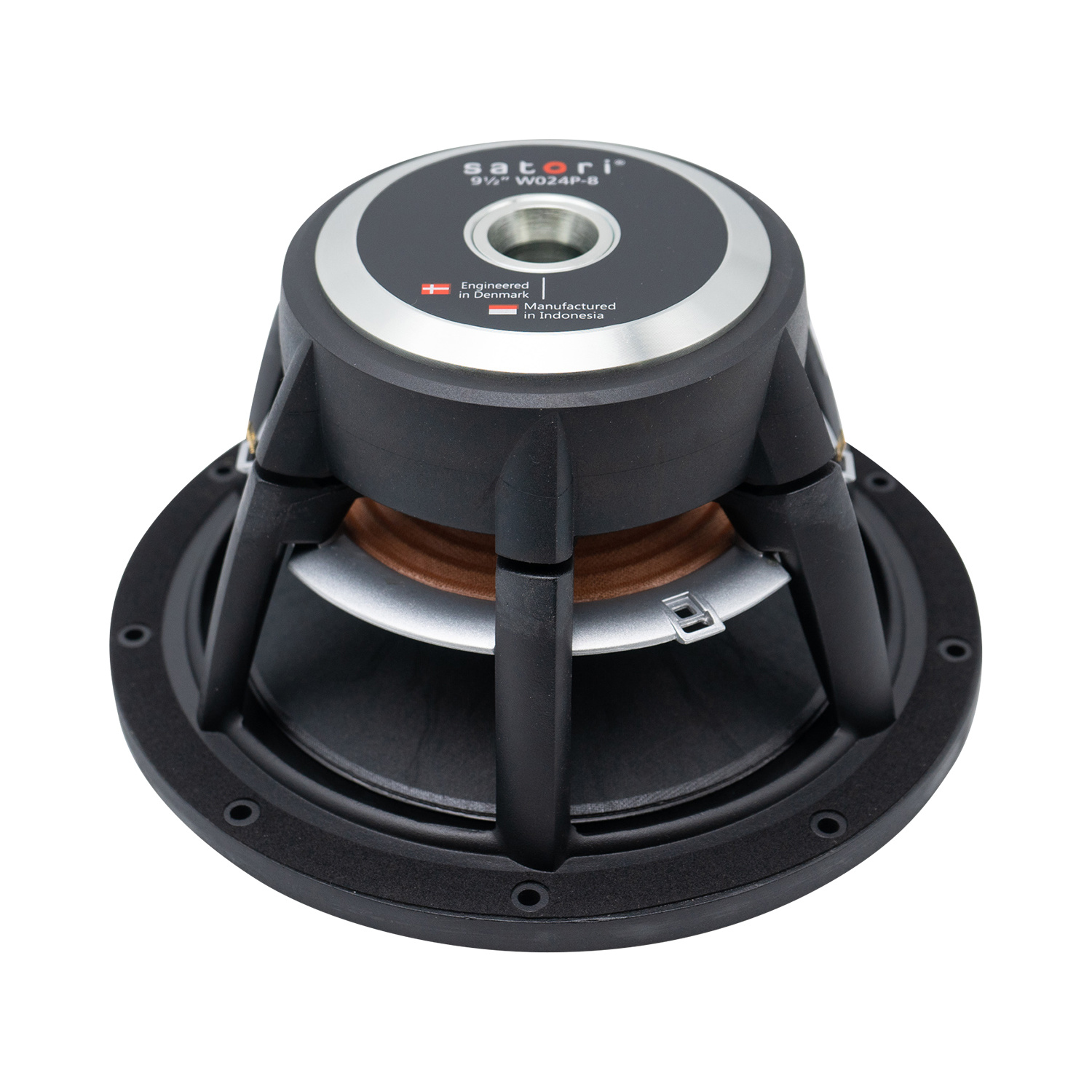

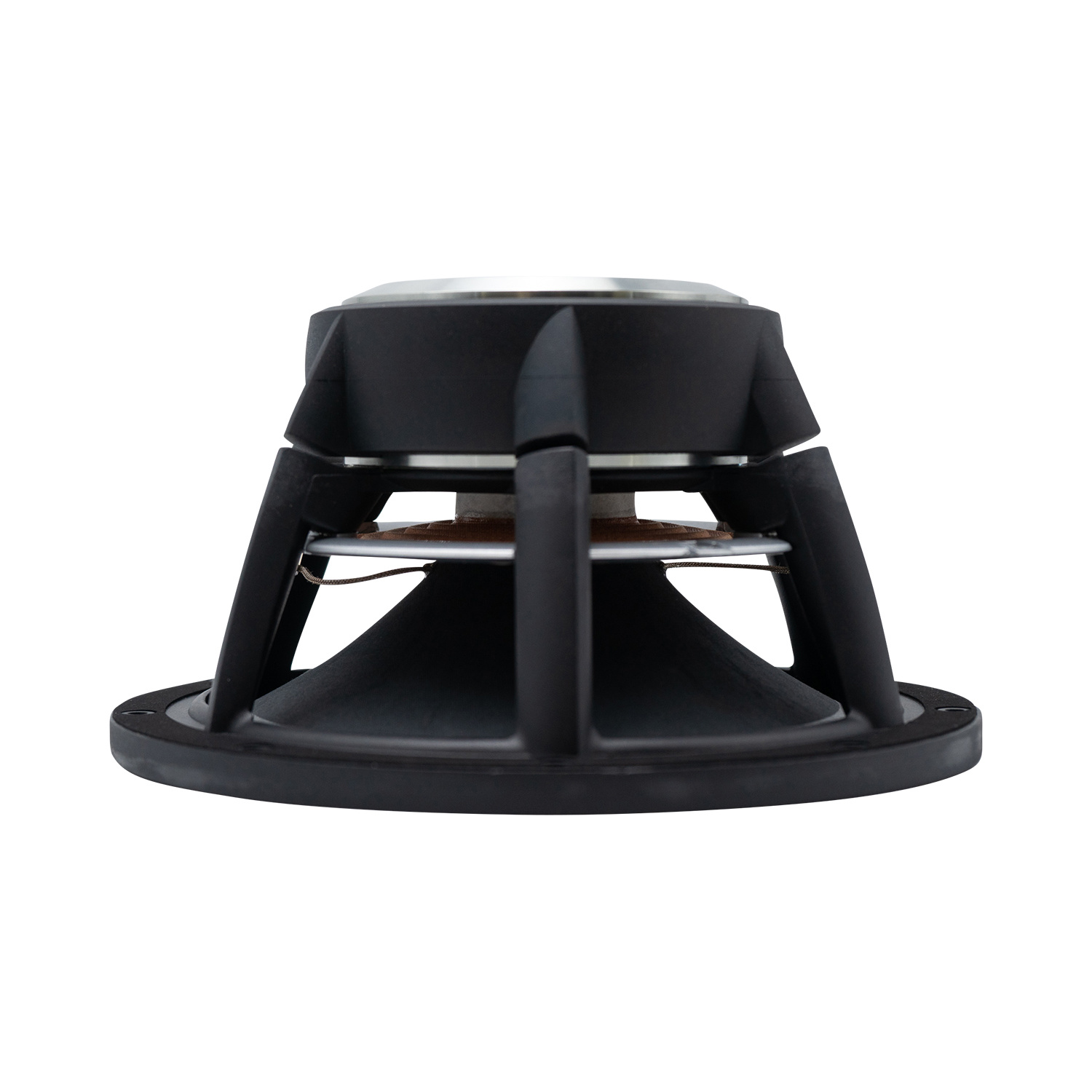

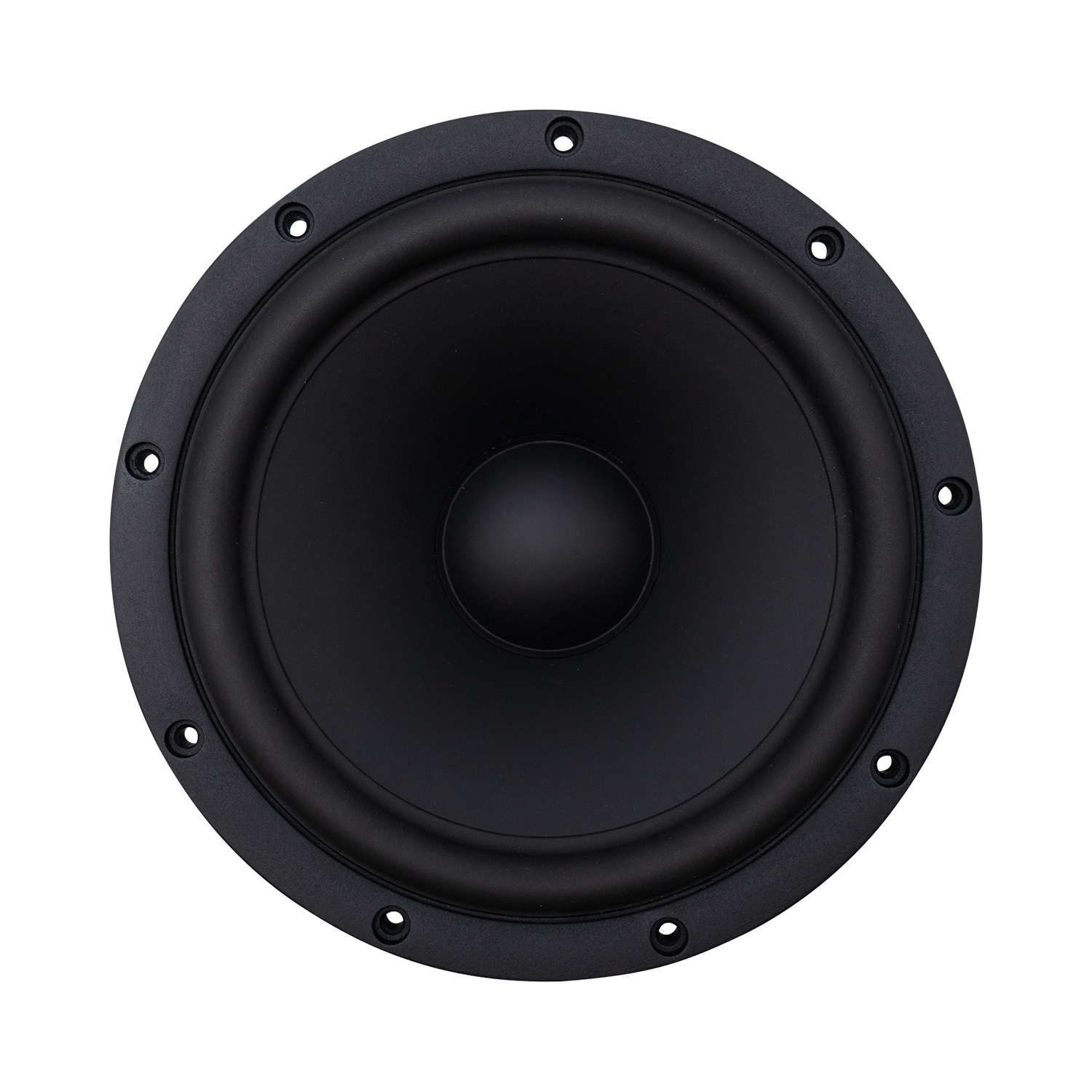

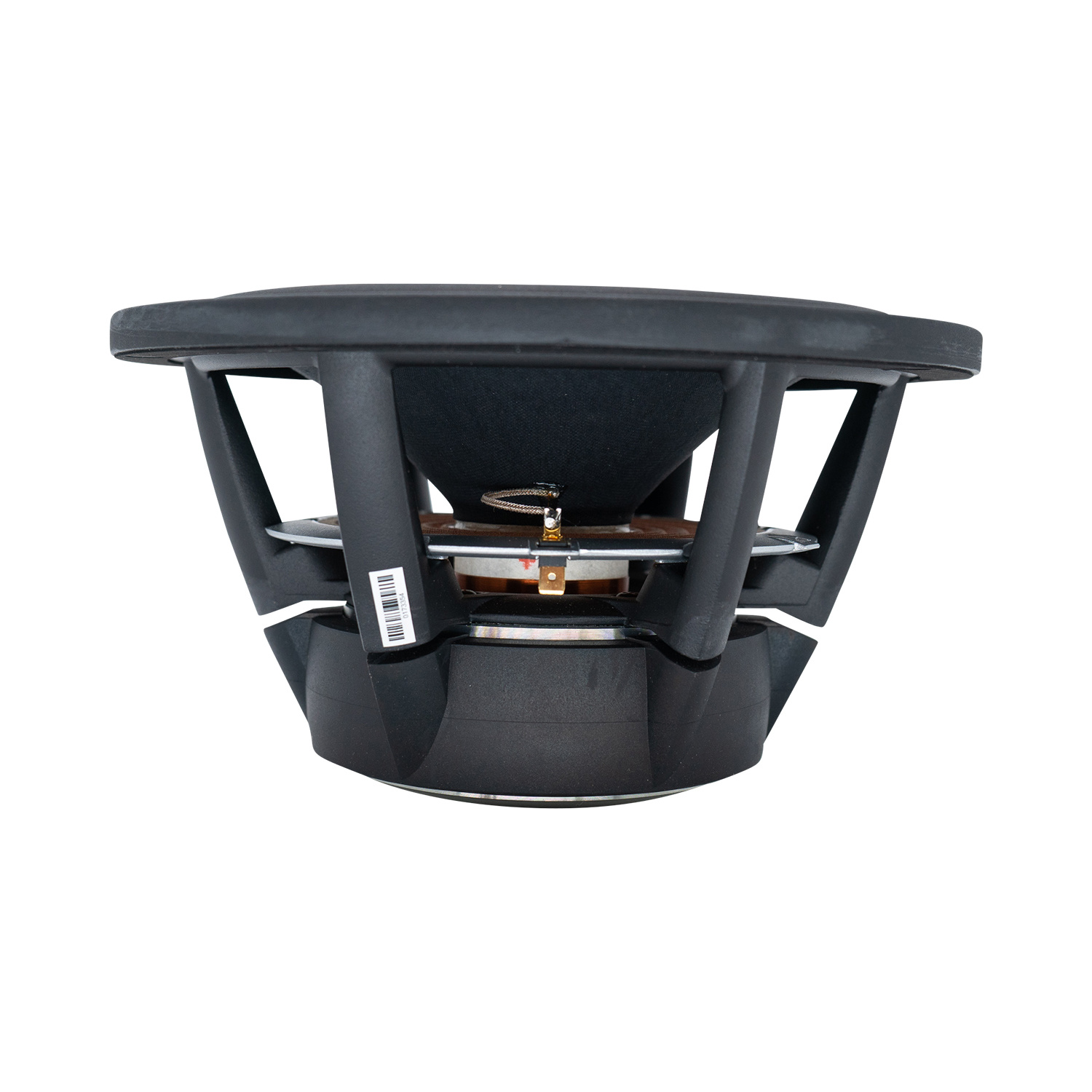

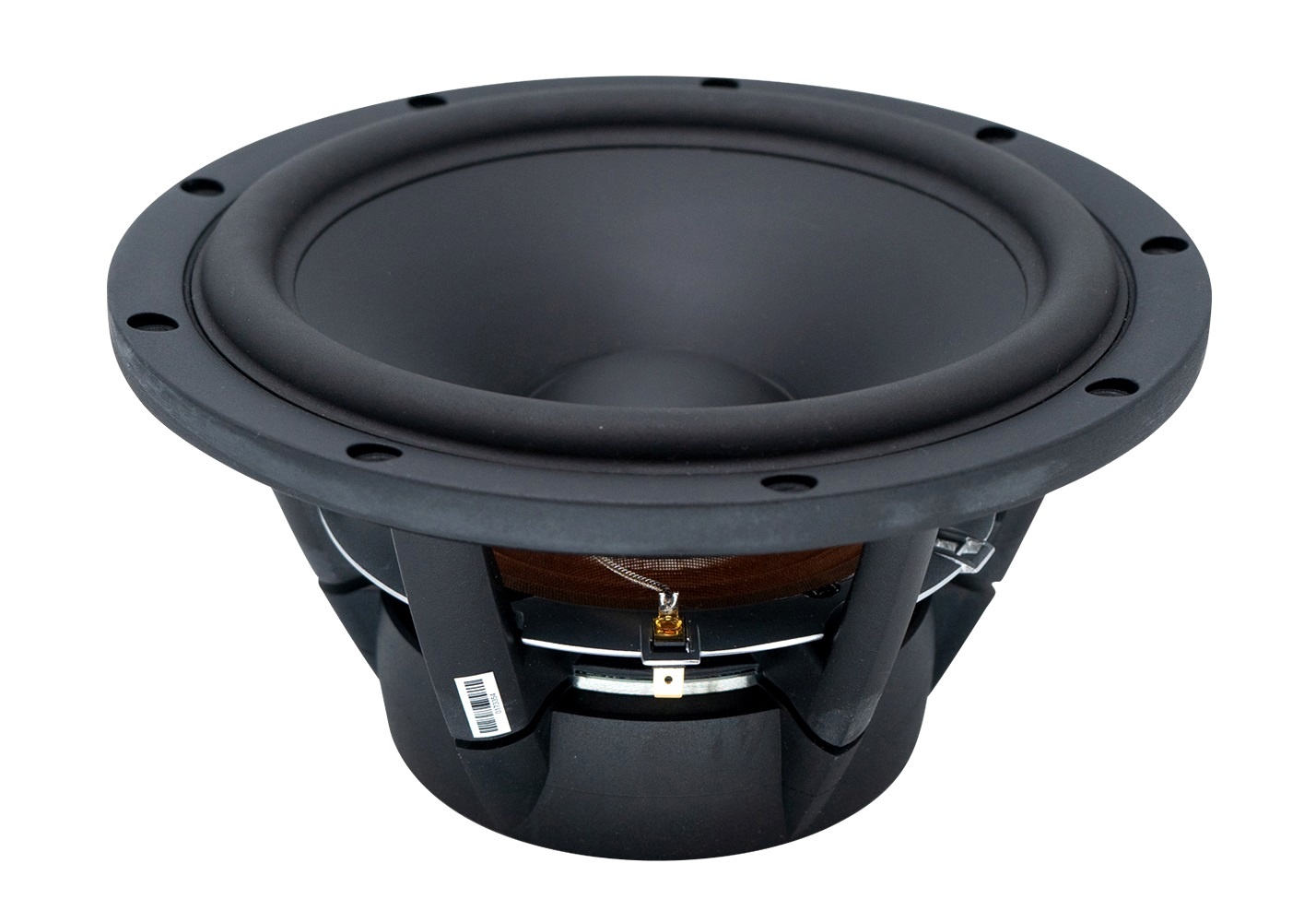

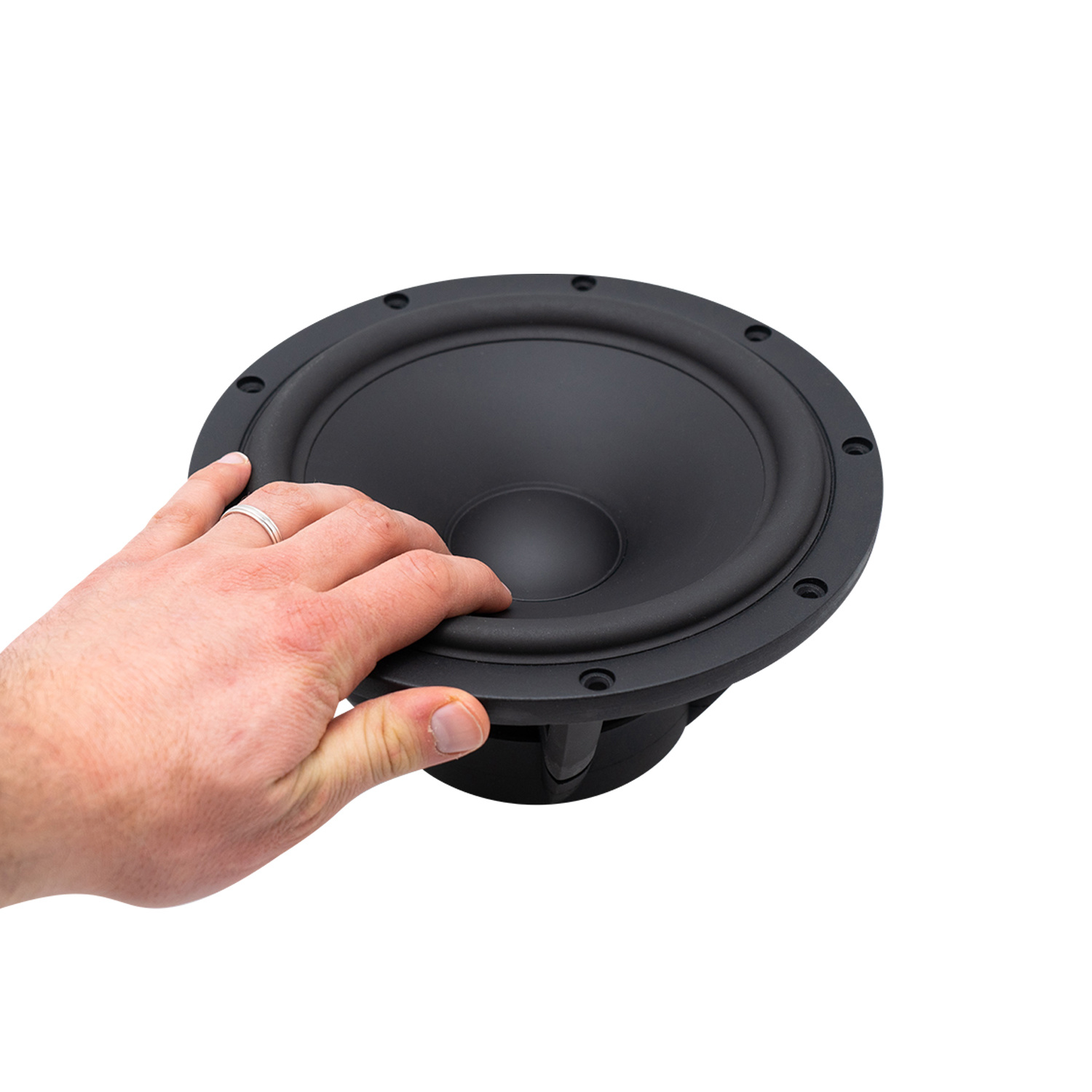

        Satori WO24P-8 Woofer

        SB Acoustics Satori WO24P-8 Woofer

        €239,95

        6 Op voorraad8 verwacht op 26-12-2024

        Toevoegen aan winkelwagen

        SB Acoustics Satori WO24P-8 Woofer

        8 reviews
        5 van 5
        8 reviews
        5 sterren
        100%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: SB Acoustics
        Toon alle Subwoofer
        9.5" | 8 Ω
        Satori WO24P-8 Woofer
        Satori WO24P-8 Woofer
        Satori WO24P-8 Woofer
        Satori WO24P-8 Woofer
        Satori WO24P-8 Woofer
        Satori WO24P-8 Woofer
        Satori WO24P-8 Woofer
        Satori WO24P-8 Woofer
        Satori WO24P-8 Woofer
        Satori WO24P-8 Woofer
        Satori WO24P-8 Woofer
        Satori WO24P-8 Woofer
        Satori WO24P-8 Woofer
        Satori WO24P-8 Woofer
        Satori WO24P-8 Woofer
        € 198,31€ 239,95 6 Op voorraad8 verwacht op 26-12-2024
        • -5% Bestel 4 voor slechts € 227,95 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Nu besteld, morgen bezorgd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Satori WO24P-8 Woofer
        Satori WO24P-8 Woofer
        Satori WO24P-8 Woofer
        Satori WO24P-8 Woofer
        Satori WO24P-8 Woofer
        Satori WO24P-8 Woofer
        Satori WO24P-8 Woofer
        Satori WO24P-8 Woofer
        Satori WO24P-8 Woofer
        Satori WO24P-8 Woofer
        Satori WO24P-8 Woofer
        Satori WO24P-8 Woofer
        Satori WO24P-8 Woofer
        Satori WO24P-8 Woofer
        Satori WO24P-8 Woofer
        Satori WO24P-8 Woofer
        Satori WO24P-8 Woofer
        Satori WO24P-8 Woofer

        Productomschrijving SB Acoustics Satori WO24P-8 Woofer

        Highlights

        • Hard paper cone for improved piston operation (made in-house)

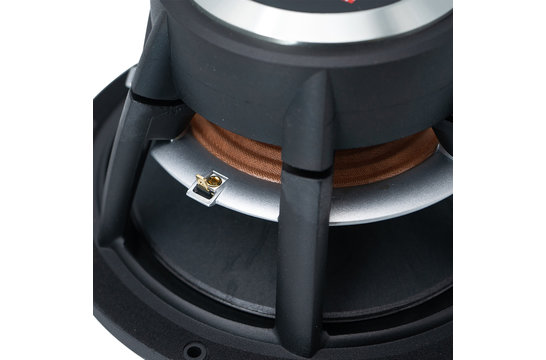

        • Large optimized motor system with under-cut pole piece and dual shorting rings

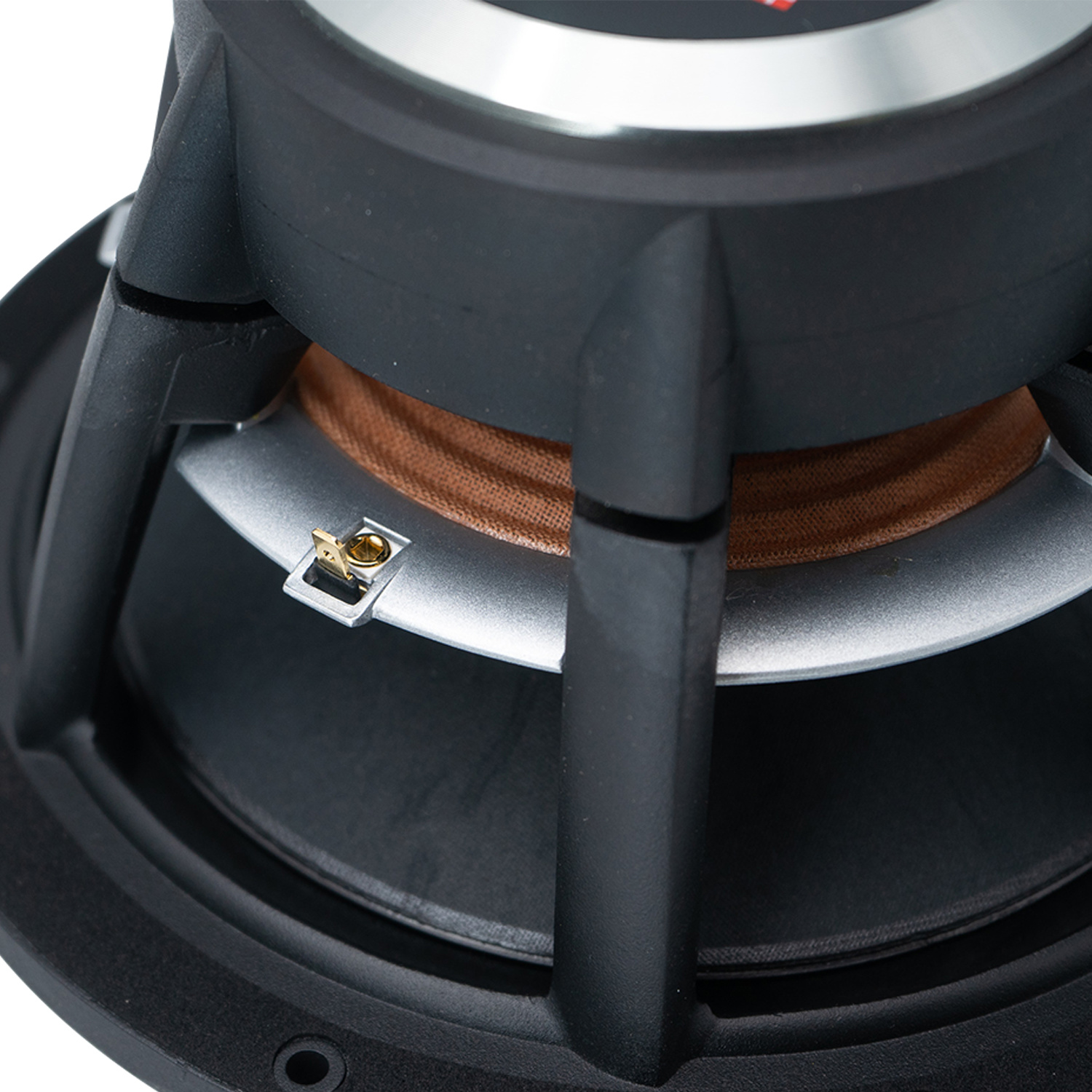

        • Vented aerodynamic cast aluminum chassis for optimum strength and low compression
        • Soft low damping rubber surround for optimum transient response
        • Linear symmetric suspension design for improved dynamic performance
        • Non-conducting fiber glass voice coil former for minimum damping
        • Long life silver lead wires attached 180° apart for improved stability
        • Vented pole piece for reduced compression
        • High piston to chassis diameter ratio
        • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet



        Product details

        SB Acoustics Satori WO24P-8 9.5" Egyptian Papyrus Cone Woofer



        The Satori range was founded to separate more expensive projects from a wider range of more affordable – but still high-end – SB Acoustics products. “As we get more experience, new materials, better simulation tools, we believe in benefiting the customer with those improvements. We always knew that geometry is essential and we are working more and more with geometry. Every time we get new materials, like beryllium, and we optimize the designs, there’s always room for improvement. We’ve been able to implement significant improvements with beryllium, and we could obtain pretty good results in combination with geometry.”

        Toon meer

        Specificaties

        Artikelnummer
        WO24P-8
        EAN
        0696277269310
        Woofer series
        SB Acoustics Satori series
        Woofer type
        Midwoofer
        Nominale diameter
        9.5"
        Belastbaarheid (RMS)
        90 Watts
        Impedantie (Z)
        8 ohms
        Gevoeligheid (SPL bij 1m / 2.83V)
        88 dB
        Spreekspoeldiameter
        1.94"
        Gelijkstroomweerstand (Re)
        5.8 ohms
        Spreekspoelinductie (Le)
        0.56 mH
        Resonantiefrequentie (Fs)
        24.5 Hz
        Mechanische Q (Qms)
        5.7
        Elektrische Q (Qes)
        0.41
        Totale Q (Qts)
        0.38
        Bewegende massa (Mms)
        44.5 g
        Compliantie van de ophanging (Cms)
        0.95 mm/N
        Effectief oppervlak (Sd)
        255 cm2
        Krachtsfactor (BL)
        9.9 Tm
        Equivalentvolume (Vas)
        3.09 ft.³
        Maximale excursie (Xmax)
        8.5 mm

        Toon meer

        Reviews

        8 reviews
        Schrijf een review
        5 van 5
        This driver has stunning performance in my 82l box,with dry,slightly warm, precise,well controlled bass lines. Together with Tangband 75 midrange and Morel cat308 tweeter in a ATC scm 50 like configuration sounding sublime
        Door Akos on 27 Februari 2024
        5 van 5
        I first created a 3-way floor-standing ported speaker with this woofer. Midrange and tweeter are in a seperate sub-enclosure. Internal volume available to the woofer is about 65l. Box tuned in the low 20s. Due to extreme room reinforcement I needed to cut the lowest octaves with an EQ. But even then, the bass was too boomy. The back panel is removable so I replaced it with a sealed one. Internal volume is bit high now for a sealed enclosure. W...

        Toon meer

        Door Vincent on 11 Oktober 2022
