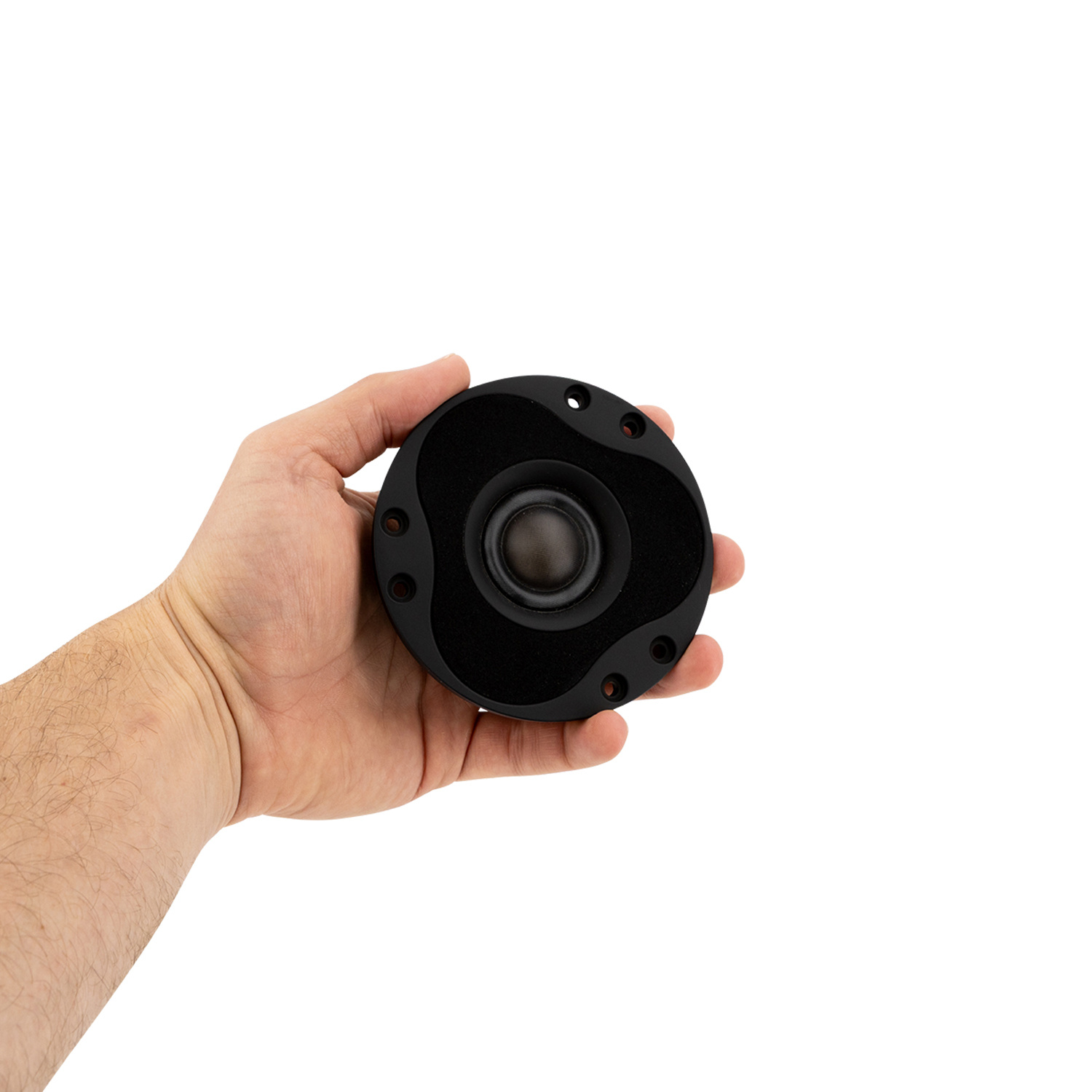

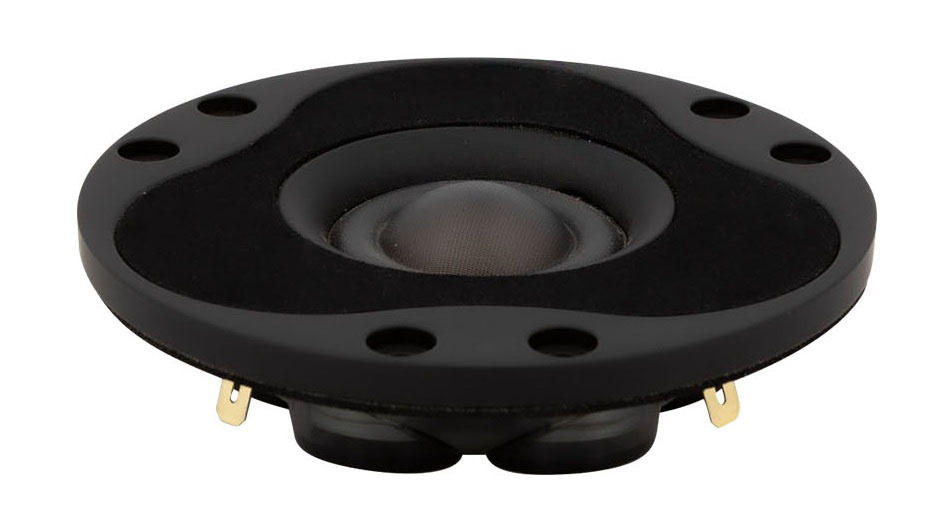

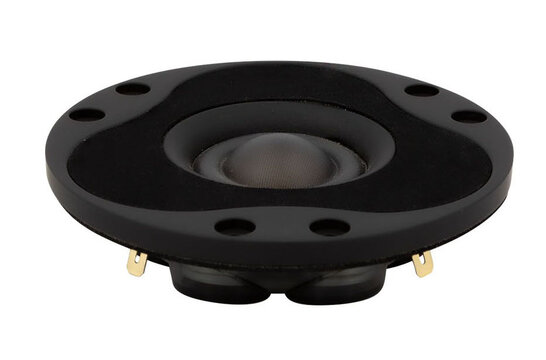

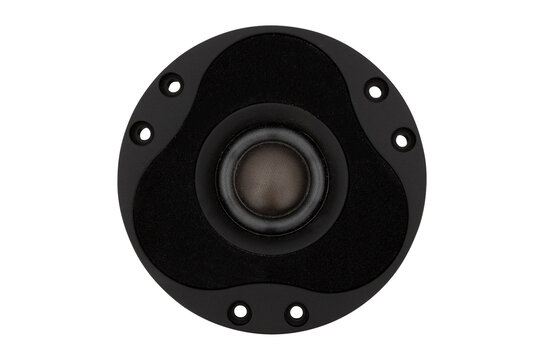

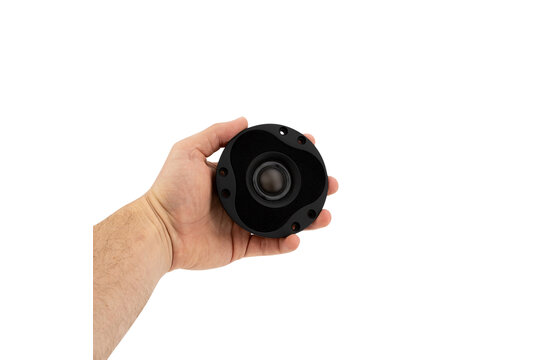

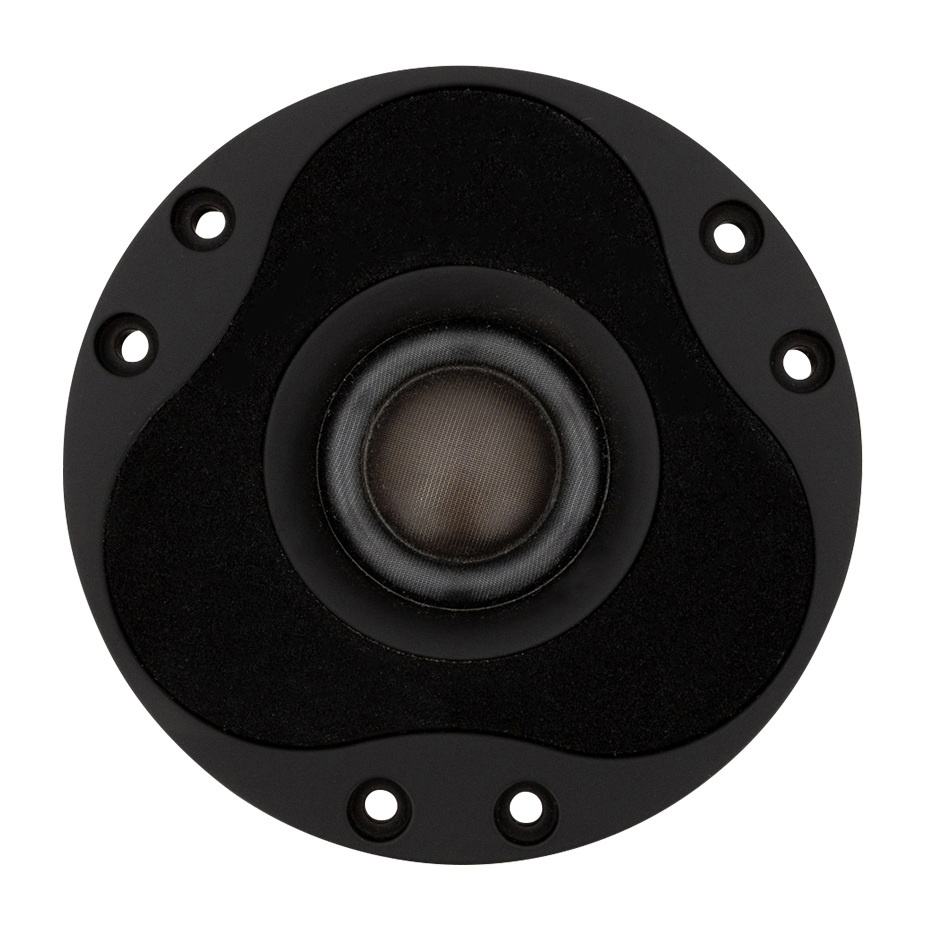

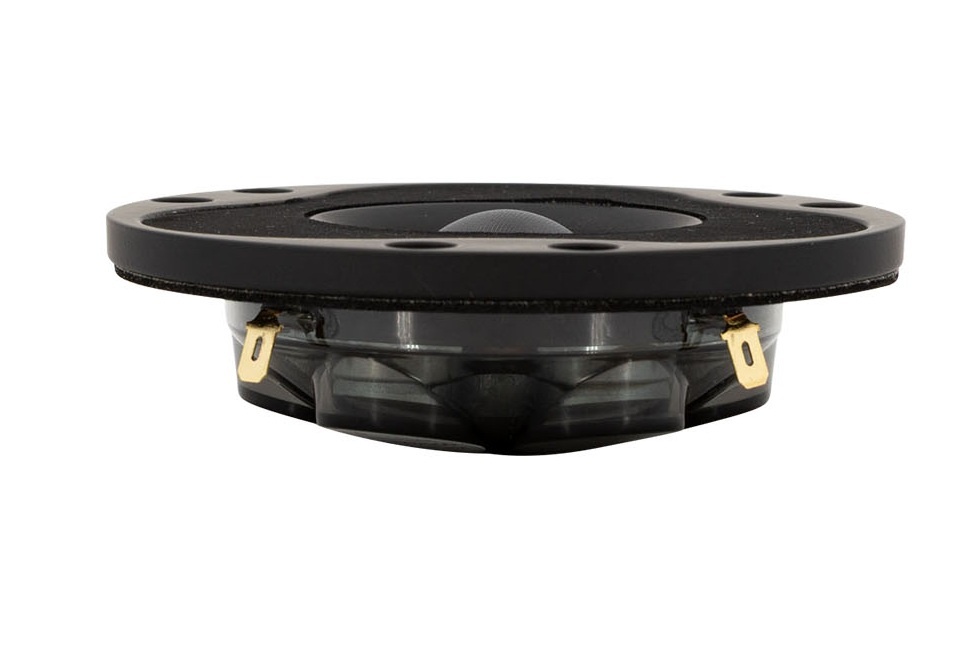

Name: Scan-Speak Illuminator D3004/662000 1" Textile Dome Tweeter
Brand: Scan-Speak
SKU: D3004/662000
Price: 239.95 EUR
Availability: InStock
Rating: 5 (1 reviews)

1" | 4 Ω

Illuminator D3004/662000 1" Textile Dome Tweeter

€ 198,31€ 239,95 10+ Op voorraad

Gratis verzonden (NL & BE)
Nu besteld, morgen bezorgd
Ten minste twee jaar garantie
45 dagen bedenktijd voor retourneren

Klantbeoordeling:

Vergelijk

Zakelijke offerteaanvraag

Heeft u vragen over dit product?

Onze klantenservice helpt u graag verder!

Productomschrijving Scan-Speak Illuminator D3004/662000 Dome Tweeter

Highlights

1" Textile Dome Diaphragm
Magnet System w. Alu Ring
Diffraction Damping Rubber Front
Large Roll Surround f. Wide Dispersion

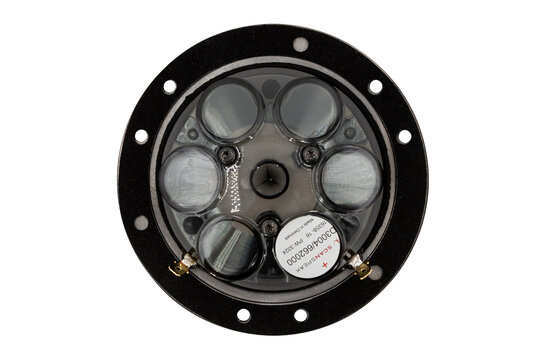

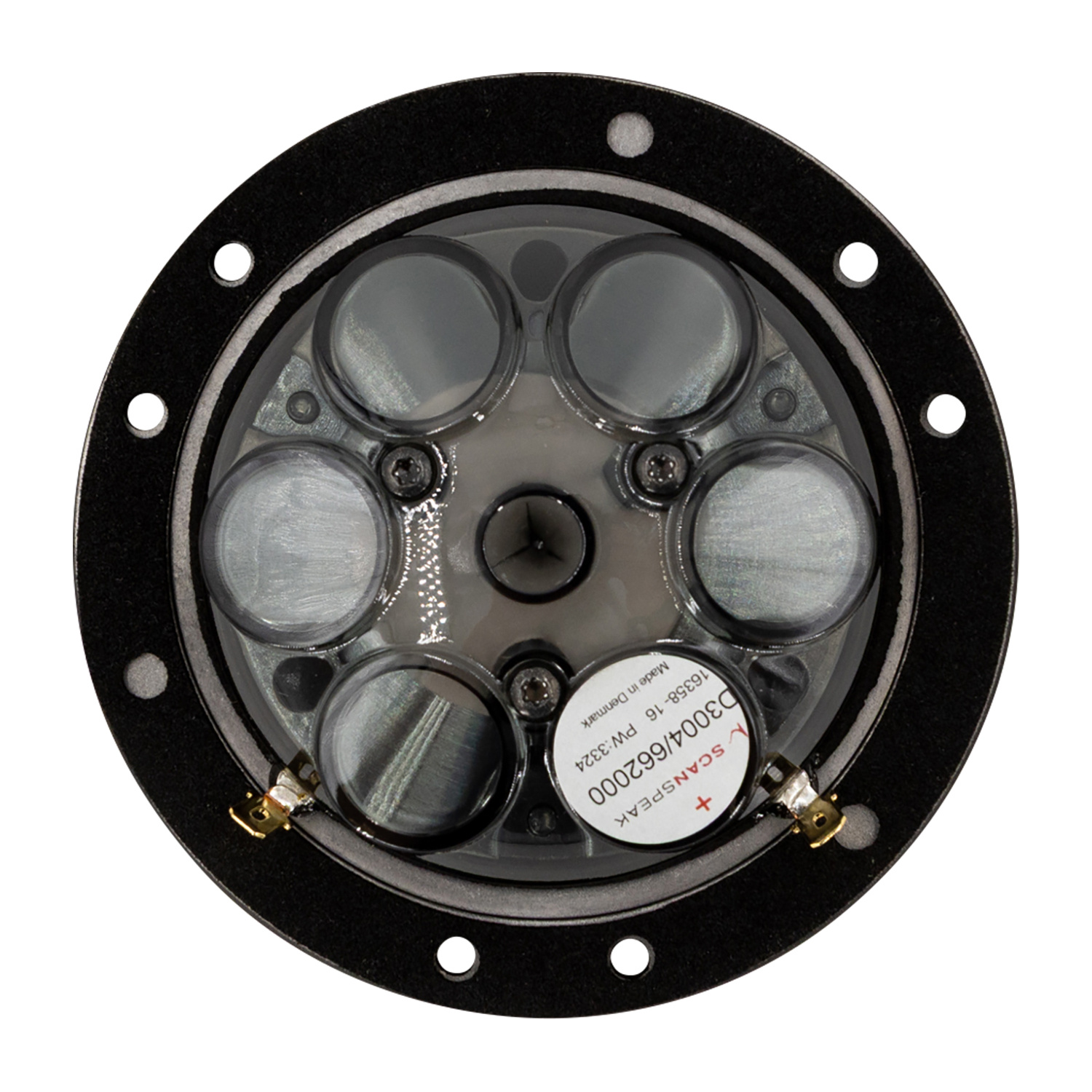

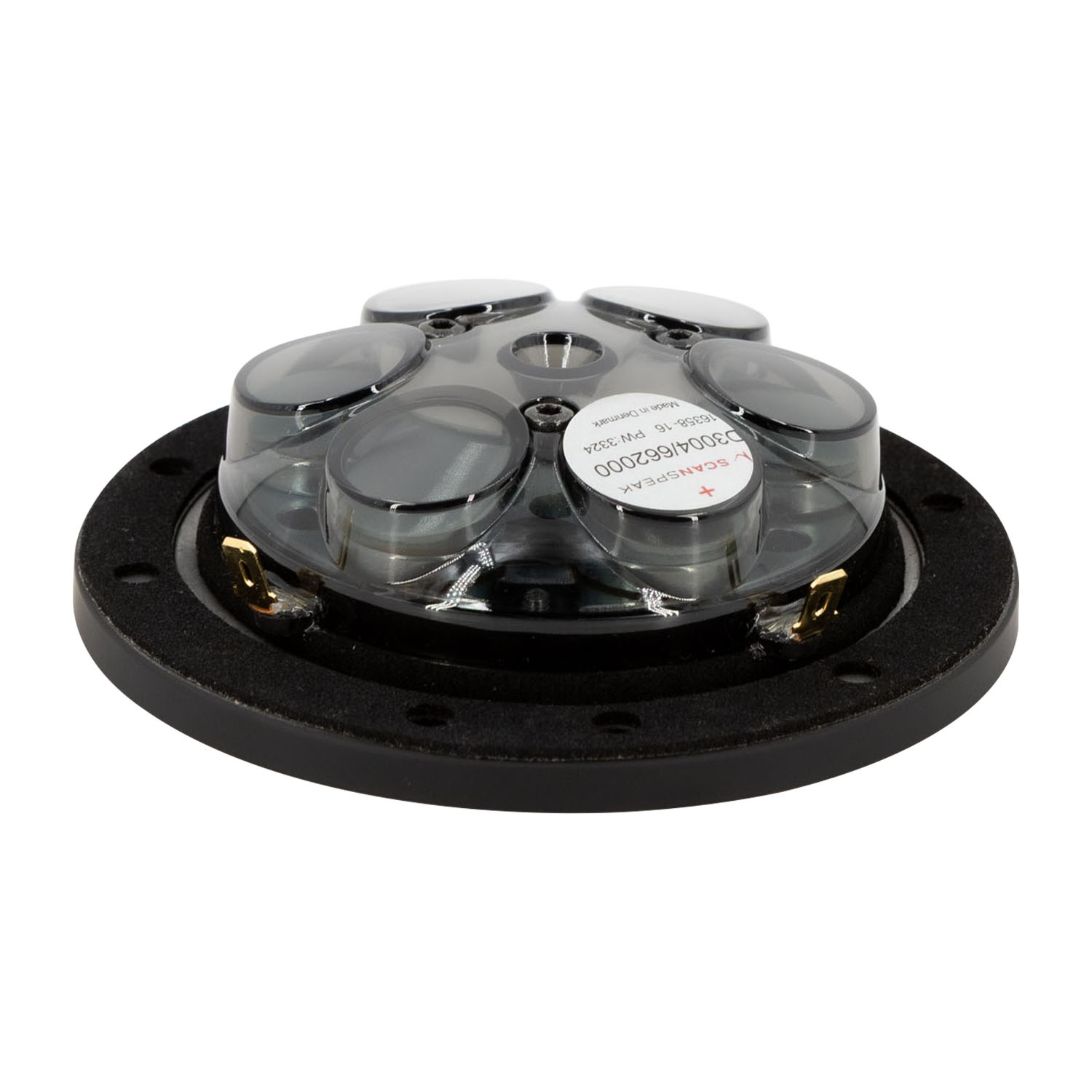

AirCirc Motor Design w. 6 Neo magnets

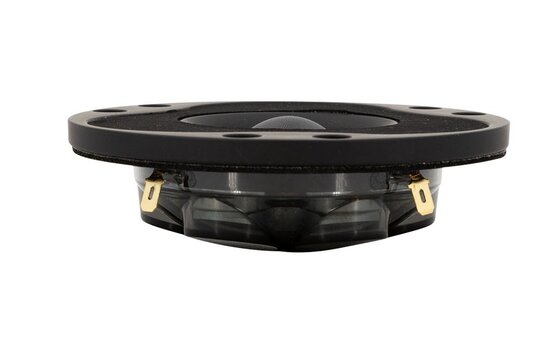

Die Cast Rubber Painted Alu Face Plate

Product details

Scan-Speak Illuminator D3004/662000 1" Textile Dome Tweeter

The Illuminator tweeters stand for superb vocal rendition and excellent imaging at all listening locations. Its large roll surround and textile dome diaphragm provides a flat frequency response to above 30KHz with outstanding off-axis dispersion. The unique AirCirc Magnet System, and its rear chamber, results in elimination of reflections and resonances that compromise the performance of traditional motors.

Specifications: Compliance Equivalent Volume (Vas): 0.0007 ft.³ • BL Product (BL): 2.3 Tm • Mechanical Compliance of Suspension (Cms): 0.29 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.35 g • Maximum Linear Excursion (Xmax): 0.2 mm • Surface Area of Cone (Sd): 7 cm²
