Productomschrijving Sure Electronics AA-AB41133 S/PDIF and IIS/I2S Audio Signal Transceiver

Highlights

A mature I2S & S/PDIF signal conversion equipment
LED status indicator
External power and signal output connector
Power supply anti-reverse protection
A gorgeous appearance WM8804 S/PDIF TOSLINK to IIS Converter Board
Excellent heat dissipation eliminates the requirement of an extra heat sink.

Product details

Sure Electronics AA-AB41133 WM8804 S/PDIF and IIS/I2S Audio Signal Transceiver - SIAT1

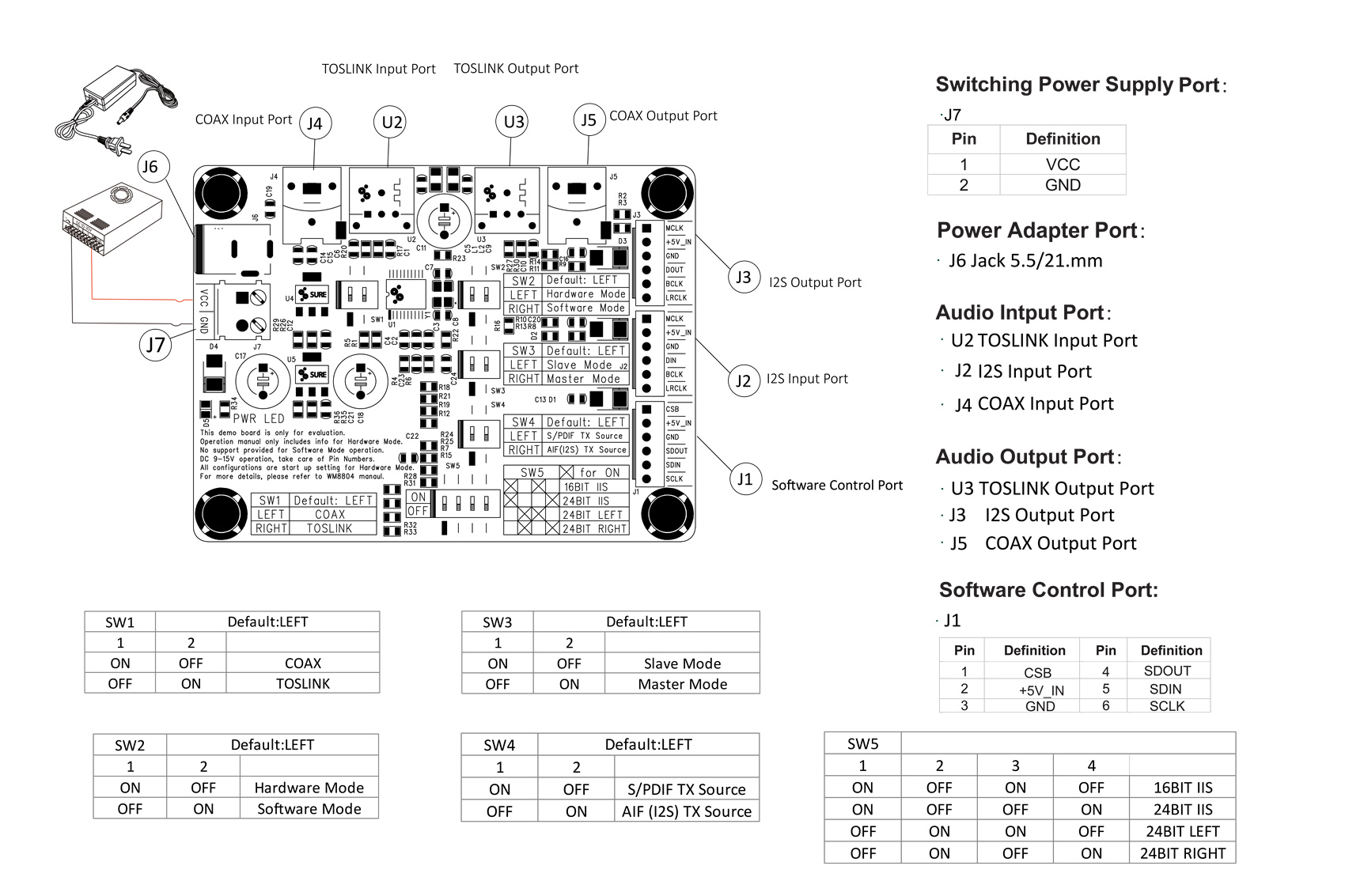

This is a product that can convert S/PDIF and I2S signal to each other. This product can convert the signal S/PDIF into I2S signal, or convert the signal I2S to S/PDIF signal. Signal conversion model can use the hardware setup, and you can also use the software setting. As for the hardware setup, please refer to the silkscreen on PCB. I2S signals and S/PDIF cannot be used as the input or output at the same time . Please turn off the input power supply when you switch the conversion mode. This WM8804 S/PDIF TOSLINK to IIS Converter has one LED indicator which shows the current operation status.And it can be used with WONDOM AA - AB41131 CS4334 IIS/I2S Decode Board with H/P Output.

Specifications: Board Type: Board • inputS/PDIF, I2S, • outputI2S, S/PDIF, • Control InterfaceHardware • Size 3.6 x 2.7 inches (91.44mm x 68.58mm) • Power Voltage9V-15V.
