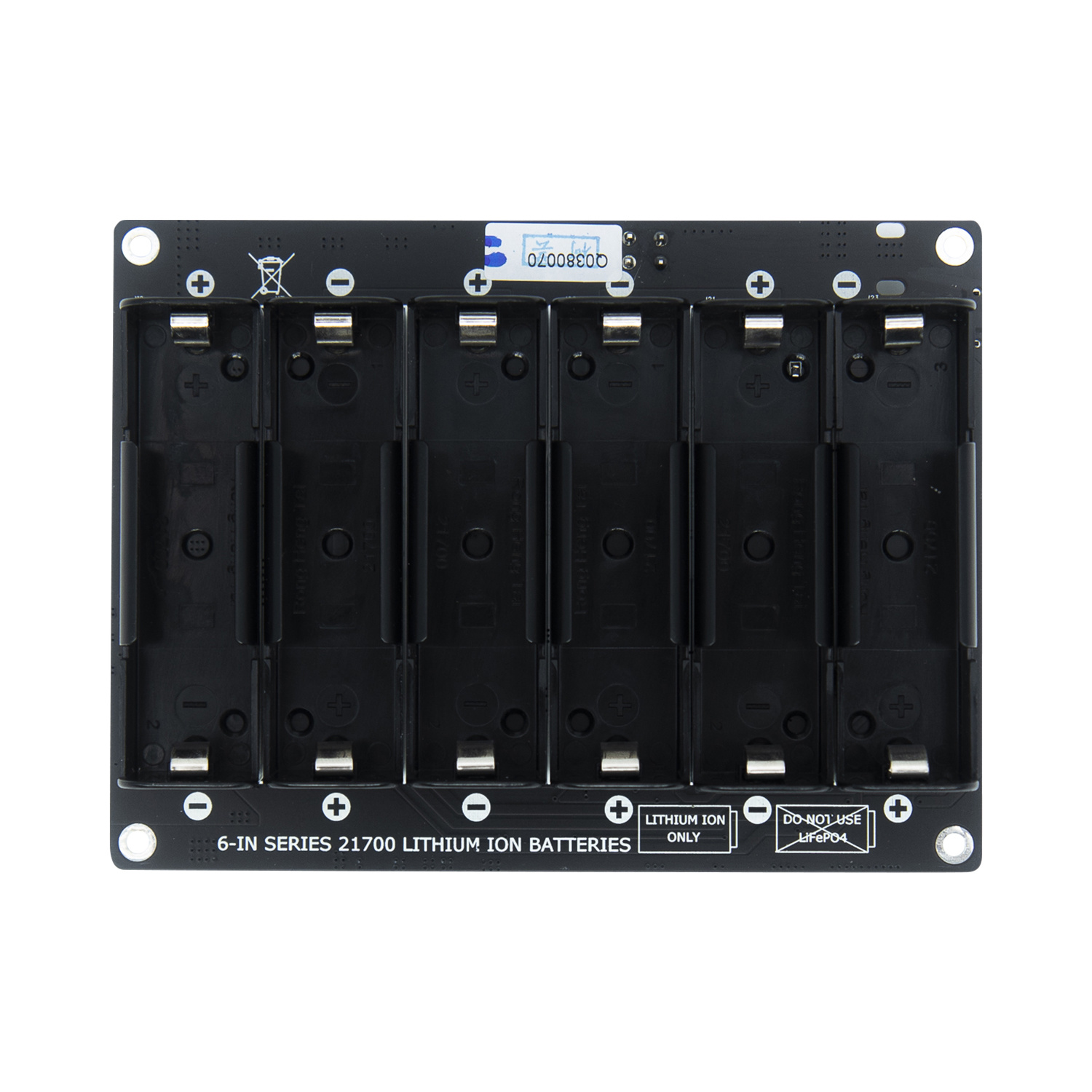

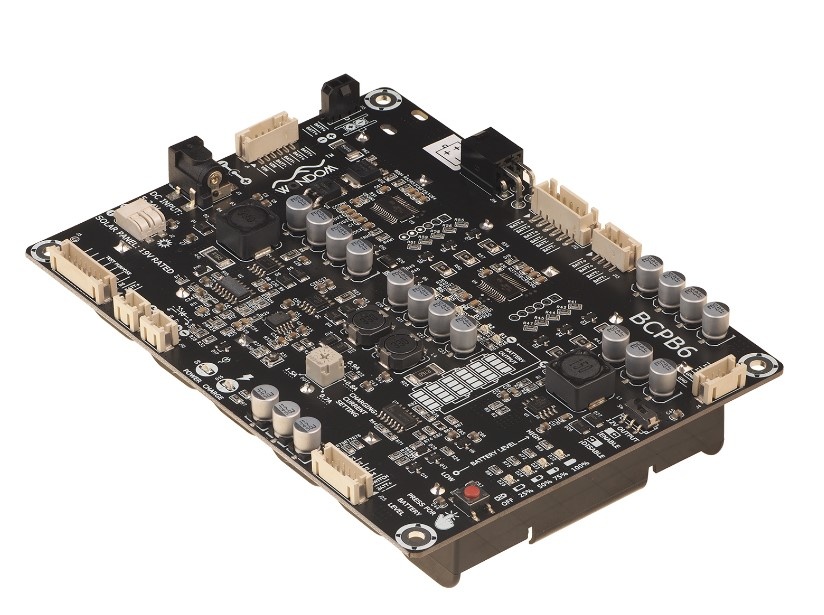

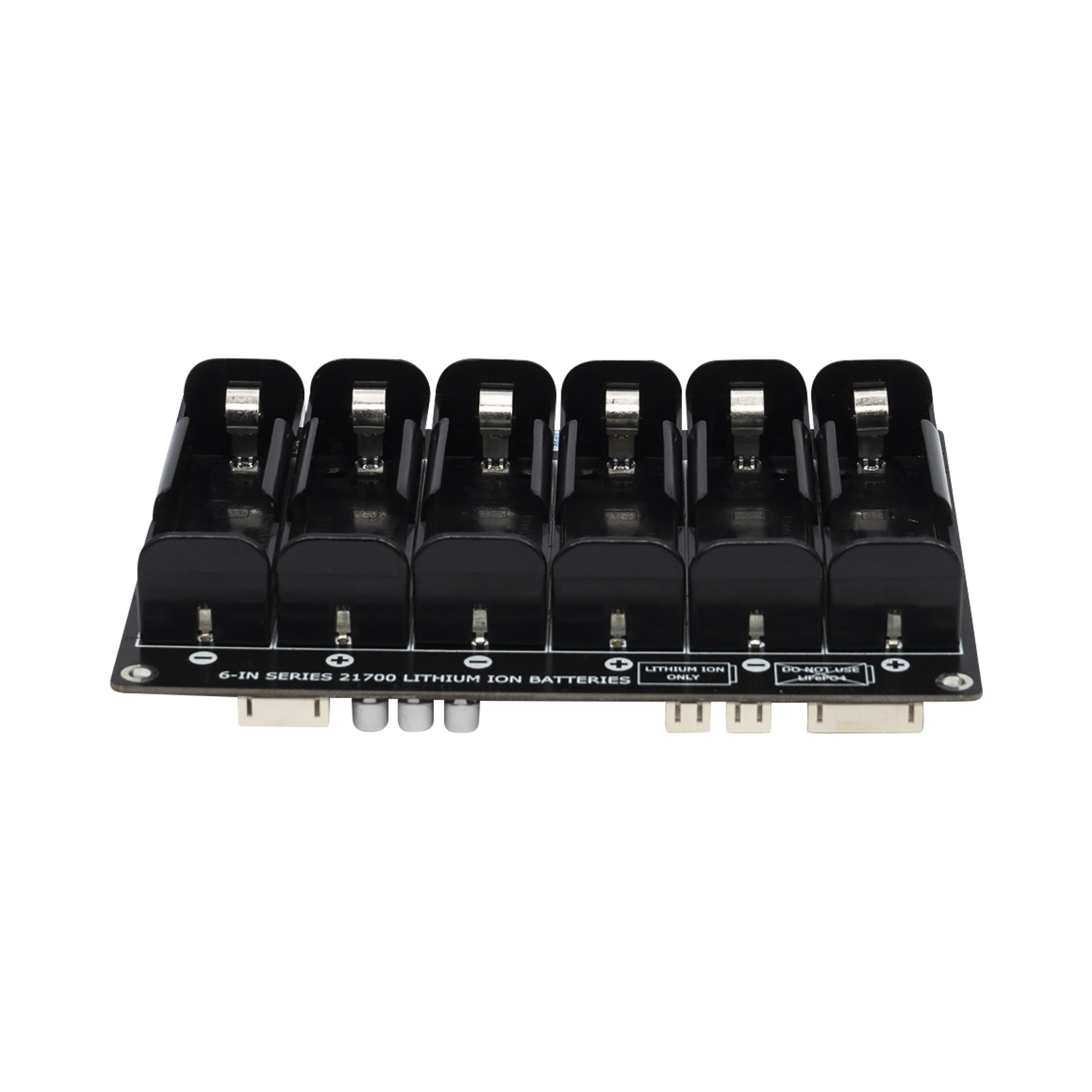

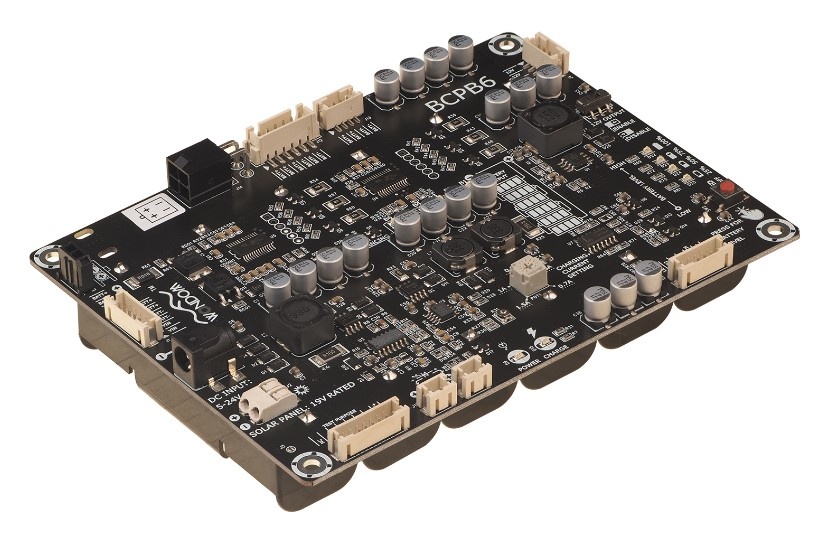

BCPB6 is a highly reliable Lithium-Ion Battery Charging, Protection, and Balancing Board that operates with wide input range, 5- 24V. This board is able to charge the batteries from input voltages above, below, or equal to the output voltages. It is designed for 6 in series 21700 Lithium-Ion Battery which provides approximately 88-100Wh energy. The MPPT charging integrated feature supports an 18.3-24V power supply. BCPB6 is complemented with a visualized display of battery level indicators. To ensure the reliability of this board, it is equipped with full protection circuit; overcurrent, over-temperature, short circuit, and over/under voltage protection. The battery balancing IC allows constant battery voltage between 6 in series 21700 Lithium-Ion cells. It is designed for industrial application with verified MTBF for low-temperature increment under rigorous design.
BCPB6 supports extremely wide supply voltage range as DC5V-24V, which means most power supply can be used to charge the batteries through BCPB6. In addition, BCPB6 is integrated MPPT charging circuit, therefore, it supports solar charging. The supported voltage range is 18.3-24V.
Multiple Discharging Ports for Multiple Devices
BCPB6 provides multiple discharging ports with different terminal interfaces for customers’ convenient system integration. All the discharging ports are connected in parallel, so the functions are the same. You can use BCPB6 to power several devices at the same time.
Indicators for Board Running Situation
For customers’ better and more instinct understanding of the running situation of BCPB6, we provide ports for external power, charging and remaining battery level LEDs. These indicators can help you know the status of the battery board even if it’s integrated into a cabinet.
Full Protection for High Reliability
BCPB6 is equipped with full protection circuit, such as overcurrent, over-temperature, short circuit, and over/under voltage protection, to ensure the high reliability and stability in any applications.
Optional Accessory Cables
We have provided an optional cables kit for customers’ convenient use and connection of BCPB6, which includes discharging cables with various terminal interfaces and external LED indicator cables. You can find the cables kit (PS-BC12311) on our website.

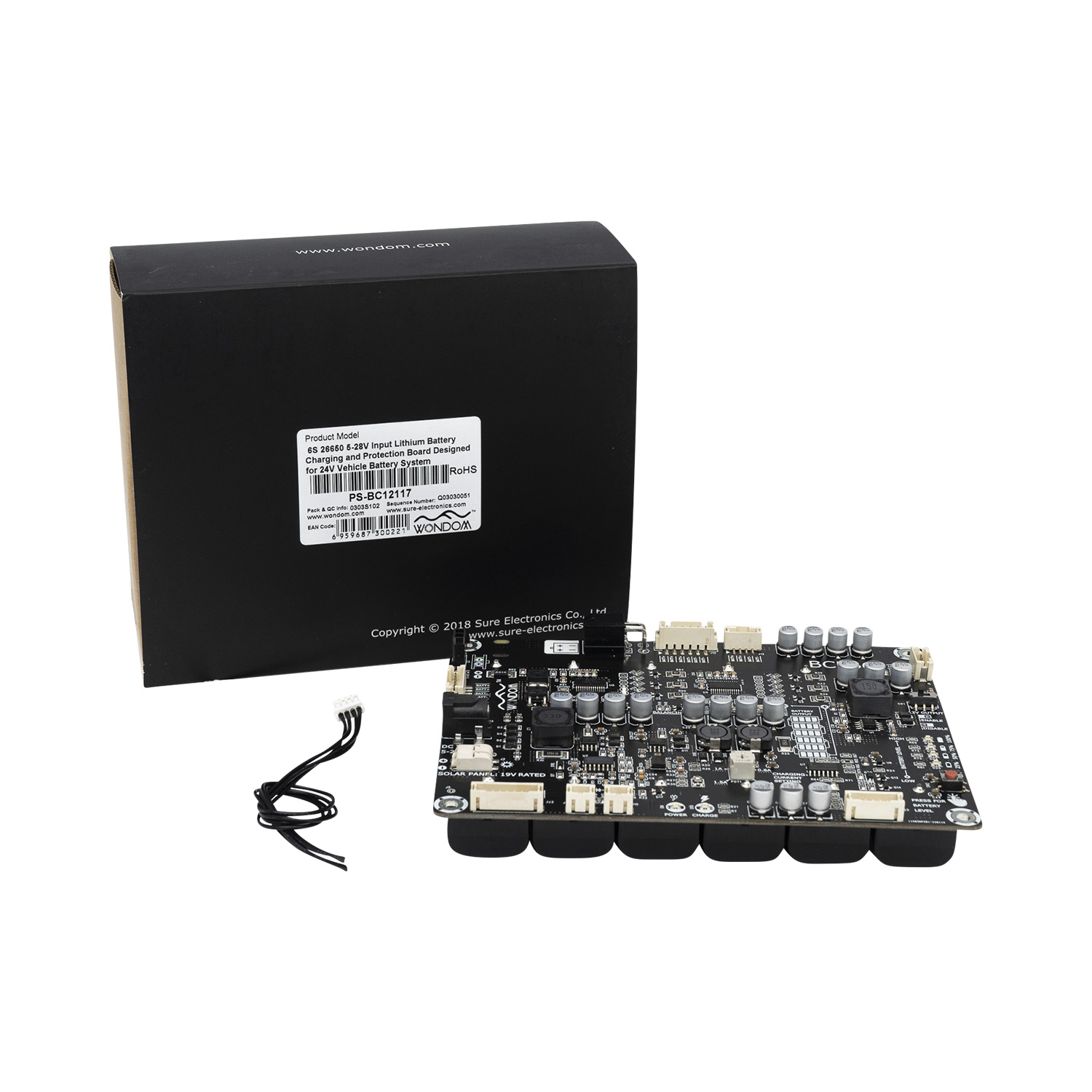

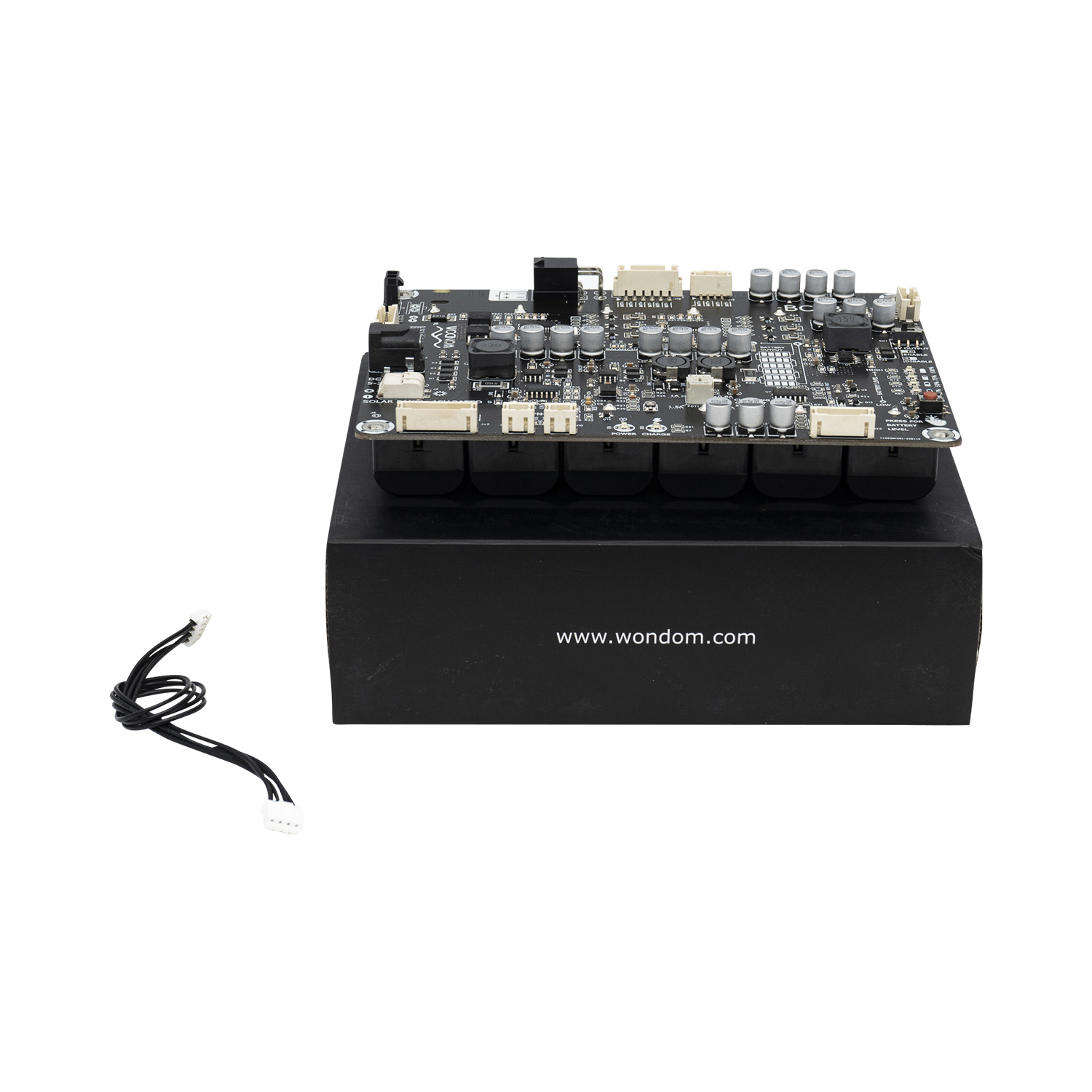

Package Include:
1pc PS-BC12117, BCPB6
1pc PH-6Pos Discharging Cable, 25cm
