        T1-2121SD Speaker Module 5-7/16" x 2-3/16"

        Tang Band T1-2121SD Speaker Module 5-7/16" x 2-3/16"

        €39,95

        10+ Op voorraad

        Toevoegen aan winkelwagen

        Tang Band T1-2121SD Speaker Module 5-7/16" x 2-3/16"

        5 reviews
        5 van 5
        5 reviews
        5 sterren
        80%
        4 sterren
        20%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: Tang Band
        Toon alle Speaker module
        138 x 56 mm | 4 Ω
        T1-2121SD Speaker Module 5-7/16" x 2-3/16"
        T1-2121SD Speaker Module 5-7/16" x 2-3/16"
        T1-2121SD Speaker Module 5-7/16" x 2-3/16"
        T1-2121SD Speaker Module 5-7/16" x 2-3/16"
        T1-2121SD Speaker Module 5-7/16" x 2-3/16"
        T1-2121SD Speaker Module 5-7/16" x 2-3/16"
        € 33,02€ 39,95 10+ Op voorraad
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Nu besteld, morgen bezorgd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        T1-2121SD Speaker Module 5-7/16" x 2-3/16"
        T1-2121SD Speaker Module 5-7/16" x 2-3/16"
        T1-2121SD Speaker Module 5-7/16" x 2-3/16"
        T1-2121SD Speaker Module 5-7/16" x 2-3/16"
        T1-2121SD Speaker Module 5-7/16" x 2-3/16"
        T1-2121SD Speaker Module 5-7/16" x 2-3/16"

        Productomschrijving Tang Band T1-2121SD Speaker Module

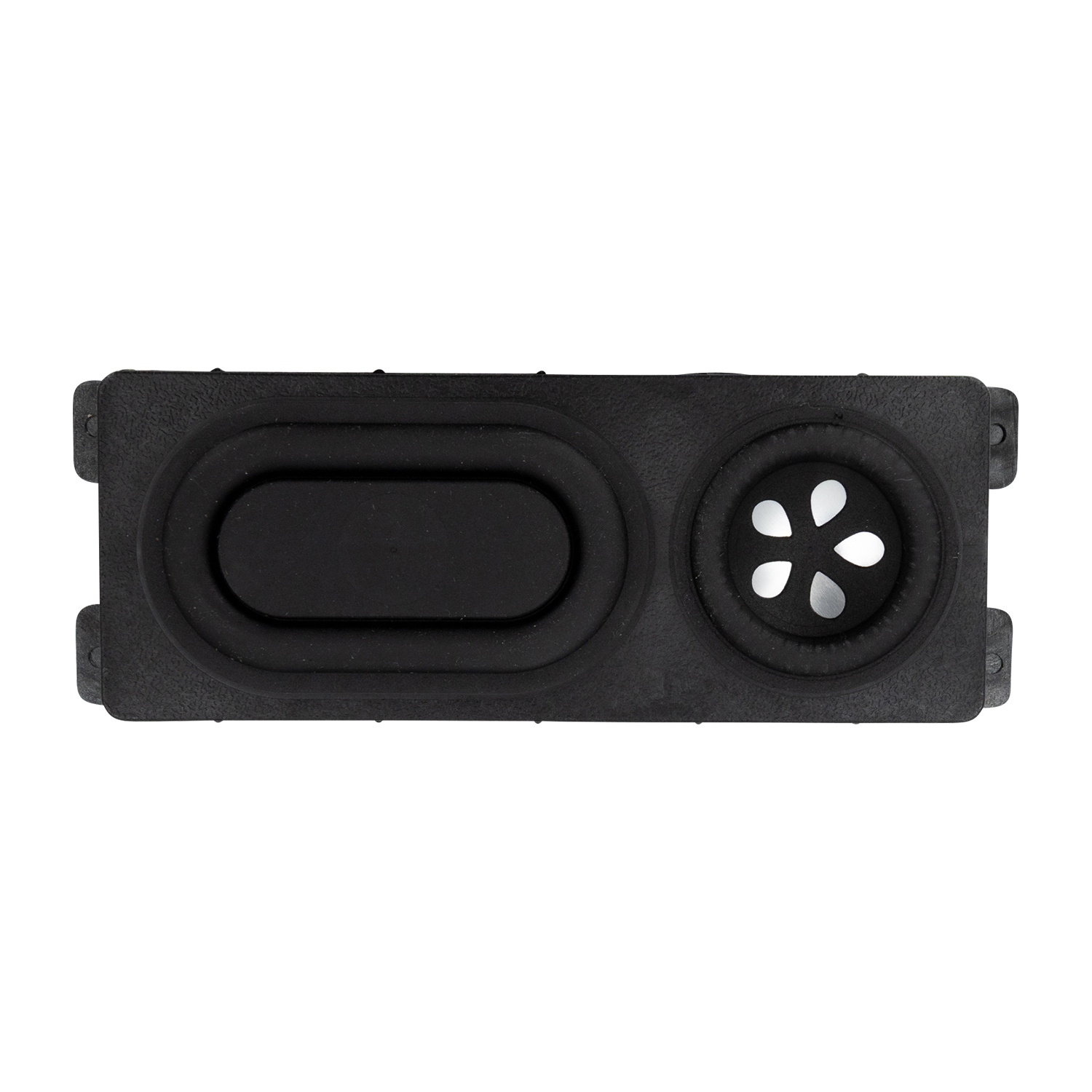

        Tang Band's T1-2121SD speaker module makes designing ultra-small speaker systems easy. With a 46 mm inverted aluminum dome driver mounted in a polypropylene enclosure with a passive radiator, most of the work has been done for you.



        Highlights

        • Self-contained 6.125" H x 2.125" W x 1" D design
        • Smooth response to under 100 Hz for easy transition to a subwoofer
        • Wide band response through the use of a passive radiator



        Product details

        Tang Band T1-2121SD Speaker Module 5-7/16" x 2-3/16"



        The T1-2121SD speaker module is a passive radiator assisted, aluminum composite 46 mm inverted dome driver. This allows for a very full frequency response from a single, small driver. Advantages of this type of speaker design include the elimination of crossover components in the critical midrange, superb off-axis response due to the use of a small driver (without hot spots), and perfect time-alignment.



        Tang Band's line of patented speaker modules are designed for modern audio applications such as sound bars, desktop multimedia speakers, flat panel tv speakers, and portable audio systems where small size is of utmost importance. Don't let Tang Band's diminutive driver modules fool you; each is built with a passive radiator that extends midbass frequency response, allowing these to mate to a subwoofer system quite easily.

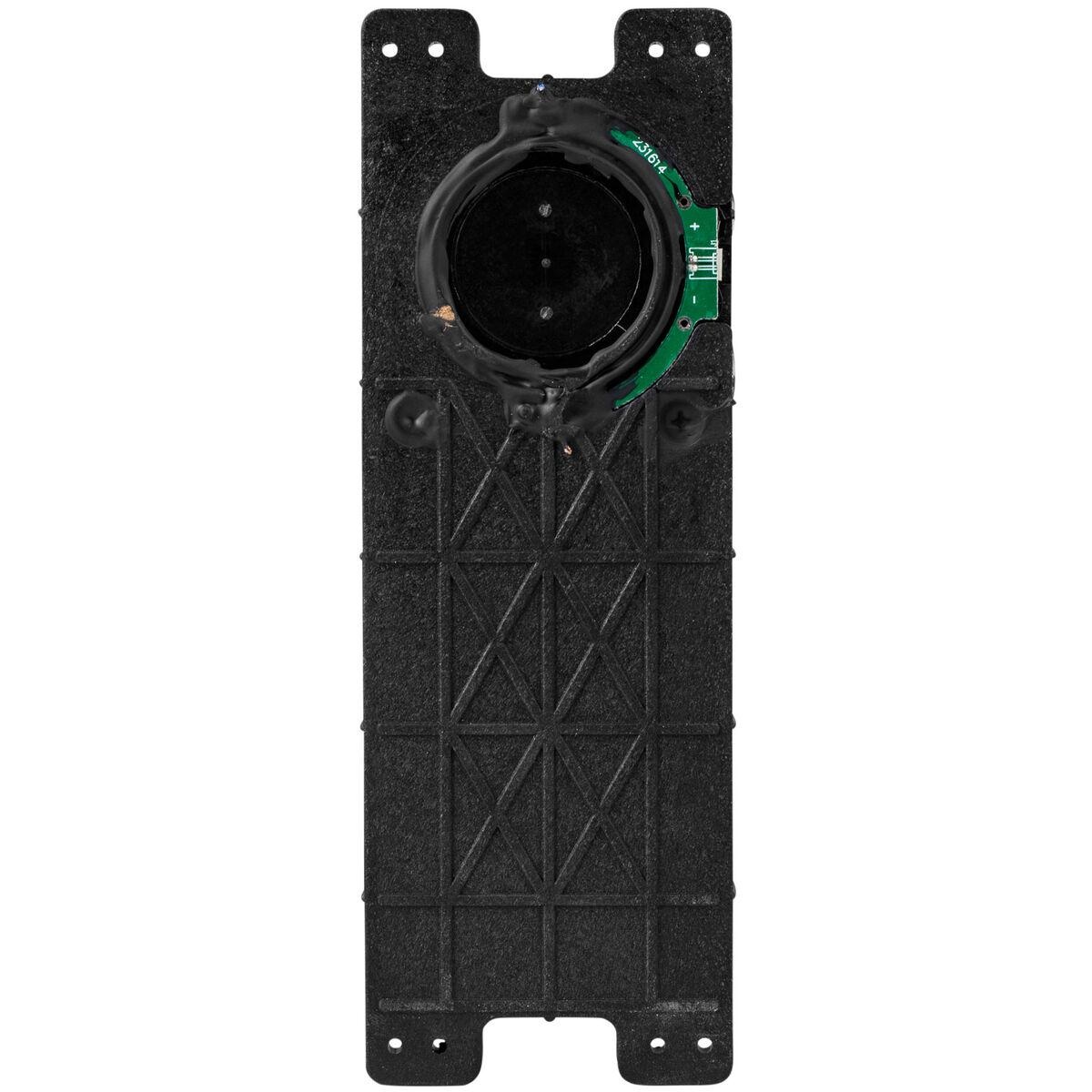

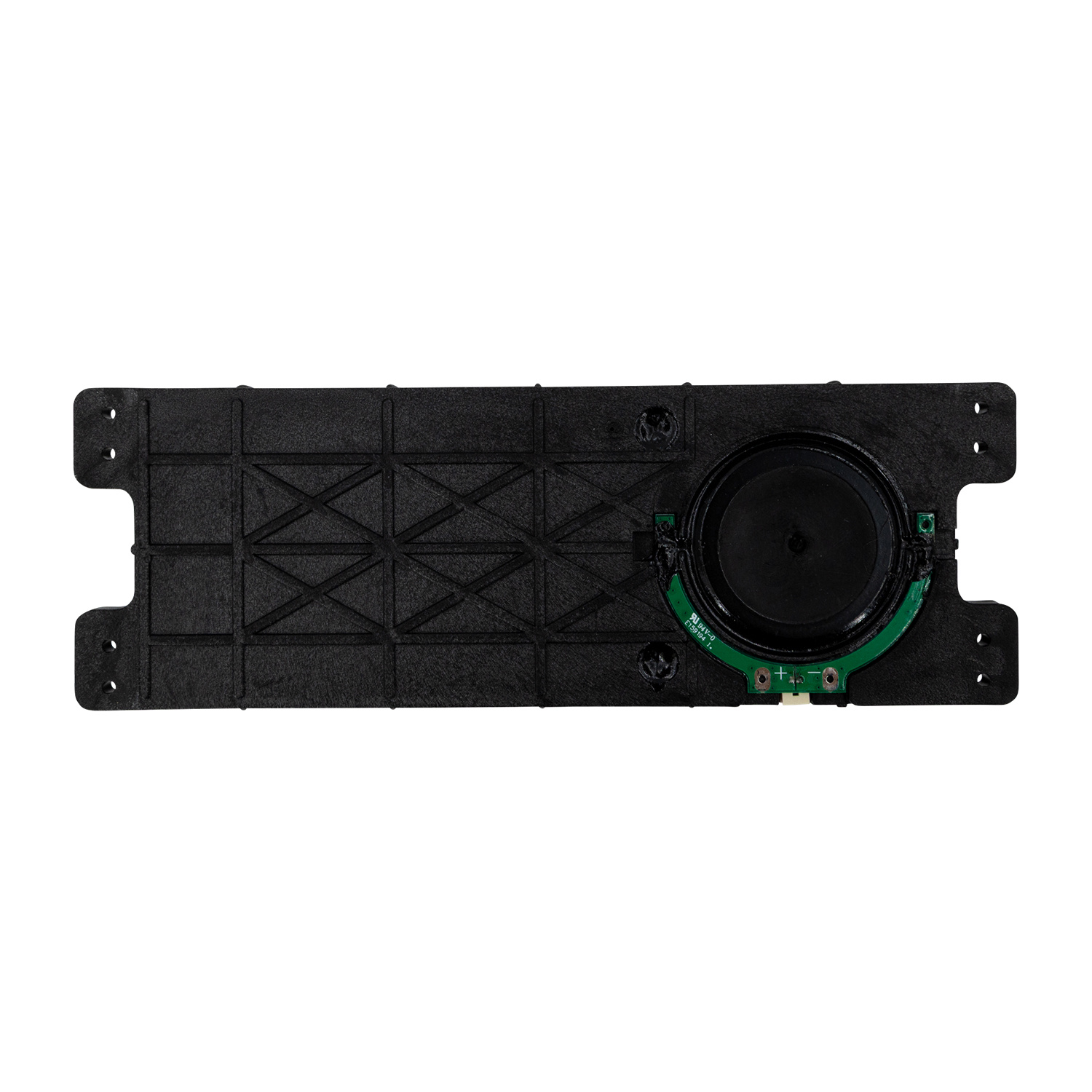

        Tang Band incorporated mounting tabs and a two-pin wiring harness jack into the T1-2121SD to facilitate mounting. For custom applications, two polarity-indicated solder points are built onto the driver PCB.



        Note: Tang Band recommends the use of a 2nd order (-12 dB/octave) 87 Hz high pass filter for the best possible sound. Higher power handling and output (SPL) is possible using multiple modules.

        Toon meer

        Specificaties

        Artikelnummer
        T1-2121SD
        EAN
        0848864043753
        Woofer type
        Speaker Module
        Belastbaarheid (RMS)
        6 Watts
        Belastbaarheid (max)
        12 Watts
        Impedantie (Z)
        4Ω
        Gevoeligheid (SPL bij 1m / 2.83V)
        79 dB
        Frequentierespons
        78 to 20,000Hz
        Spreekspoeldiameter
        1.1"
        Resonantiefrequentie (Fs)
        78 Hz
        Cone / Diaphragm Material
        Aluminum
        Surroundmateriaal
        Rubber
        Spreekspoel draadmateriaal
        Copper
        Mand- /framemateriaal
        Polymer
        Magneetmateriaal
        Neodymium
        Totale buitendiameter
        5.43" (With mounting tabs: 6.18) x 2.16"
        Totale diepte
        1"

        Toon meer
