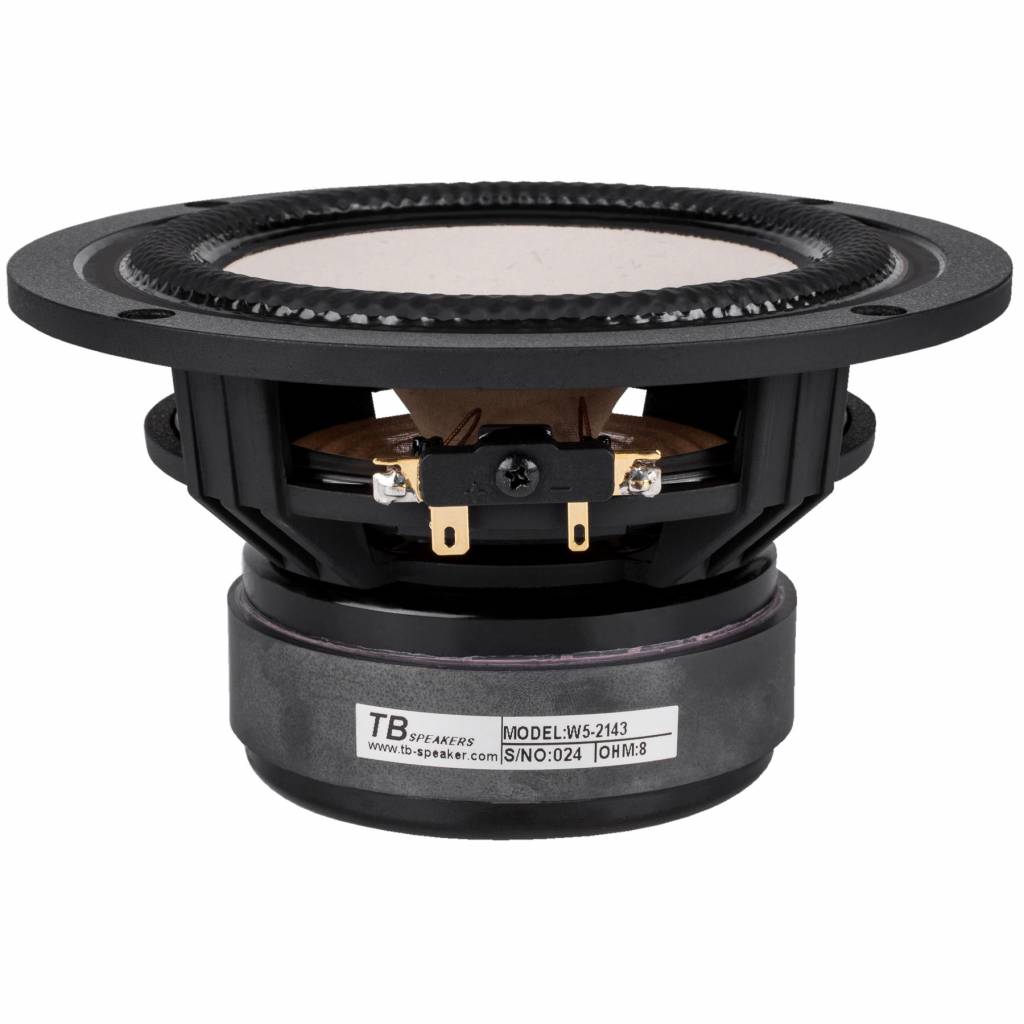

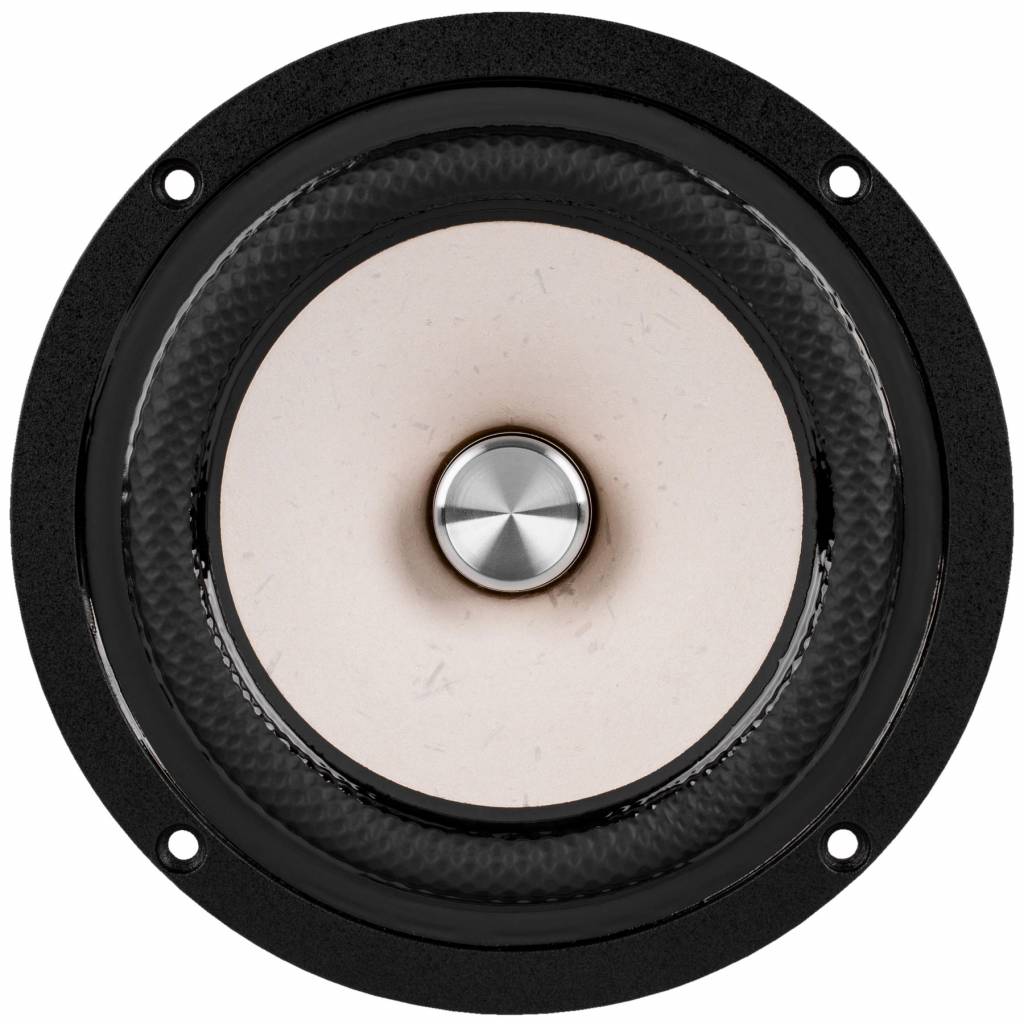

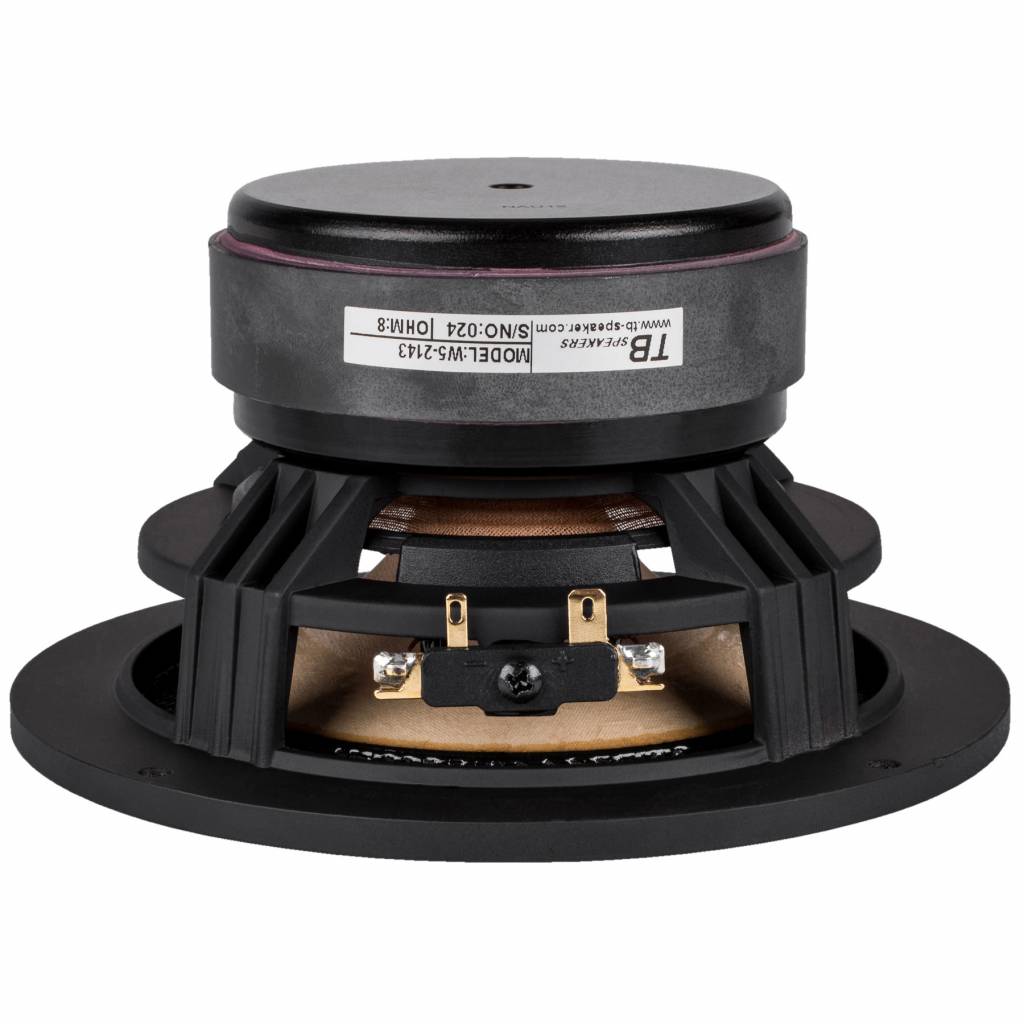

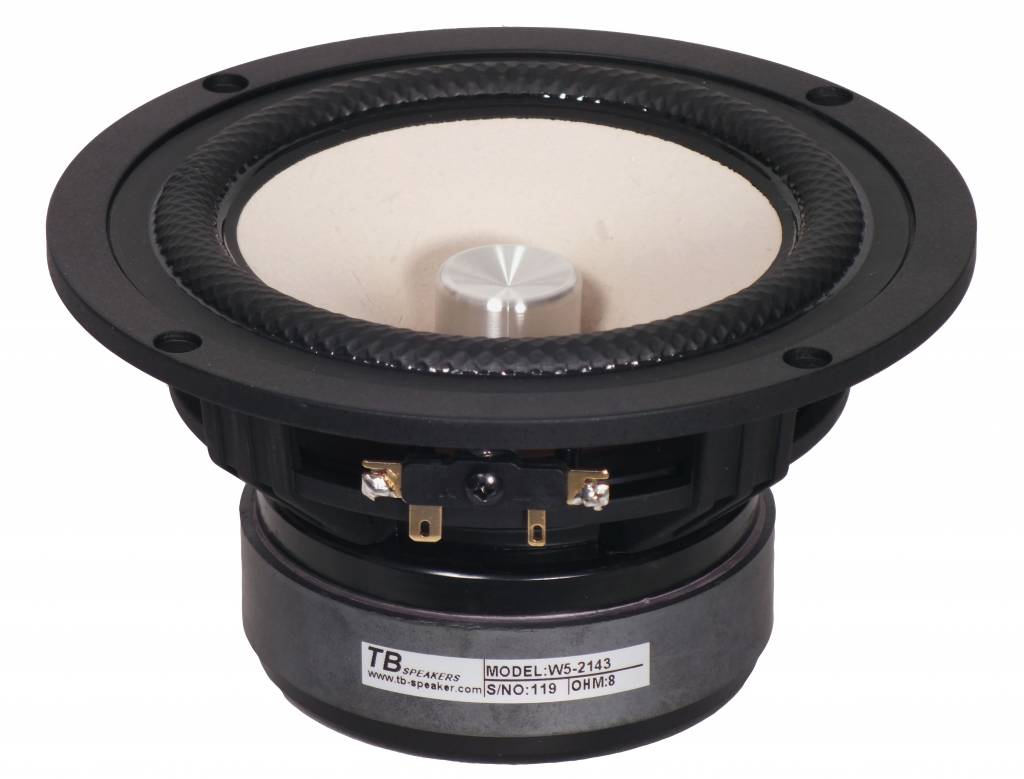

Tang Band W5-2143 Full-range Woofer

€139,95

6 Op voorraad

Toevoegen aan winkelwagen

Tang Band W5-2143 Full-range Woofer

Merk: Tang Band

Toon alle Full-range woofer

5" | 8 Ω

W5-2143 Full-range Woofer

W5-2143 Full-range Woofer

W5-2143 Full-range Woofer

W5-2143 Full-range Woofer

W5-2143 Full-range Woofer

W5-2143 Full-range Woofer

W5-2143 Full-range Woofer

W5-2143 Full-range Woofer

€ 139,⁹⁵ 6 Op voorraad

Gratis verzonden (NL & BE)
Nu besteld, dinsdag bezorgd
Ten minste twee jaar garantie
45 dagen bedenktijd voor retourneren

Klantbeoordeling:

Vergelijk

Zakelijke offerteaanvraag

Productomschrijving Tang Band W5-2143 Full-range Woofer

With a bamboo fiber paper cone, structured Santoprene surround, and underhung motor, the W5-2143 5" full range from Tang Band has impressive response from 55 to 20,000 with very low distortion.

Highlights

Aluminum phase plug also acts as a shorting ring for lower distortion
Underhung voice coil improves control for lower distortion
Impressive efficiency (90 dB 1W/1m) for a driver this small
Unique surround and large spider keeps cone linear well beyond the rated xmax

Product details

Tang Band W5-2143 5" Paper Cone Full Range Driver 8 Ohm

Tang Band's versatile W5-2143 full range driver uses an underhung voice coil, which places the entire coil inside the magnetic gap, for the utmost in control and accuracy. Designed for minimum distortion and resonance, the bamboo fiber paper cone and structured surround produces smooth response without harsh peaks or dips. The aluminum phase plug improves off axis response while also acting as a shorting ring providing greater control of the voice coil resulting in lower distortion.

Specificaties

Artikelnummer: W5-2143
EAN: 0848864023779
Woofer type: Full-range
Nominale diameter: 5"
Belastbaarheid (RMS): 30 Watts
Belastbaarheid (max): 60 Watts
Impedantie (Z): 8 ohms
Gevoeligheid (SPL bij 1m / 2.83V): 90 dB
Frequentierespons: 55 to 20,000 Hz
Spreekspoeldiameter: 1"
Gelijkstroomweerstand (Re): 6.3 ohms
Spreekspoelinductie (Le): 0.023 mH
Resonantiefrequentie (Fs): 55 Hz
Mechanische Q (Qms): 3.21
Elektrische Q (Qes): 0.43
Totale Q (Qts): 0.38
Bewegende massa (Mms): 5.99g
Compliantie van de ophanging (Cms): 1.398 mm/N
Effectief oppervlak (Sd): 97.83 cm²
Krachtsfactor (BL): 5.43 Tm
Equivalentvolume (Vas): 0.671 ft.³
Maximale excursie (Xmax): 2.5 mm
Cone / Diaphragm Material: Bamboo Fiber / Paper
Surroundmateriaal: Santoprene®
Spreekspoel draadmateriaal: Copper
Spreekspoel vormermateriaal: Kapton® / Polyimide
Mand- /framemateriaal: Cast Aluminum
Magneetmateriaal: Ferrite
Totale buitendiameter: 6.125"
Totale diepte: 3.34"
Montagegatdiameter: 4.84"
# Bevestigingsgaten: 4
Gesloten volume: 0.19 ft.³
Gesloten F3: 115 Hz
Gepoort volume: 0.46 ft.³
Gepoort F3: 64 Hz

Toon meer

Reviews

Schrijf een review

5 van 5

-

Door Vladimir on 17 April 2024

5 van 5

-

Door Ralf on 15 December 2022

5 van 5

Very nice driver for the money. Excellent vocal reproduction and overall frequency response. Sensitivy is nice and high so they don't take much driving. Distortion is quite low at around 1.5% peak THD in the low frequencies and much less in the mid-bass all the way to treble. I was expecting these drivers to have quite a hot top-end but to my surprise, they are actually quite flat. I think that may be due to these drivers being very directional a...

Toon meer

Door George on 4 September 2021

5 van 5

Just an amazing speaker. very clear spacious sounding. low/ high freq is really good. I play many tipes of music and pefrormance is realy good in my TL

Door KT on 25 Juni 2021

4 van 5

The speaker is quite curved in terms of frequency response (the middle bulges out a lot), this of course depends on the case, I used a spherical one. The rest of the parameters are ideal. After equalizing the frequency response in any program or chipboard, everything becomes ideal both by hearsay and in terms of parameters.

Door Andrey Rodin on 25 Juni 2021

5 van 5

very good sound, very clear mids, very low distortion, did test it and measure it in free air and in a bassreflex 20 liter box, logical this is not a boom box speaker but a very nice full range, one of the best i did hear in the 5" range

Door Jos Haas on 9 Februari 2021

5 van 5

eccellente!!!!

Door Alessandro T. on 6 November 2020

5 van 5

2 woofers works in one box as mono. Is possible to reach hi dynamic from this converters. flat characteristic correct nothing spectacular, small corrections can bring the deep.

Door Wojciech E. on 17 Augustus 2020

5 van 5

No description was given

Door Marcin K. on 1 Mei 2020

5 van 5

This is prabably the besta fullrange driver available with the frequency compensation from hobby hifi in the Merlin speaker.

Door Per K. on 13 September 2019

5 van 5

Smooth, detailed, and great drivers. I highly recommend these.

Door Dincer K. on 24 November 2018
