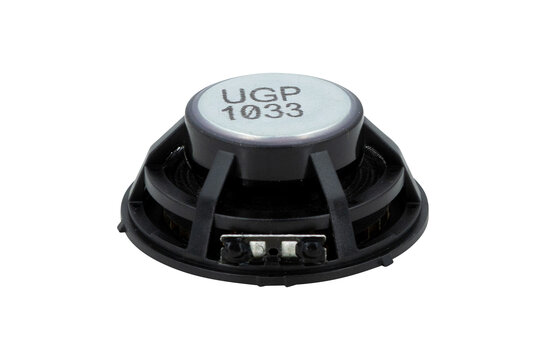

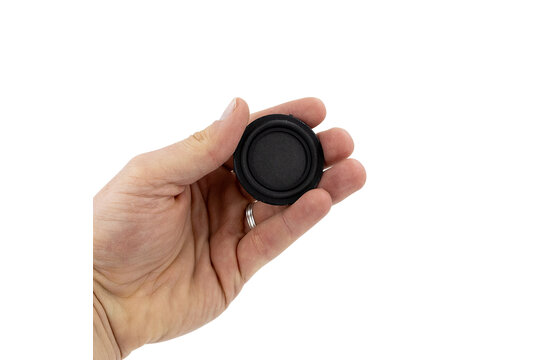

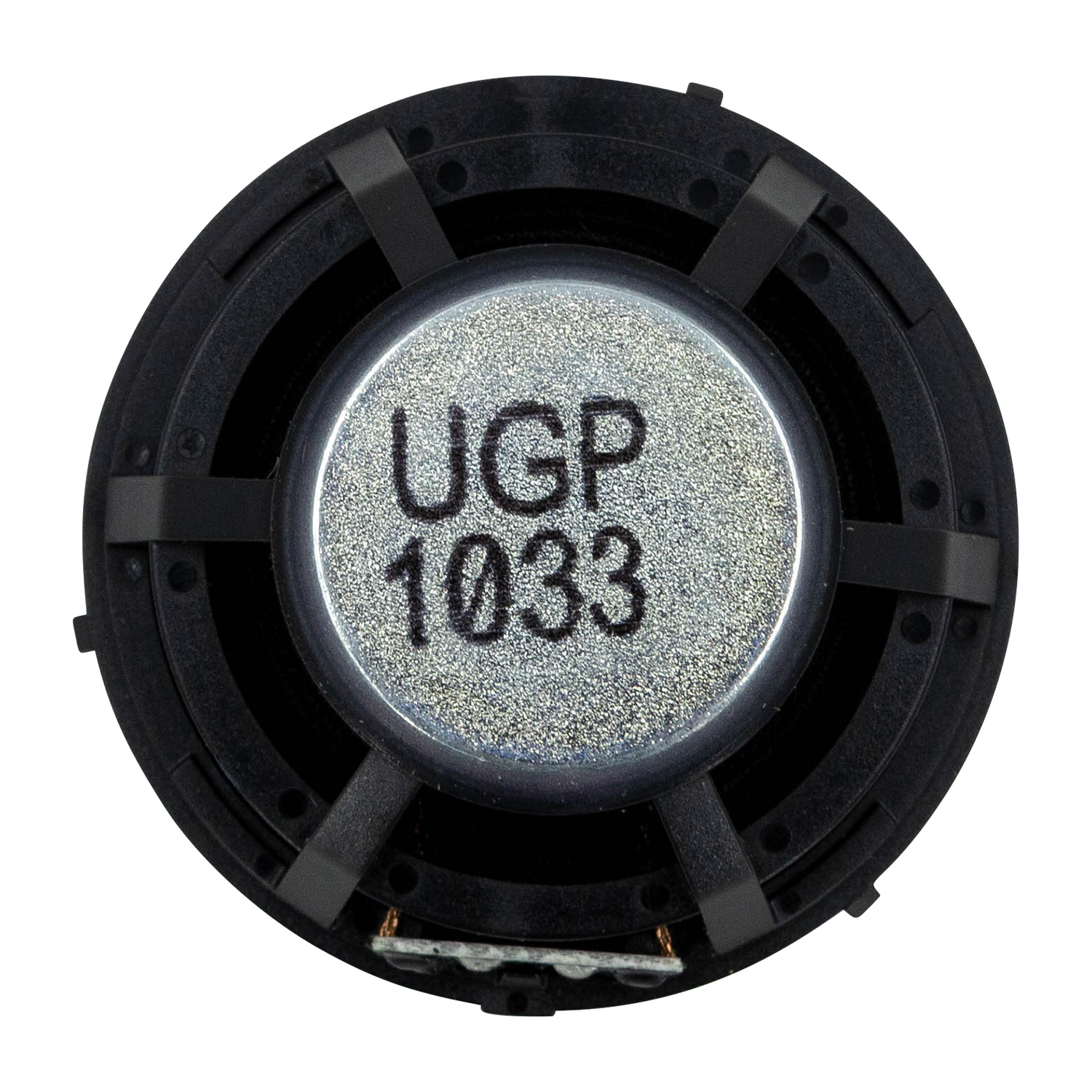

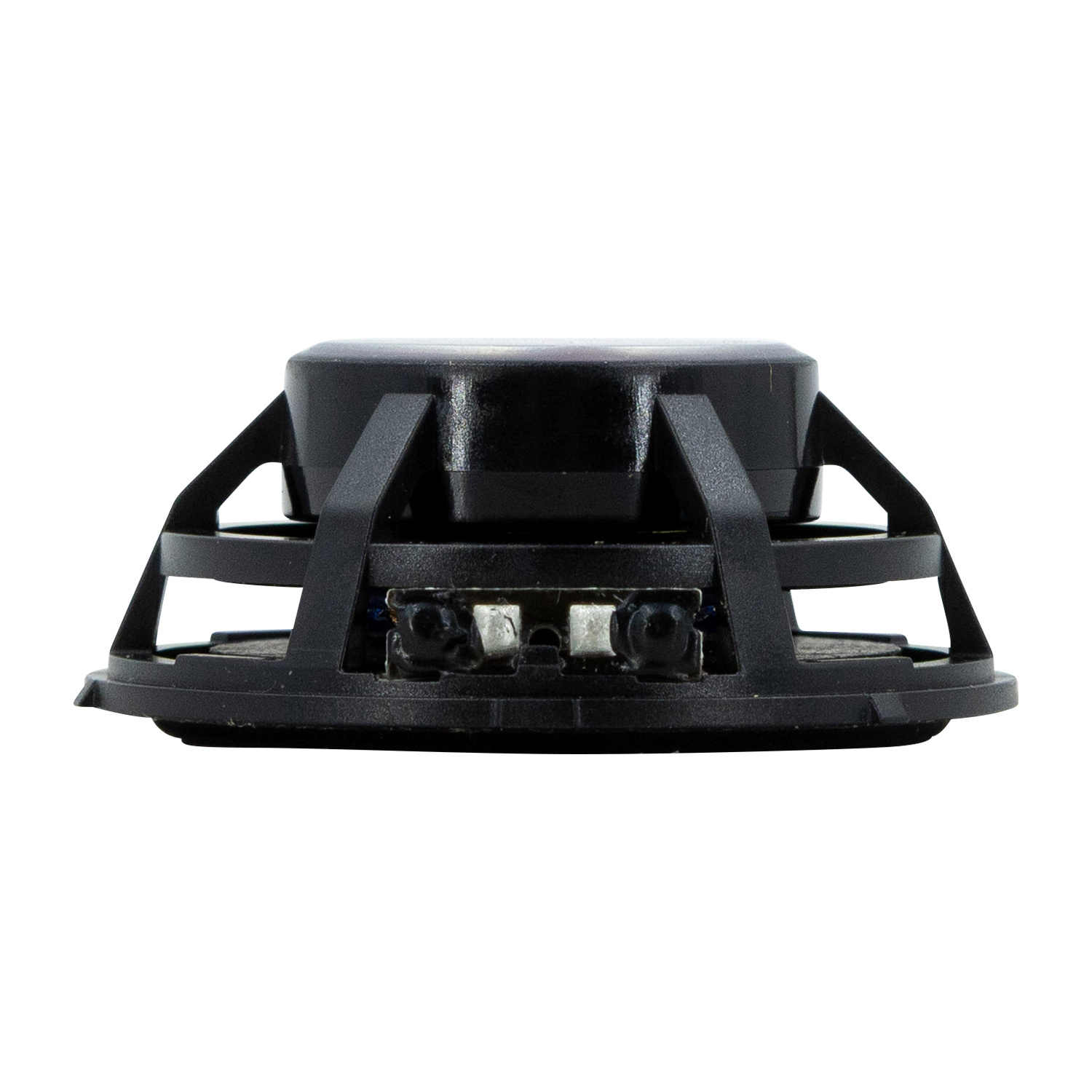

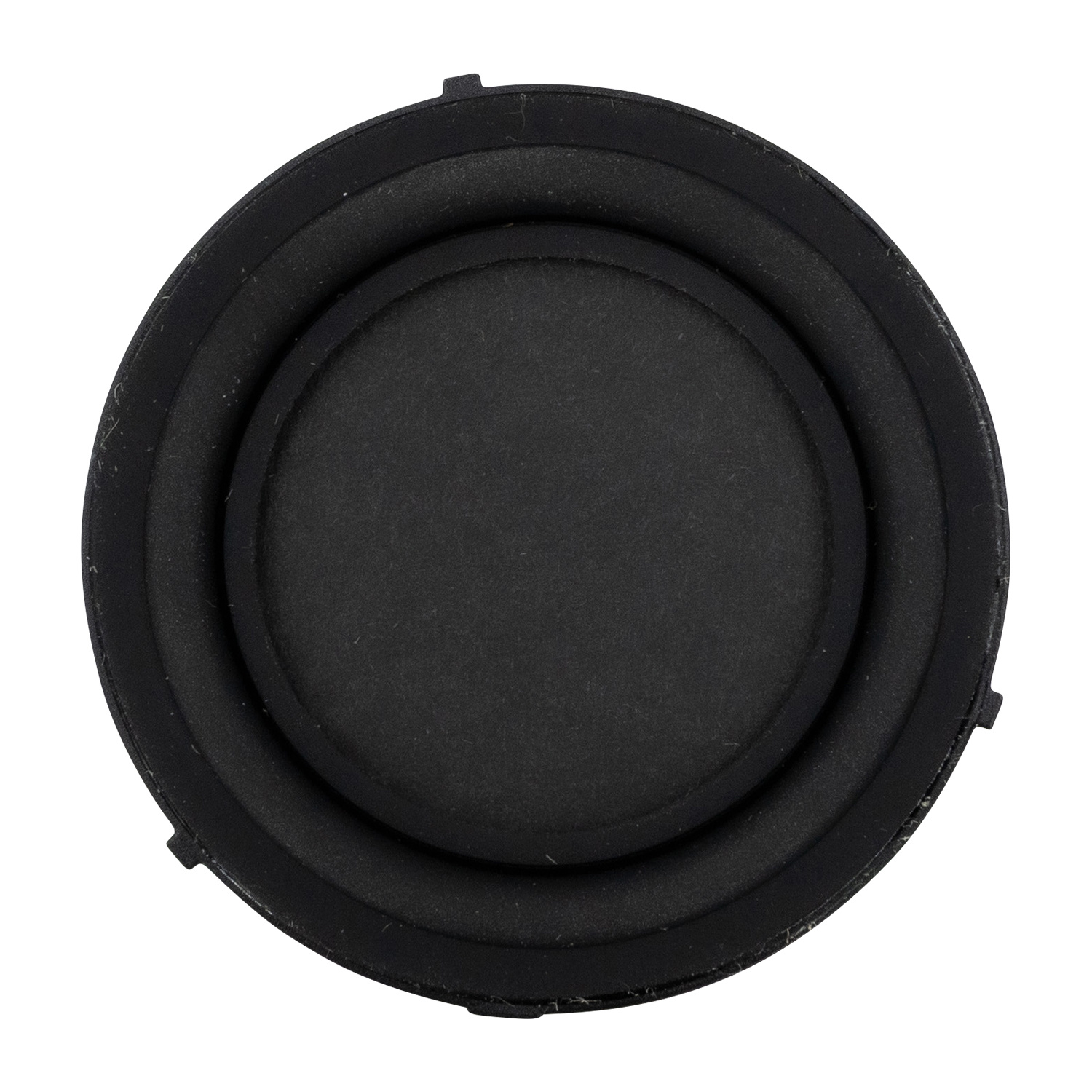

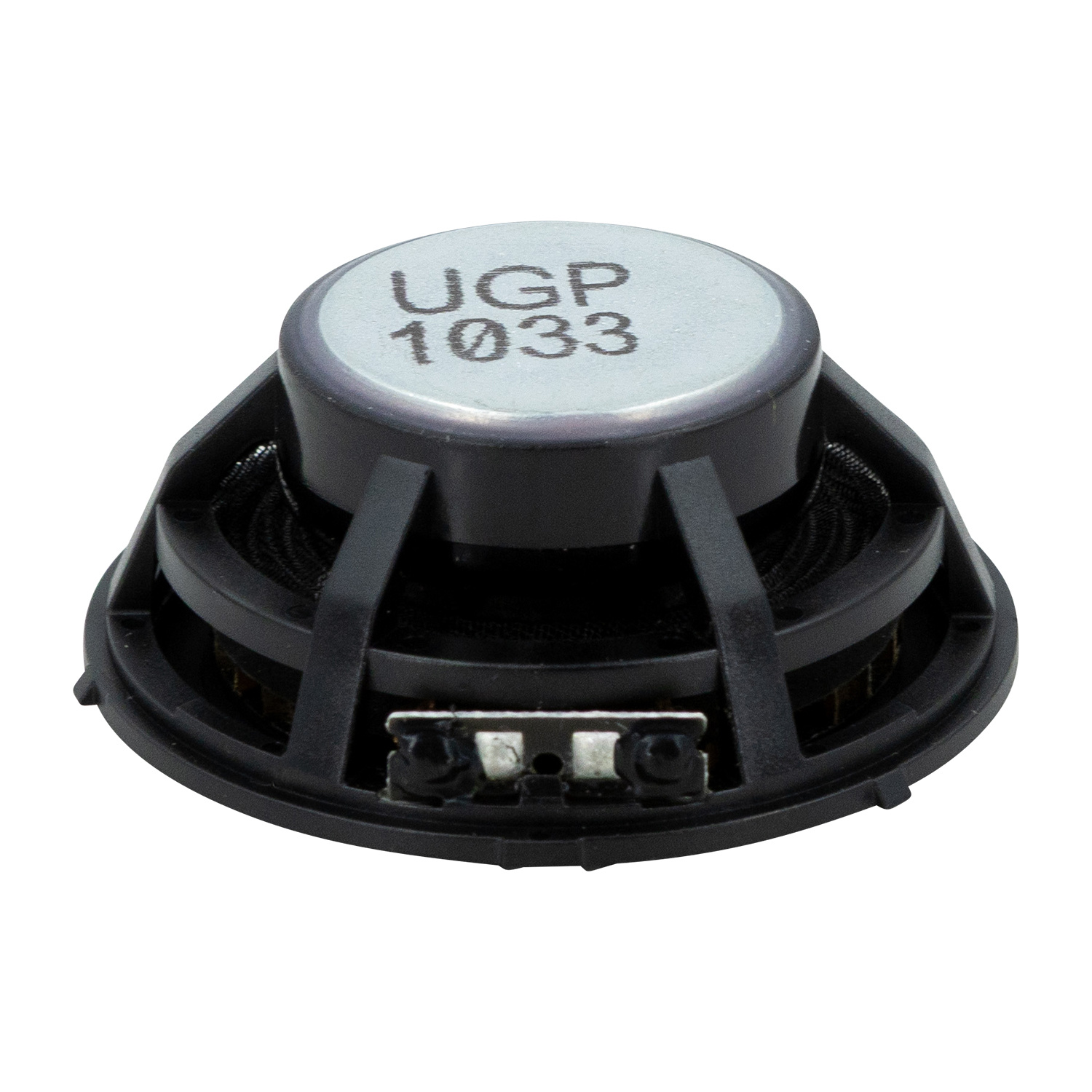

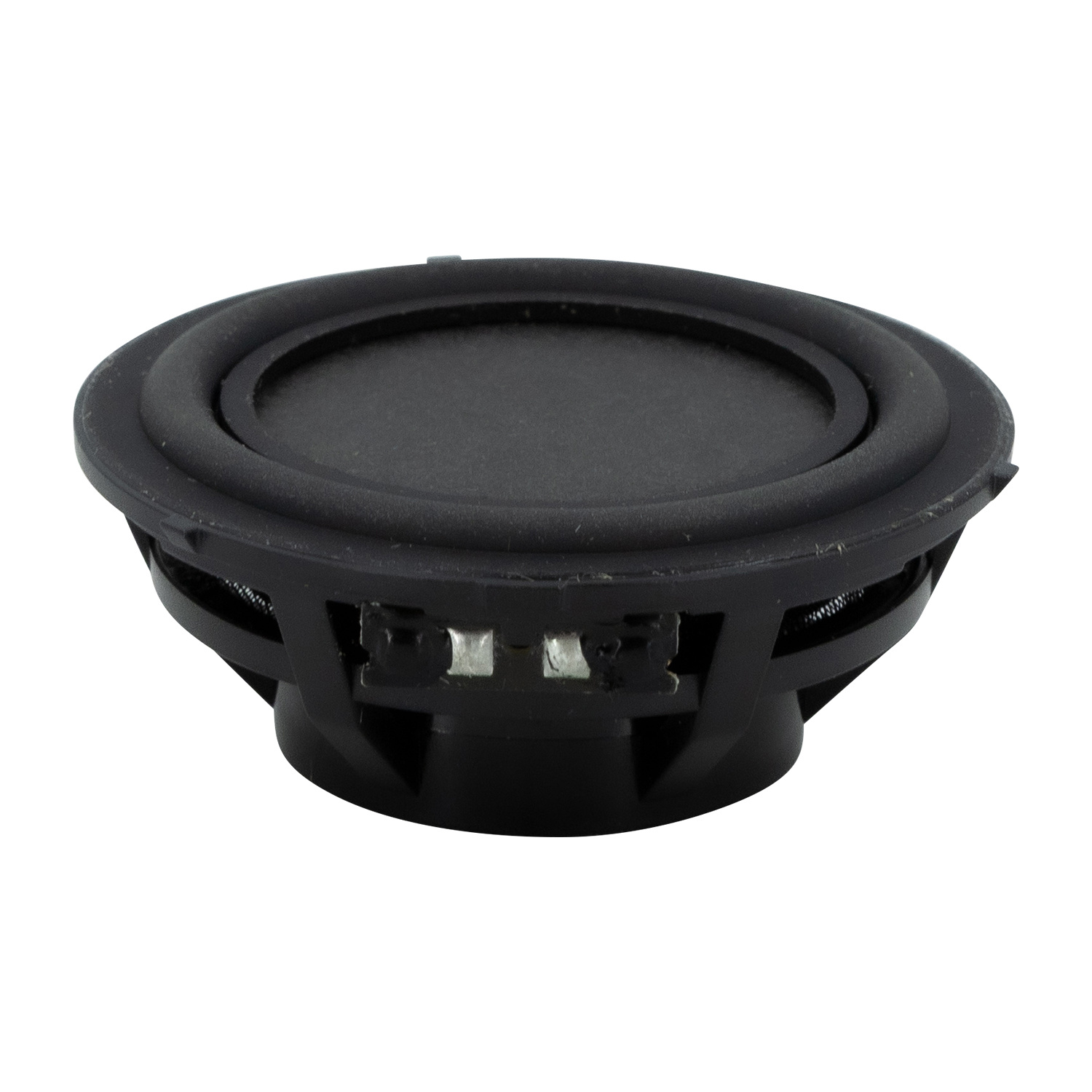

        TEBM35C02-6B BMR Full-Range Headphone Driver

        Tectonic Elements TEBM35C02-6B BMR Full-Range Headphone Driver

        €14,95

        4 Op voorraad

        Toevoegen aan winkelwagen

        Tectonic Elements TEBM35C02-6B BMR Full-Range Headphone Driver

        1 reviews
        5 van 5
        1 reviews
        5 sterren
        100%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: Tectonic Elements
        Toon alle Full-range woofer
        1" | 6 Ω

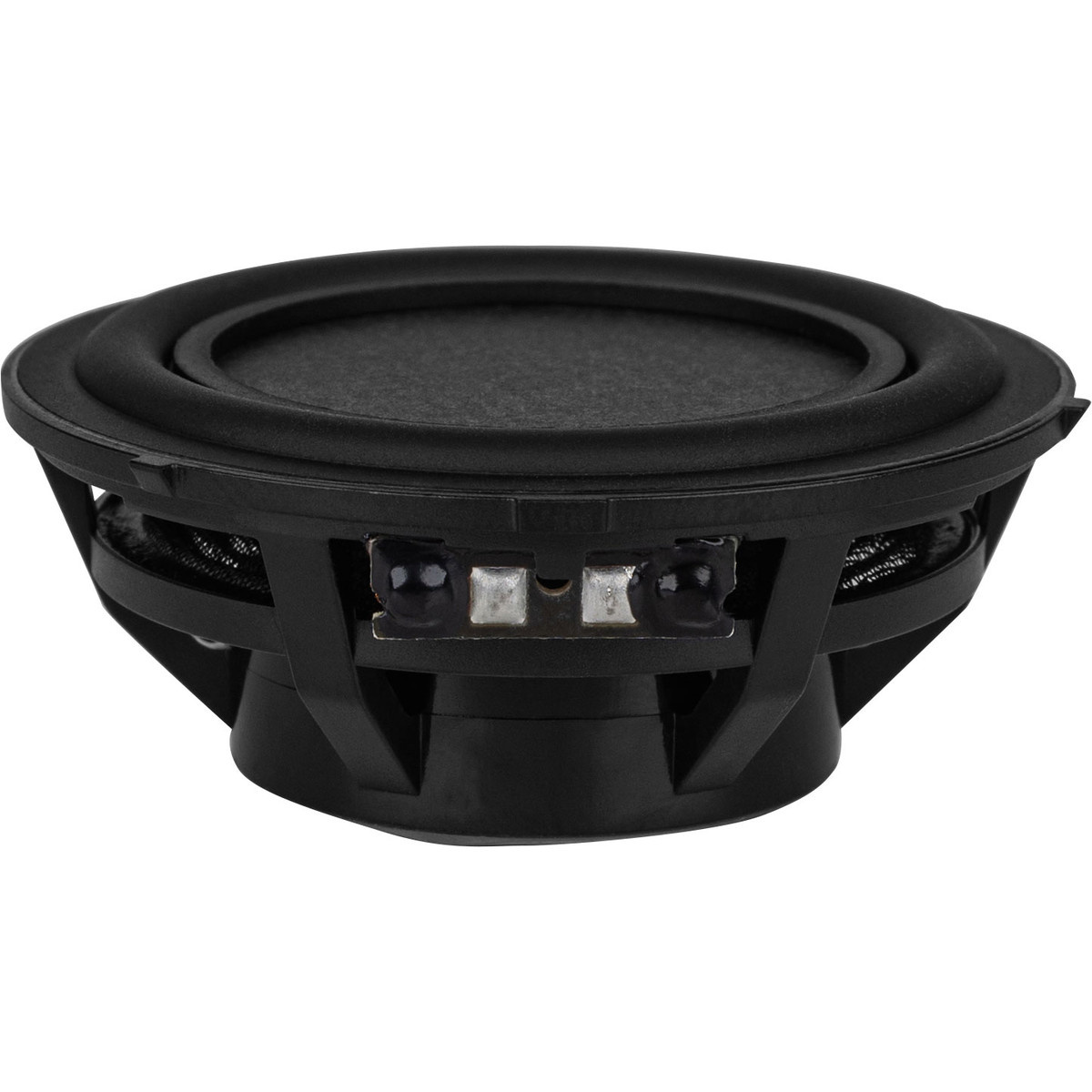

        TEBM35C02-6B BMR Full-Range Headphone Driver

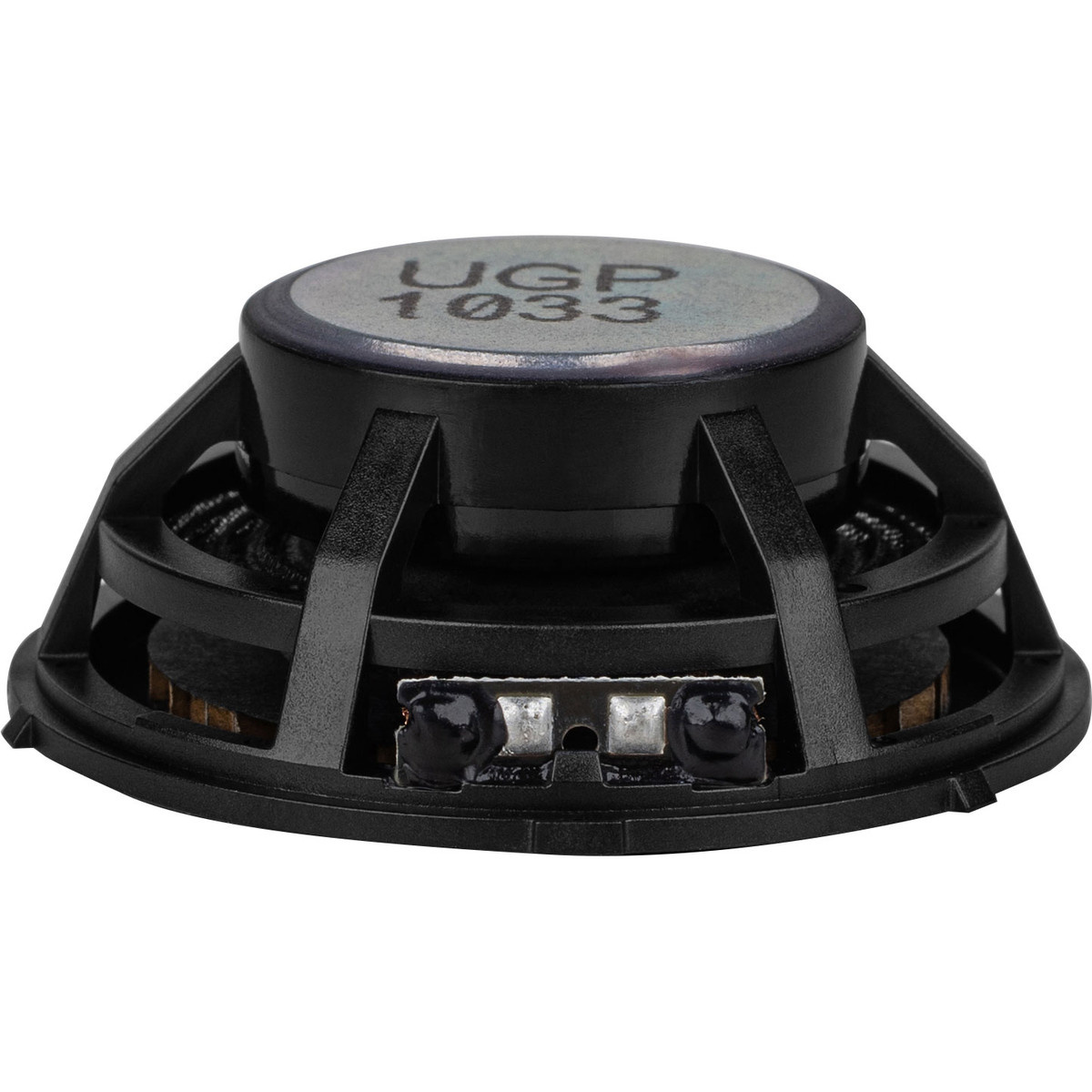

        TEBM35C02-6B BMR Full-Range Headphone Driver

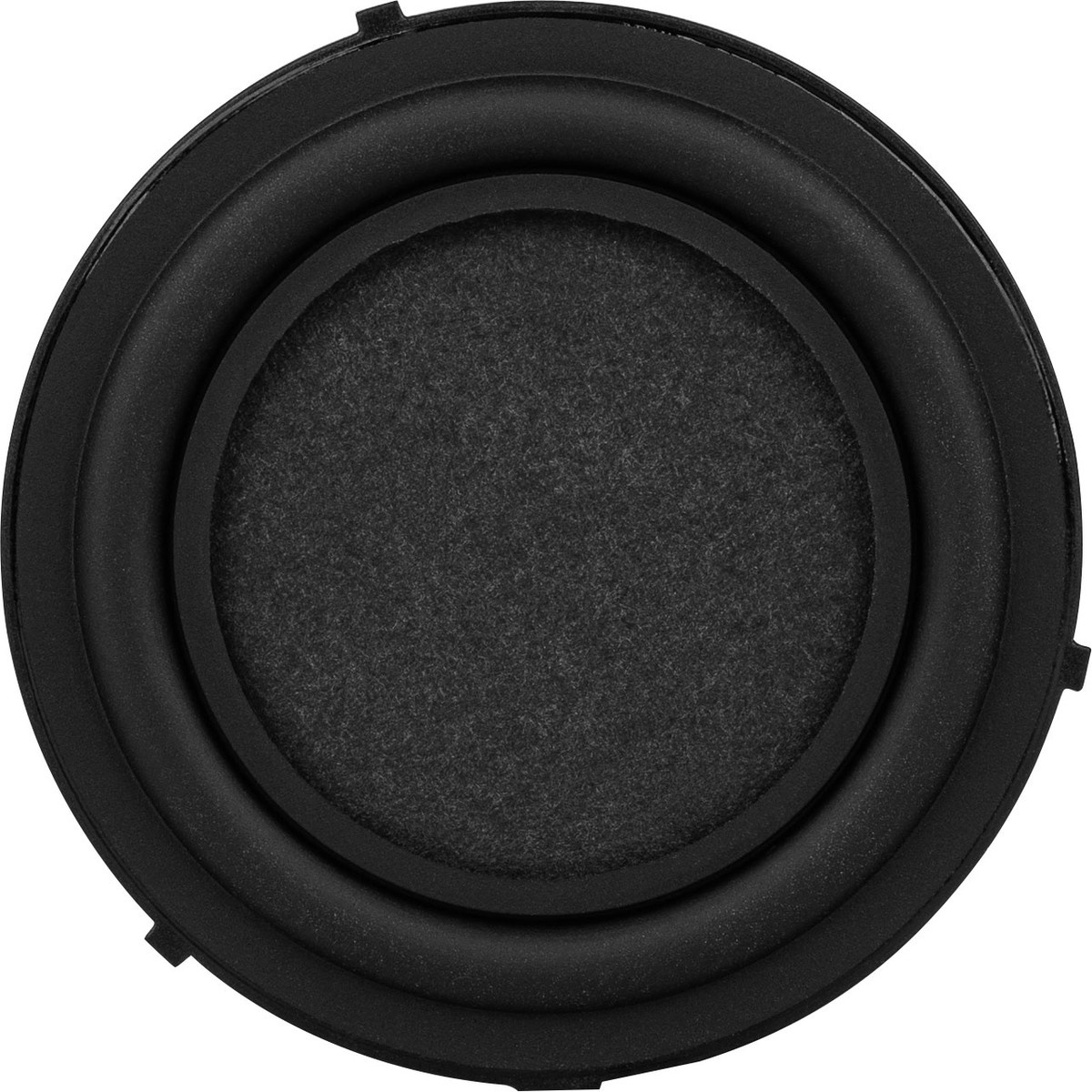

        TEBM35C02-6B BMR Full-Range Headphone Driver

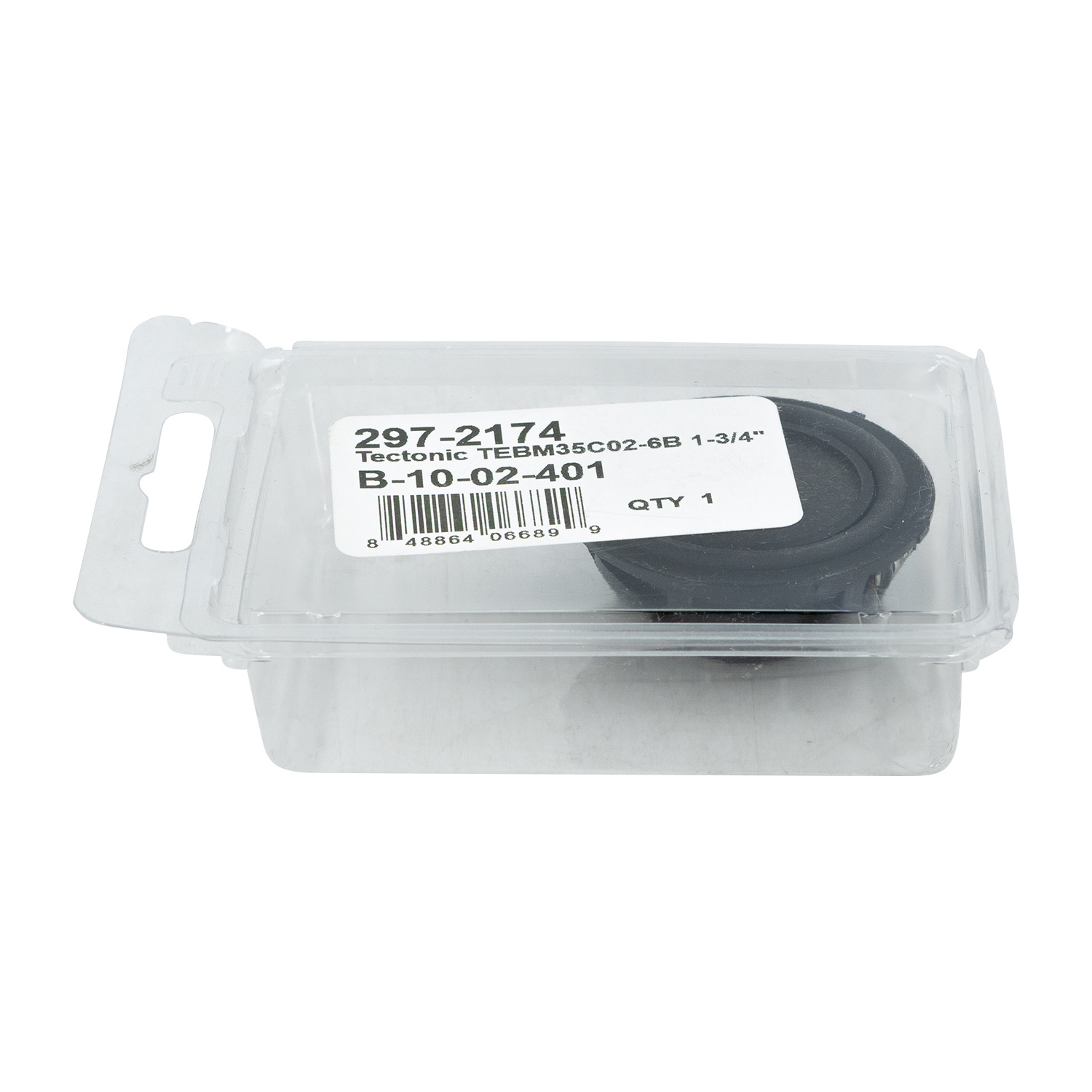

        TEBM35C02-6B BMR Full-Range Headphone Driver

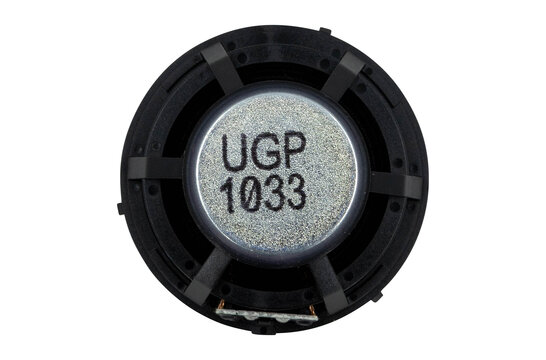

        TEBM35C02-6B BMR Full-Range Headphone Driver

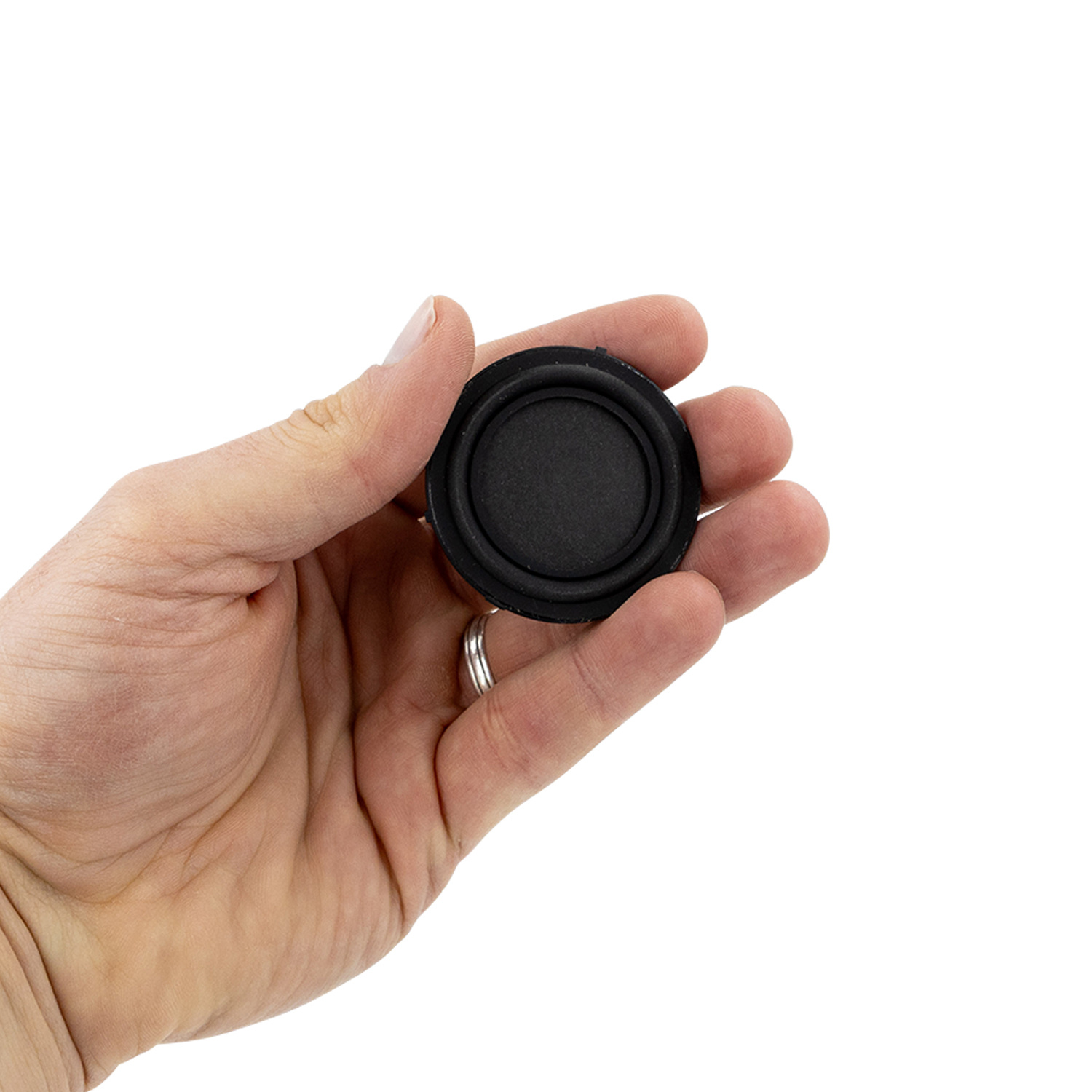

        TEBM35C02-6B BMR Full-Range Headphone Driver
        € 12,36€ 14,95 4 Op voorraad
        • -10% Bestel 4 voor slechts € 13,46 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Nu besteld, morgen bezorgd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

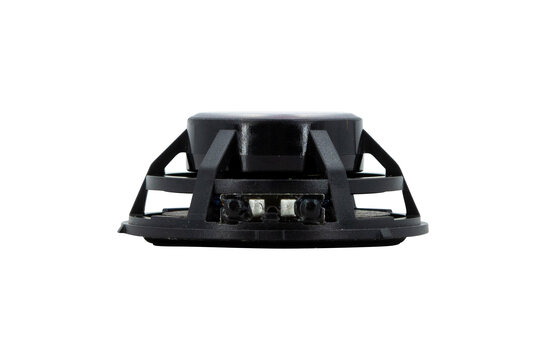

        TEBM35C02-6B BMR Full-Range Headphone Driver

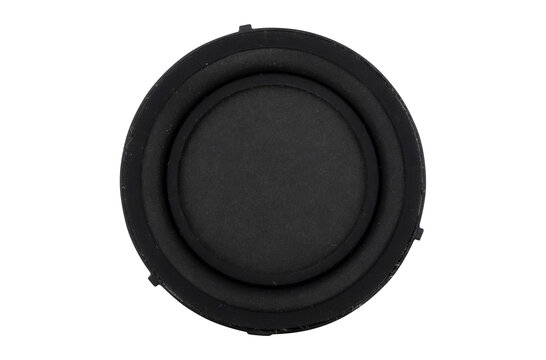

        TEBM35C02-6B BMR Full-Range Headphone Driver
        TEBM35C02-6B BMR Full-Range Headphone Driver
        TEBM35C02-6B BMR Full-Range Headphone Driver
        TEBM35C02-6B BMR Full-Range Headphone Driver
        TEBM35C02-6B BMR Full-Range Headphone Driver

        Productomschrijving Tectonic Elements TEBM35C02-6B BMR Full-Range Headphone Woofer

        Tectonic's TEBM35C02-6/B 1-3/4" full-range BMR driver is an audio drive unit with an extended frequency response and extremely wide dispersion. It combines the benefits of Tectonic bending-wave technology and pistonic modes of operation for remarkably wide bandwidth with unmatched off-axis response.



        Highlights

        • Ideal for use in off ear headphones for use in VR, gaming headsets, and helmets
        • Balanced Mode Radiation delivers unmatched off axis dispersion
        • Extended high frequency response to 35,000 Hz
        • High excursion allows excellent low frequency capability in near field applications
        • Shallow mounting depth for installation into almost any location



        Product Details

        Tectonic Elements TEBM35C02-6B 1-3/4" BMR Full-Range Headphone Driver 6 Ohms



        The compact TEBM35C02-6/B 1-3/4" full-range BMR driver from Tectonic is perfect for nearfield applications that require flat and extended response with extremely wide dispersion capability. Its unique capabilities make this driver perfect for open air headphones when physical contact with the ear must be avoided, such as VR systems, gaming headsets, call center headphones, helmets, and hardhats. The combination of pistonic and bending wave operation gives the TEBM35C02-6/B low distortion, extended bandwidth, and incredibly wide dispersion. In addition, this driver is also a great choice for use in extremely compact systems like computer speakers and ultra-compact portable Bluetooth systems.

        Toon meer

        Specificaties

        Artikelnummer
        TEBM35C02-6B
        EAN
        0848864066899
        Woofer type
        Full-Range Headphone Driver
        Nominale diameter
        1"
        Belastbaarheid (RMS)
        2 Watts
        Belastbaarheid (max)
        4 Watts
        Impedantie (Z)
        6Ω
        Gevoeligheid (SPL bij 1m / 2.83V)
        78.4 dB
        Frequentierespons
        100 to 35,000Hz
        Spreekspoeldiameter
        0.8"
        Gelijkstroomweerstand (Re)
        5.6Ω
        Spreekspoelinductie (Le)
        0.09mH
        Resonantiefrequentie (Fs)
        156 Hz
        Mechanische Q (Qms)
        4.37
        Elektrische Q (Qes)
        1.19
        Totale Q (Qts)
        0.93
        Bewegende massa (Mms)
        1.24g
        Compliantie van de ophanging (Cms)
        0.839mm/N
        Effectief oppervlak (Sd)
        11.04cm²
        Krachtsfactor (BL)
        2.39T·m
        Equivalentvolume (Vas)
        0.0057ft³
        Maximale excursie (Xmax)
        2.5 mm
        Cone / Diaphragm Material
        Paper
        Surroundmateriaal
        Rubber
        Mand- /framemateriaal
        Polymer
        Magneetmateriaal
        Neodymium
        Totale buitendiameter
        1.92"
        Totale diepte
        0.799"
        Montagegatdiameter
        1.86"
        # Bevestigingsgaten
        4
        Gesloten volume
        0.017ft³
        Gesloten F3
        147Hz
        Gepoort volume
        0.03ft³
        Gepoort F3
        89Hz

        Toon meer

        Reviews

        1 reviews
        Schrijf een review
        5 van 5

        Exquisite sound and just very good all around, perfect for VR! Well done Tectonic!

        Door NamBo on 3 Maart 2022
