        2 x 50W + 100W Class D 2.1 versterkermodule with Volume Controls - TPA3116D2

        2 x 50W + 100W Class D 2.1 versterkermodule with Volume Controls - TPA3116D2

        €31,45

        3 Op voorraad

        Toevoegen aan winkelwagen

        2 x 50W + 100W Class D 2.1 versterkermodule with Volume Controls - TPA3116D2

        2 reviews
        4 van 5
        2 reviews
        5 sterren
        50%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        50%
        1 ster
        0%
        Bekijk alle reviews
        Toon alle Versterker modules
        2 x 50 + 100 W
        2 x 50W + 100W Class D 2.1 versterkermodule with Volume Controls - TPA3116D2
        2 x 50W + 100W Class D 2.1 versterkermodule with Volume Controls - TPA3116D2
        2 x 50W + 100W Class D 2.1 versterkermodule with Volume Controls - TPA3116D2
        2 x 50W + 100W Class D 2.1 versterkermodule with Volume Controls - TPA3116D2
        2 x 50W + 100W Class D 2.1 versterkermodule with Volume Controls - TPA3116D2
        2 x 50W + 100W Class D 2.1 versterkermodule with Volume Controls - TPA3116D2
        € 25,99€ 31,45 3 Op voorraad
        • -5% Bestel 4 voor slechts € 29,88 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Nu besteld, dinsdag bezorgd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        2 x 50W + 100W Class D 2.1 versterkermodule with Volume Controls - TPA3116D2
        2 x 50W + 100W Class D 2.1 versterkermodule with Volume Controls - TPA3116D2
        2 x 50W + 100W Class D 2.1 versterkermodule with Volume Controls - TPA3116D2
        2 x 50W + 100W Class D 2.1 versterkermodule with Volume Controls - TPA3116D2
        2 x 50W + 100W Class D 2.1 versterkermodule with Volume Controls - TPA3116D2
        2 x 50W + 100W Class D 2.1 versterkermodule with Volume Controls - TPA3116D2

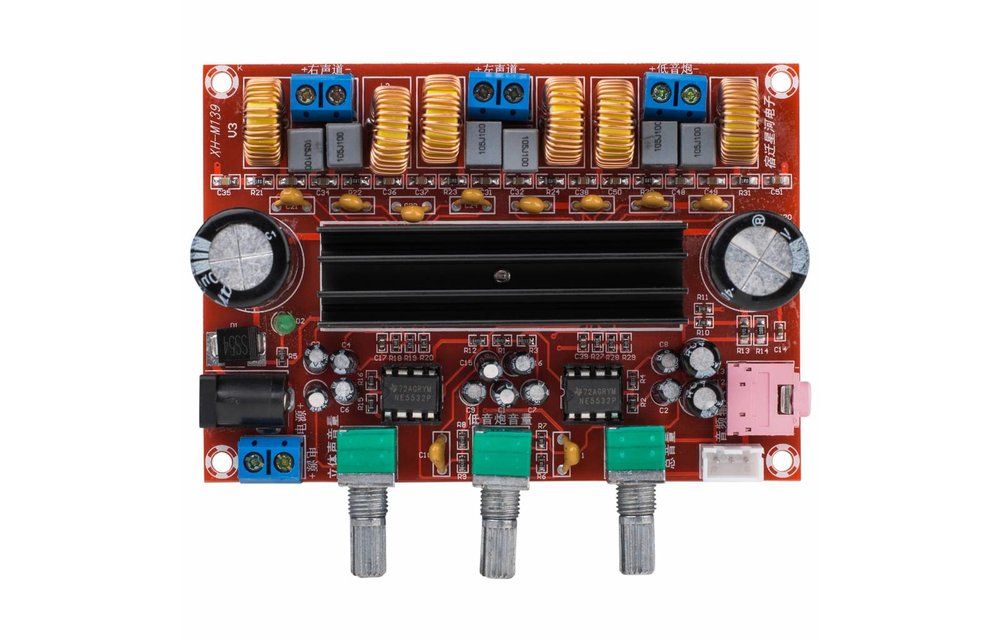

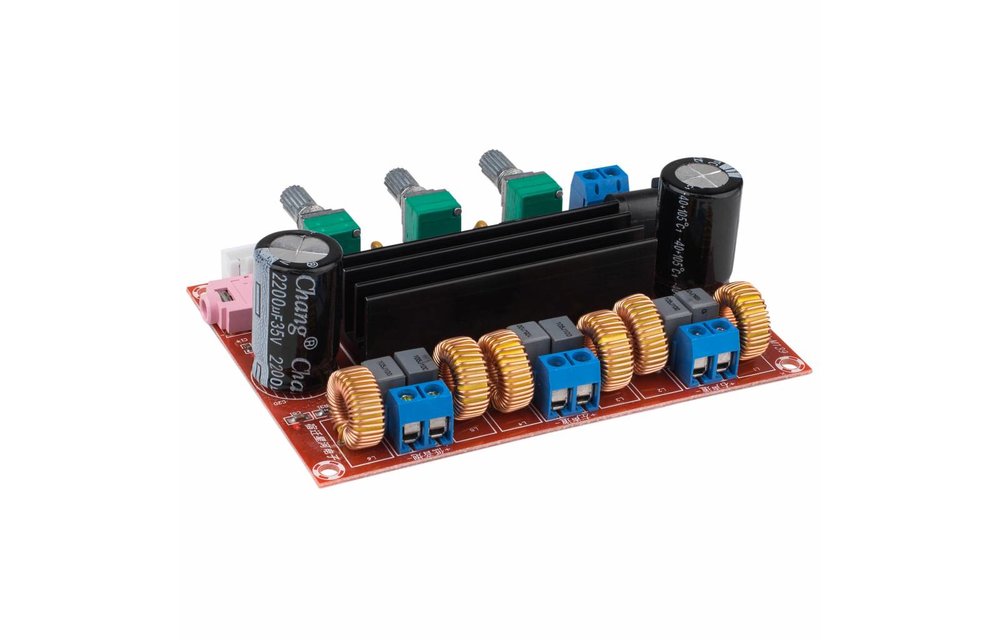

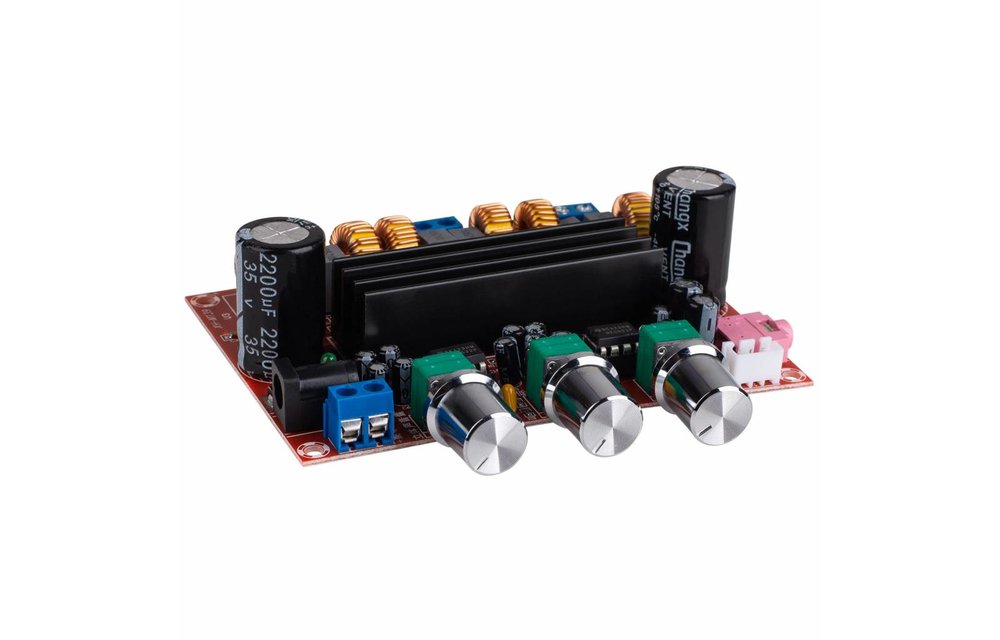

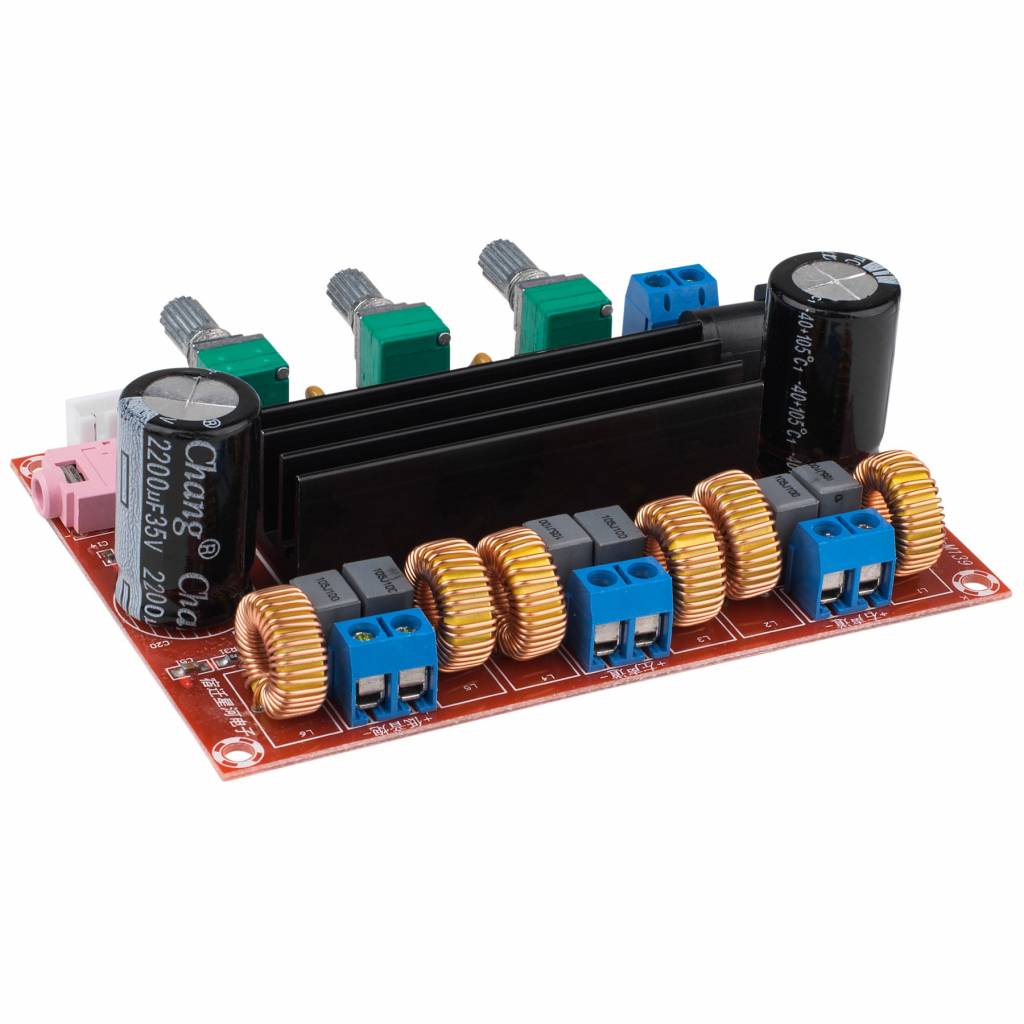

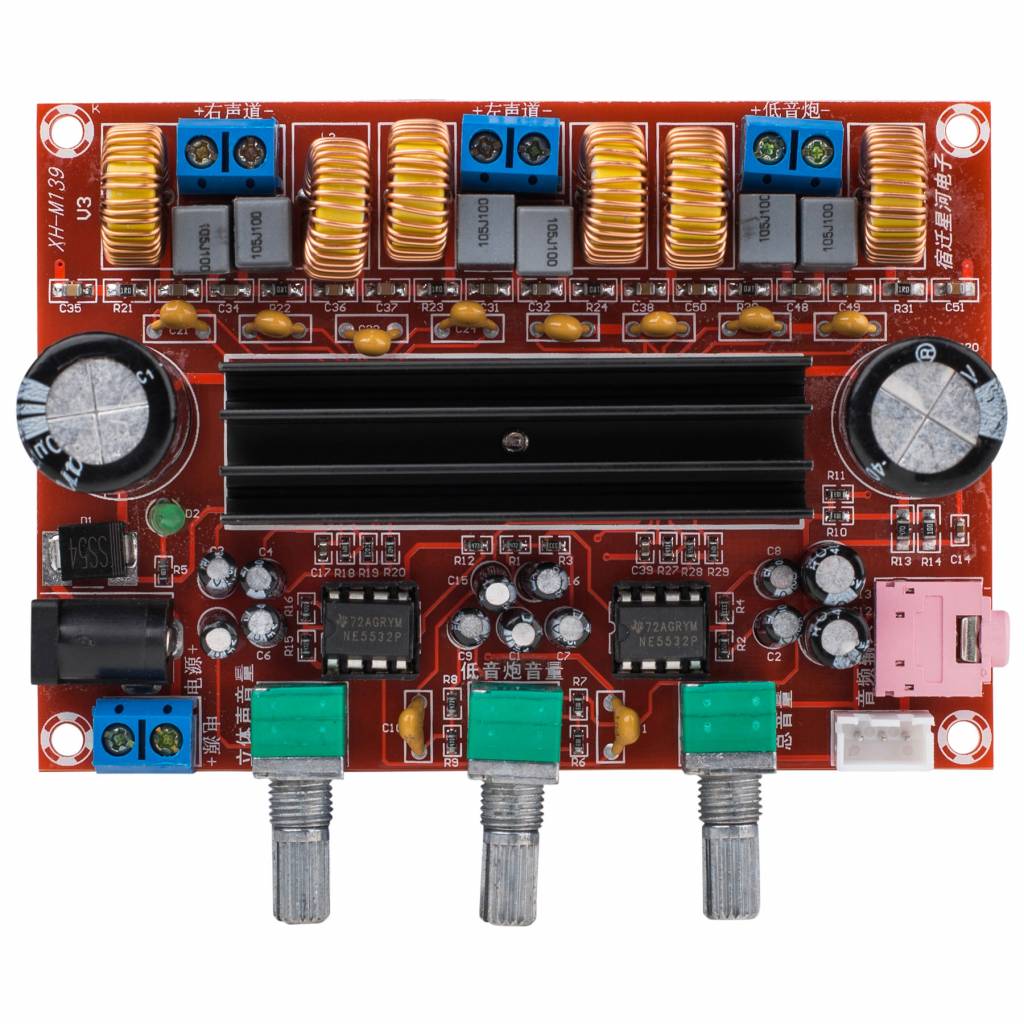

        Productomschrijving TPA3116D2.1 Versterkermodule

        This easy-to-use 2.1 amplifier board is big on power, delivering 50 watts into stereo channels and an additional 100 watts into a mono subwoofer channel. Use this board for multimedia sound systems, boom box projects, digital signage, or even mobile audio.



        Highlights

        • Class D efficiency in a compact size
        • Built-in volume, subwoofer, and satellite potentiometer for sound customization
        • 3.5 mm audio jack, 2.1 mm DC power jack, and phoenix speaker connectors for easy hook-up
        • Pre-assembled and pre-tested for easy project integration
        • 12 to 21 VDC for versatility
        • 2 x 50W plus 100W into a mono channel for 2.1 applications



        Product details

        This handy audio amplifier board has big power in a small package. Delivering 2 x 50W plus 100W into a mono channel, this 2.1 board makes it easy to add the bass you need to your next powered speaker project. Use this board in desktop multimedia powered speakers, or cool boom box applications. The tiny size makes implementation limitless and the easy-to-use 12 VDC power requirement makes it a great addition to any mobile audio project.

        These boards are pre-tested and pre-assembled, which makes your project easy to complete. The on-board jacks, potentiometers, and screw terminals mean you can get this board powered up and playing music in minutes. Just connect your power source using a 2.1 x 5.5 mm DC power plug, a 3.5 mm stereo audio source, and run speaker wire from the six screw terminals to you speakers and you are done. If you don't want to use the 3.5 mm jack, an optional 3-pin connector for internal line-in audio is available (wiring harnesses not included).

        Toon meer

        Specificaties

        Artikelnummer
        TPA3116D2.1
        EAN
        0848864051215
        Nominaal vermogen
        2 x 50 watt + 1 x 100 watt at 8 ohms
        Minimale belasting
        4 ohms
        Efficiëntie
        -
        Signaal-ruisverhouding (SNR)
        100 dB
        Vervorming
        -
        Frequentierespons
        14 - 100,000 Hz
        Versterkingsfactor
        -
        Ingangsgevoeligheid
        -
        Ingangsimpedantie
        -
        Amplifier Classification
        Class D
        Versterkertopologie
        Texax Instruments TPA3116
        Uitgangskanalen
        3
        Ingangsconnector
        3.5 mm stereo jack or 3-pin line-in socket
        Uitgangsconnector
        Screw terminals
        DSP-functionaliteit
        -
        Bluetooth
        -
        EQ-correctie
        Voedingsvereisten
        12 - 21 VDC
        Voedingsconnector
        DC jack (2.1 x 5.5 mm) or screw terminals
        Stroomlimiet
        -
        Onder-/overspanningsbeveiliging
        -
        Afmetingen (L x B x H)
        70,4 x 100,3 x 29,7 mm without potmeters (shaft length potmeters 15.3 mm)
        Afstand tussen bevestigingsgaten
        -
        Diameter bevestigingsgaten
        -

        Toon meer

        Reviews

        2 reviews
        Schrijf een review
        5 van 5
        Danke!!! Alles Super. Sehr gute produkt.
        Door Evgenios X. on 14 April 2020
        2 van 5
        Leuke versterkertje, maar red lange niet de 100 watt. Geen aanrader
        Door Mattia on 20 December 2019
