Hypex UcD400 Stereo amplifier kit

€449,95 €699,95

Out of stock

Add to cart

Hypex UcD400 Stereo amplifier kit

5 reviews

Brand: Hypex

Show all DIY kits

2 x 200 W

€ 699,95

€ 449,⁹⁵ Out of stock

Backorder

We ship to United States of America
Back in stock soon
Five-year warranty
45-day cooling-off period to return

Customer rating:

Compare

Request quotation

Product description Hypex UcD400 Stereo amplifier kit

Build your own high-performance stereo amplifier based on the UcD400HG HxR modules from Hypex.

Highlights

All-in-on stereo amplifier kit
Easy assembly and no soldering required
Detailed step-by-step instructions
Very low distortion over whole frequency range
Neutral and transparent reproduction
Small form factor

Product details

Hypex UcD400 2x200W Stereo Kit

The UcD technology is a high performance and reliable amplifier technology. The UcD amplifier modules stand out in our amplifier modules category, due to their unique circuit topology. They have a flat frequency response irrespective of load impedance, nearly frequency-independent distortion behavior and very low radiated and conducted EMI.

This kit contains everything you need to build your own UcD stereo amplifier. The main parts for this kit are two UcD400HG HxR amplifier modules, SMPS400A400 power supply and a black anodized aluminum case. The amplifier modules and power supply combination enable high and reliable performance from the UcD technology. The black anodized case provides good heat dissipation, protection and a small form factor.

Along the main parts, this kit includes everything else you need to build a powerful high-quality monoblock amplifier. Assembly is easy and only requires proper positioning of the modules, bolts to be tightened and connectors to be clicked. Anybody comfortable with a screwdriver can build this amazing stereo amplifier.

What’s In The Box

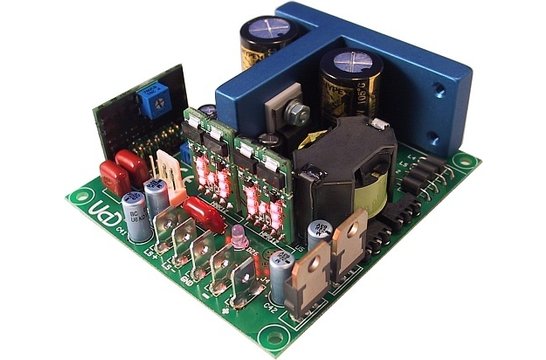

2x UcD400HG HxR amplifier module

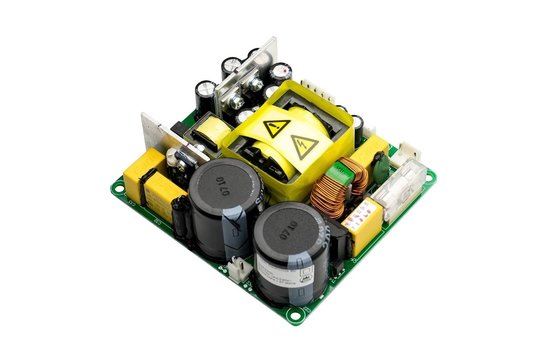

SMPS400A400 switch mode power supply

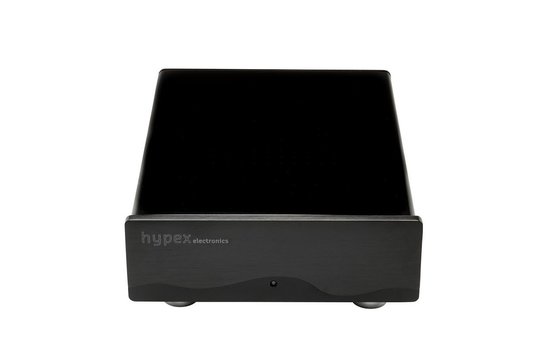

Aluminum enclosure
All internal cables
All needed mounting materials

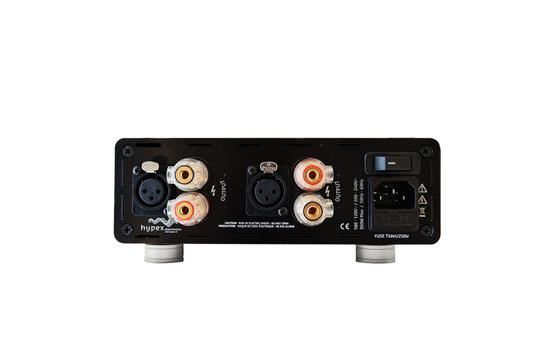

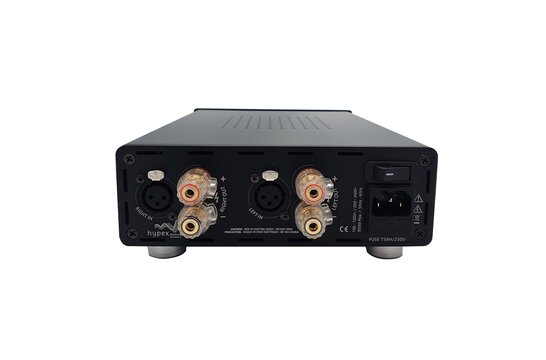

2x input XLR connectors
2x binding posts (pair)
On/Off Switch
IEC C14 power connector (including fuse)
IEC C13 power cable

FAQ

Q: I noticed the UcD180HG kit is (with 180 WPC) just a bit less powerful, why should I go for this UcD400 kit?

A: The UcD180 kit and UcD400 kit both use a 400 watt power supply. The two amplifier channels need to source from the same supply. If they have equal demands simultaneously, each module will indeed be limited to half of the power supply’s maximum capabilities. This results in a maximum output of 200 watt per channel. Because it is unlikely that both channels demand equal power at the same time -especially in active / bi-amp applications- The UcD400 kit has more headroom. More importantly: The UcD400HG HxR modules show better distortion performance overall compared to the UcD180HG HxR. Besides, because they are operated way below their limit their performance is even better.

Specifications

Article number: UcD400 stereo kit
EAN: 0691046950130
Rated power output: 2x 200 watts at 4 ohms
2x 200 watts at 8 ohms
Minimum load: 1 ohm
Efficiency: 92 %
Signal-to-noise ratio (SNR): -
Distortion: 0.01 % THD+N (20-20,000 Hz at 0.5 x rated power output)
Frequency response: 10 - 50,000 Hz
Gain: 26 dB
Input sensitivity: -
Input impedance: 100k ohms
Amplifier Classification: Class D
Circuit Topology: UcD®
Speaker output channels: 2
Input connection type: XLR
Speaker output connection type: Binding posts
DSP function: -
Bluetooth: -
EQ Adjustment: -
Power Requirements: 110 / 230 VAC (jumper selectable)
Power inlet connector: IEC C14
Current limit: 20 A
Under/over voltage protection
Dimensions (L x W x H): 280 x 200 x 78 mm
Mounting hole spacing: -
Mounting hole diameter: -

Reviews

5 reviews

Review this product

5 of 5

Super

By Andre on 10 January 2025

5 of 5

Pima versterker goede sound en geen ruis of bijgeluiden. Je merkt gelijk dat deze versterker zn werk op sloffen kan doen laag is ook op laag vollume goed aanwezig. De kit kwam zeer goed verpakt met een handleiding in jip en janneke taal ( veel plaatjes). Ook zonder electronika ervaring is deze versterker te bouwen. Alleen boutje moertje werk er komt geen soldeerbout bij kijken. Alle kabels zijn voorzien van stekkers en kabelschoentjes . Deze ver...

By Kor on 29 December 2022

5 of 5

La etapa suena impresionante, es muy rápida y detallada y no es para nada fría, de lo mejor que he probado y más por ese precio. Eso sí, se calienta casi como si fuese una etapa en clase a, cosa que parece un poco extraña para ser clase d, pero en el manual ya avisan de ello y según pone es normal. Respecto al montaje, es sencillo pero laborioso, a mi me llevo unas 3 horas y tuve algún problemilla pero nada serio. Está muy muy bien constr...

By Jose Pazos on 13 June 2022

4 of 5

Gutes Kit mit guter Qualität und guter Anleitung. Aber wird extrem heiß im Betrieb, dass man sich daran verbrennt! Wenn das Gehäuse schon 70°C+ erreicht, will ich gar nicht wissen, wie heiß die Platinen werden und was das über die Lebensdauer aussagt. Stromverbrauch im Idle liegt bei ca. 25 Watt.

By Constantin on 5 July 2021

5 of 5

Je hebt er een avondje (prettig) puzzelwerk aan waarbij je de boutjes, schoefjes en moertjes uit tig zakjes moet bij elkaar zoeken maar uiteindelijk heb ik (niet de meest handige en ook al geen ervaring) de versterker netjes in elkaar gekregen. Deze morgen de spanning erop en sindsdien is-ie aan het spelen tot mijn grote tevredenheid. Getest als power-amp na mijn Naim Atom dreef hij mijn vloerstaanders zonder (hoorbare) vervorming tot de pijng...

By Jo on 26 February 2021
